Imperial (Middleby)  |  SKU: ICB-4836

Imperial (Middleby) ICB-4836 Gas Charbroilers

$11,192.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Parts list Owner's manual Warranty sheet
Related Searches
Charbroilers & Grills Gas Charbroilers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

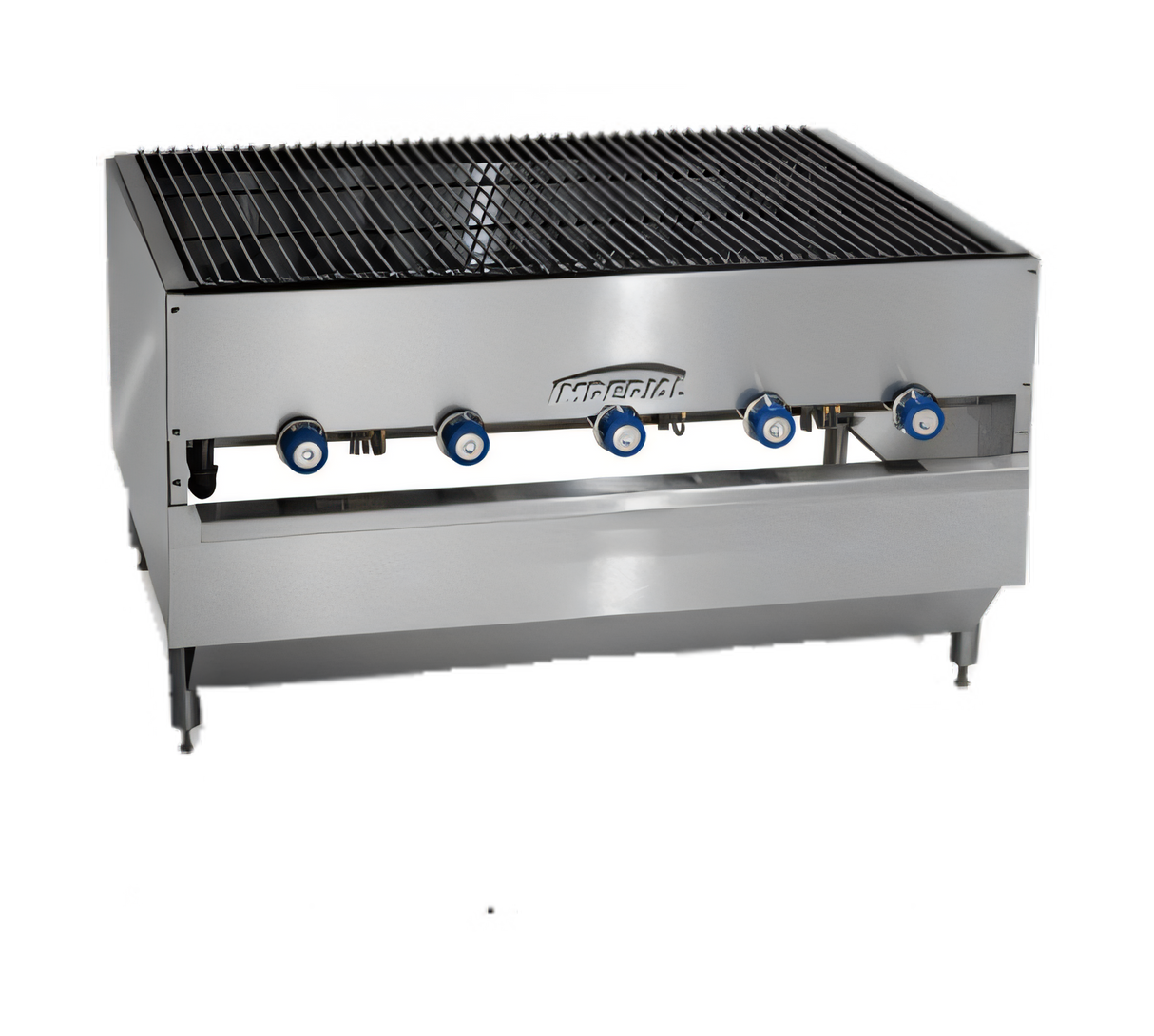

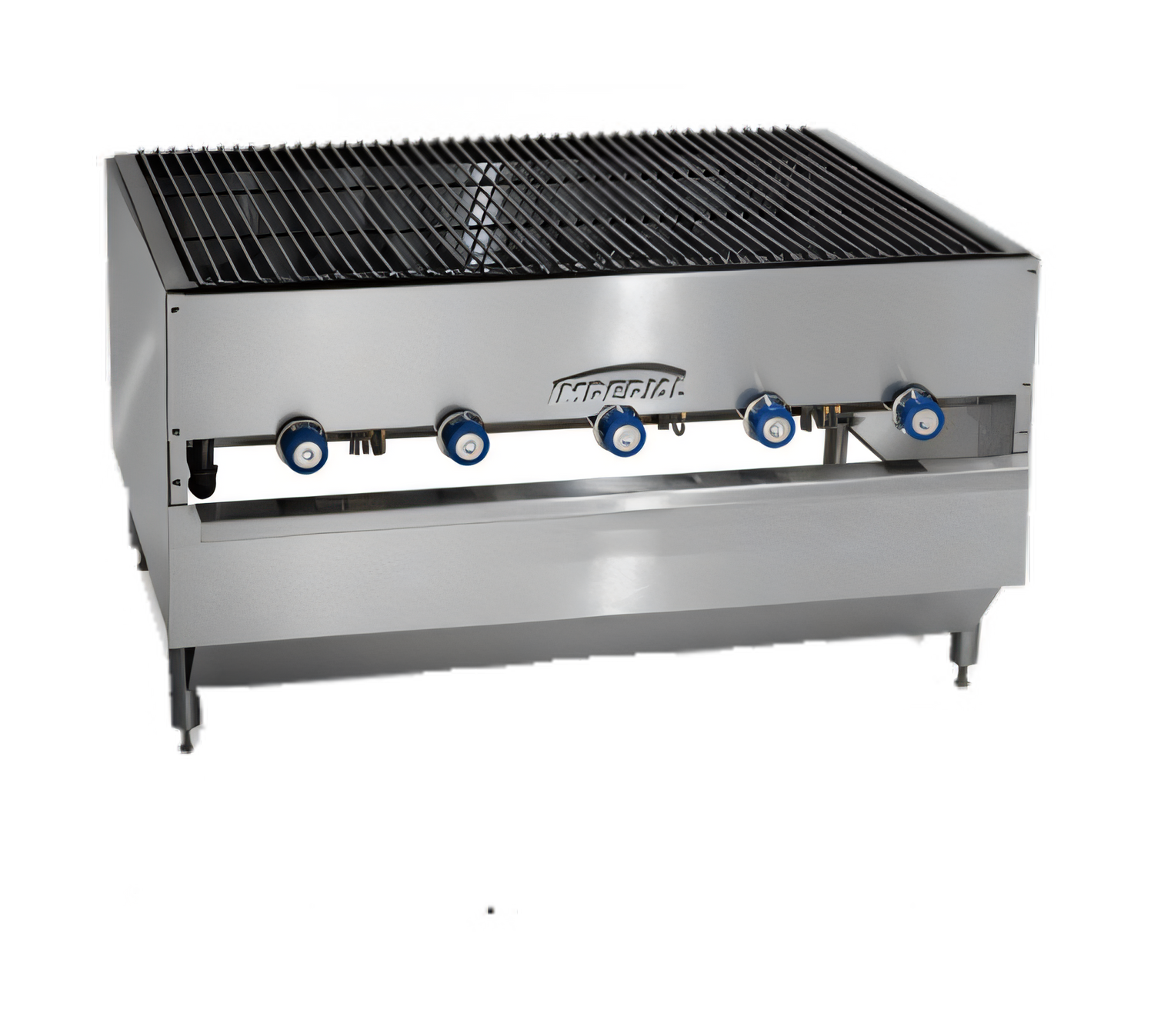

Imperial ICB-4836 Gas Chicken Charbroiler – 48" x 36"

Countertop, 5-burner, 250,000 BTU powerhouse

Engineered for high-volume kitchens, the Imperial ICB-4836 flames through peak rushes with five 50,000 BTU stainless-steel burners and a chicken-specific, non-stick round-rod grate that handles up to 15 three-pound birds at once. Built entirely of heavy-gauge stainless steel, this countertop broiler delivers the rugged durability, easy cleanup and consistent performance today’s busiest operations demand.

Key advantages
  • High production: 250,000 BTU total output with rapid heat recovery.
  • Non-stick round-rod grate designed specifically for chicken; removes without tools.
  • Extra-large 48" × 36" cooking surface fits 15 three-lb birds in a single load.
  • Stainless-steel front, sides and landing ledge with welded, polished seams for quick wipe-downs.
  • Die-cast metal control knobs stand up to daily abuse.
  • 6" stainless legs with adjustable feet keep the unit level on any countertop.
  • NSF & cETLus listed and backed by a 1-year parts & labor warranty.
Specifications
Model ICB-4836
Type Countertop gas chicken charbroiler
Total Heat Output 250,000 BTU / 73 kW
Burners 5 stainless-steel tube burners (50,000 BTU each)
Cooking Surface 48" W × 36" D (1219 × 914 mm)
Grate Non-stick round rod, removable without tools
Overall Dimensions 48" W × 36" D × 22" H (1219 × 914 × 559 mm)
Gas Connection 3/4" NPT, rear manifold
Manifold Pressure Natural 5" W.C.  |  LP 10" W.C.
Legs 6" stainless legs with adjustable feet
Shipping Weight 395 lb / 179 kg
Certifications NSF, cETLus
Warranty 1-year parts & labor
Optional accessories
  • Stainless-steel equipment stand
  • 6" casters for equipment stand
  • Stainless-steel drip tray
  • Stainless-steel removable heat deflector
Installation note: Legs or an equipment stand are required on non-combustible surfaces. Provide 0" clearance to non-combustible and 8" (203 mm) to combustible surfaces. All gas connections must be performed by a licensed technician in accordance with local codes.

Looking for even more capacity? Ask us about Imperial’s 60" models.

Features & Specs

Manufacturer

Imperial (Middleby)

Certifications

NSF, cETLus

Height

22.0in

Width

48.0in

Depth

36.0in

Shipping Weight

395.0lbs

Depth (front - back)

36"

Type

countertop

Width (side - side) OA

48"

Grid

round rod

Exterior Finish

stainless steel front & sides

Base

optional

Specifications

Chicken Charbroiler, gas, countertop, 48"W x 36"D, (5) stainless steel burners, non-stick round rod grates, stainless steel front, sides & landing ledge, 6" legs with adjustable feet, 250,000 BTU, 73kW, NSF, cETLus
