Imperial (Middleby)

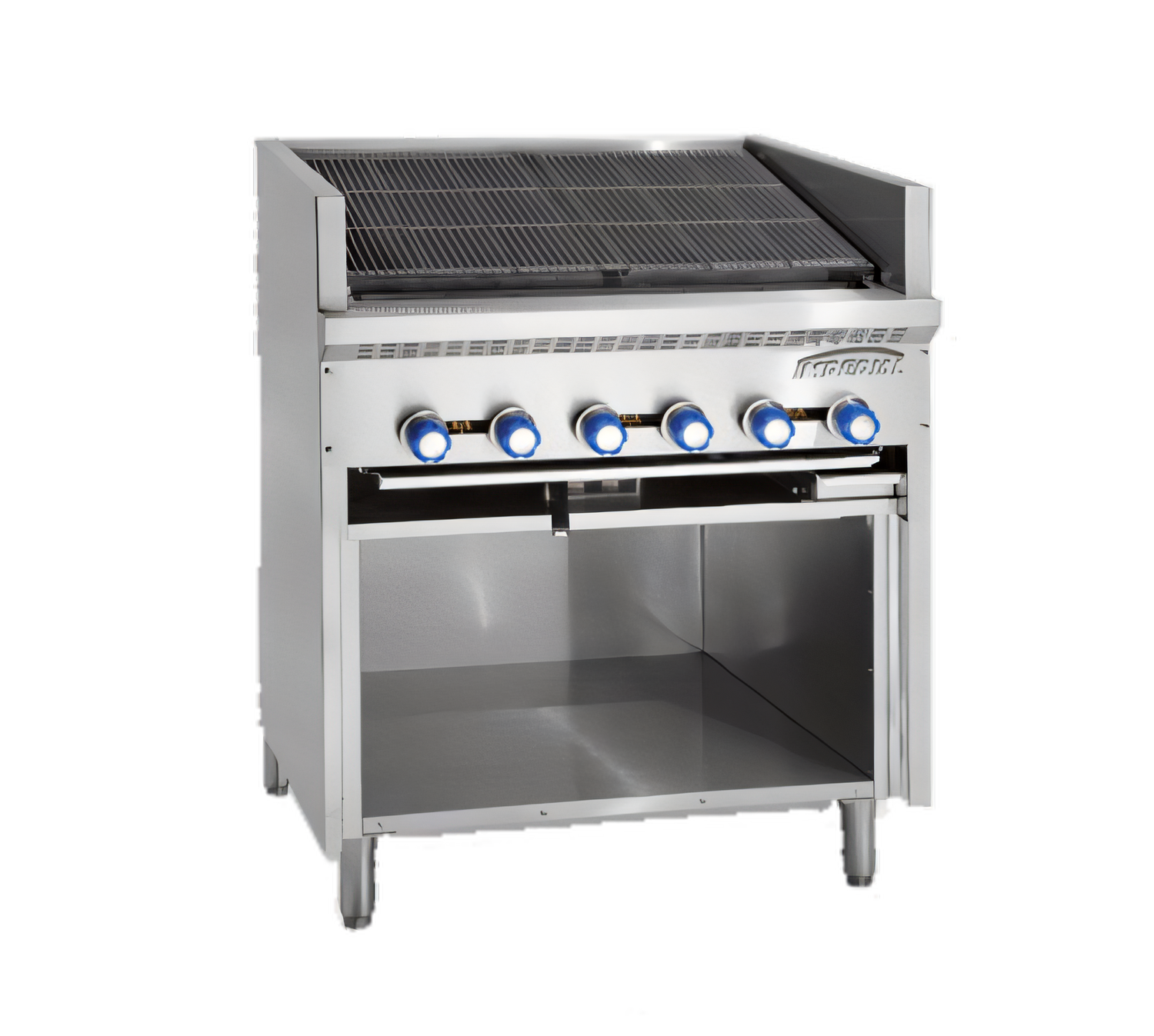

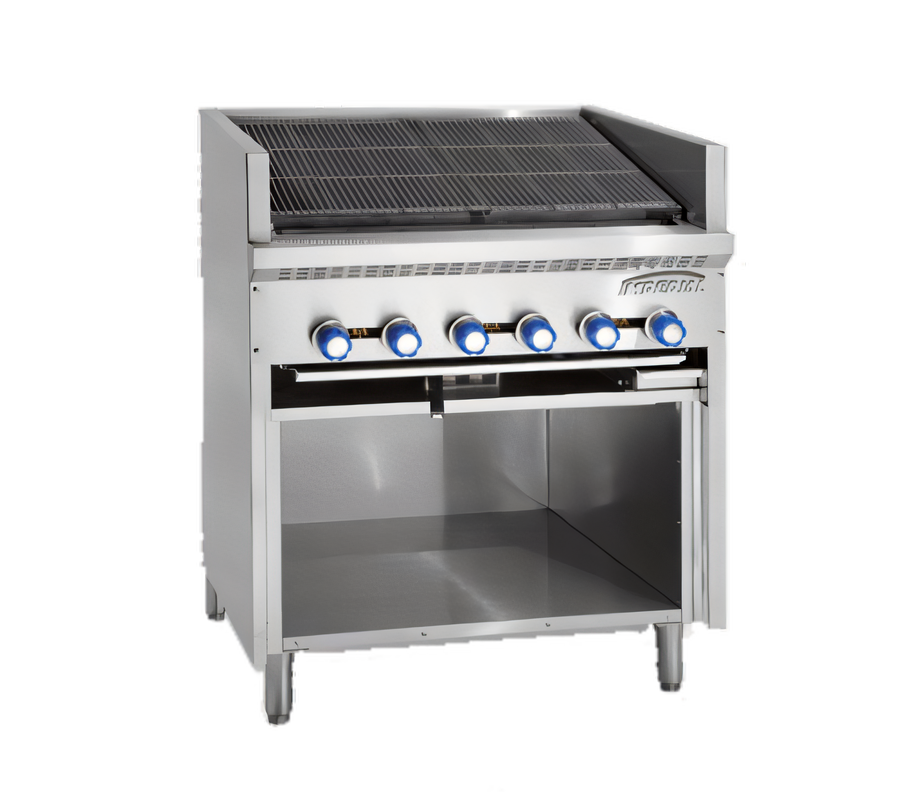

Steakhouse 60-Inch Gas Floor Model Radiant Charbroiler with Open Cabinet Base

SKU: IABF-60
$15,237.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Charbroilers Charbroilers & Grills Commercial Grills Gas Charbroilers Imperial (Middleby) New Arrivals Restaurant Equipment

Steakhouse 60-Inch Gas Floor Model Radiant Charbroiler with Open Cabinet Base

10 Individually Controlled Burners, Cast Iron Slanted Grates, 200,000 BTU

Built for high-volume broiling, this 60-inch gas charbroiler pairs 10 individually controlled radiant burners with slanted cast iron grates for strong heat control and easy cleanup.

  • 60-inch floor model charbroiler designed for demanding commercial kitchens.
  • 10 individually controlled radiant burners deliver a total of 200,000 BTU.
  • Three-position slanted cast iron grates create multiple heat zones for versatile cooking.
  • Full-width grease gutter and removable 3-inch grease can help manage drippings.
  • Stainless steel front, sides, cabinet base, and landing ledge offer durability and a professional look.
  • Open cabinet base and 6-inch legs support floor installation and service access.

Overall Dimensions:

60.0"W x 28.5"D x 42.0"H

Product Weight:

615.0 lb

Ten Individually Controlled Burners

Ten 20,000 BTU/hr stainless steel burners are spaced every 6 inches and controlled individually for precise heat management.

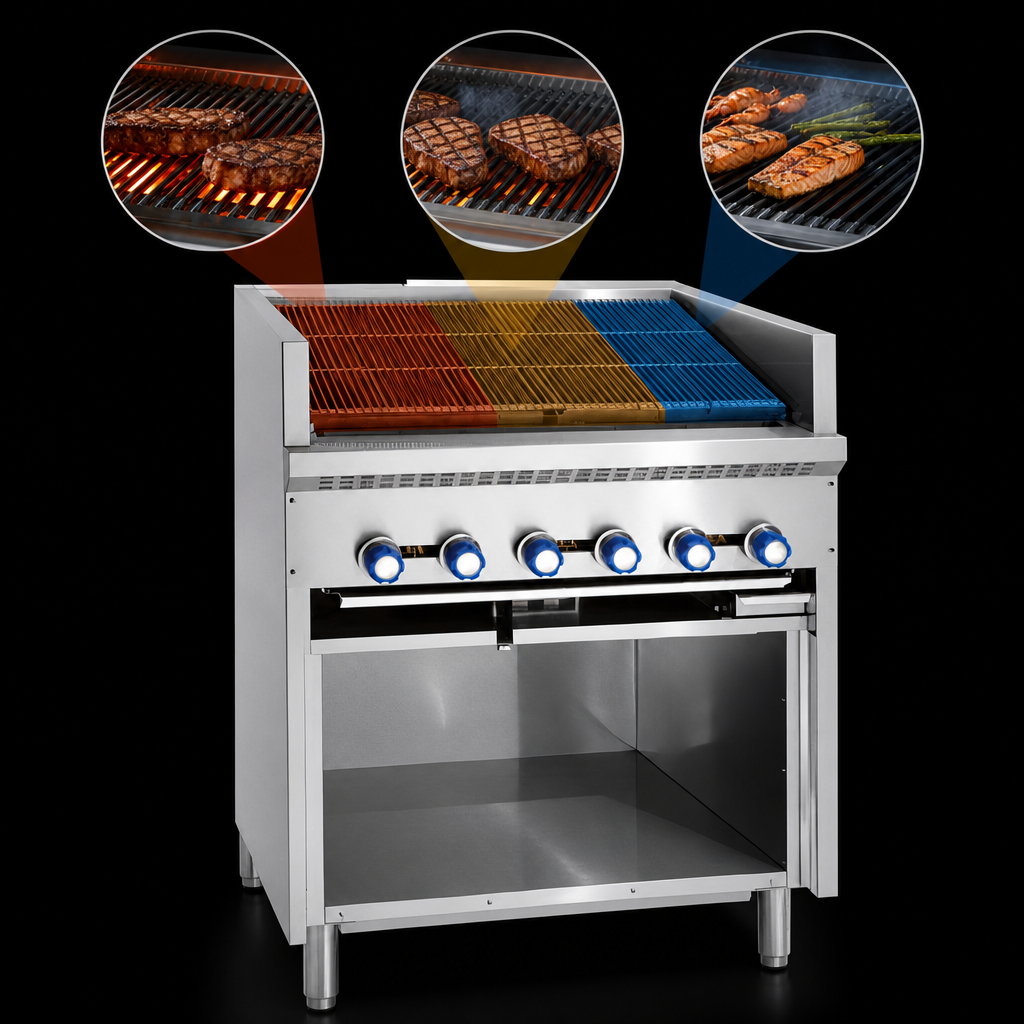

Three-Position Slanted Cast Iron Grates

The top grates create three heat zones and a slanted cooking surface for a wide range of cooking temperatures.

Full-Width Grease Management System

A full-width grease gutter and 3-inch removable grease can help collect drippings and simplify cleanup.

Stainless Steel Exterior Construction

Stainless steel front, sides, cabinet base, and landing ledge provide durability, cleanability, and a professional appearance.

Tool-Free Cleaning Design

Top grates, radiant covers, and burners can be removed without tools for easier cleaning and service.

Insulated Cooktop

Insulation throughout the cooktop helps conserve energy during operation.

Type Charbroiler
Installation Type Floor Model
Base Open Cabinet Base
Heat Source Radiant
Burners 10
Grate Type Adjustable Tilt Cast Iron
Controls Manual
BTU 200,000 BTU
Watts 59 kW
Gas Connection Size 3/4 Inch
Gas Inlet Pressure 5.0 Inches W.C. Natural Gas / 10.0 Inches W.C. Propane
Material Stainless Steel
Shipping Width 60 Inches
Shipping Depth 29 Inches
Shipping Height 42 Inches
Shipping Weight 615 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Training video PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has 10 individually controlled 20,000 BTU/hr burners.
The standard top grates are three-position cast iron slanted grates.
The manifold pressure is 5.0 inches W.C. for natural gas and 10.0 inches W.C. for propane.
It is for use only on non-combustible floors. Provide 0 inches clearance from non-combustible surfaces and 8 inches from combustible surfaces; 2 inches overhang is required when curb mounted.
The unit includes a 1-year parts and labor limited warranty.
