Imperial Steakhouse 36-Inch Gas Floor Model Charbroiler

SKU: IABF-36
$10,966.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

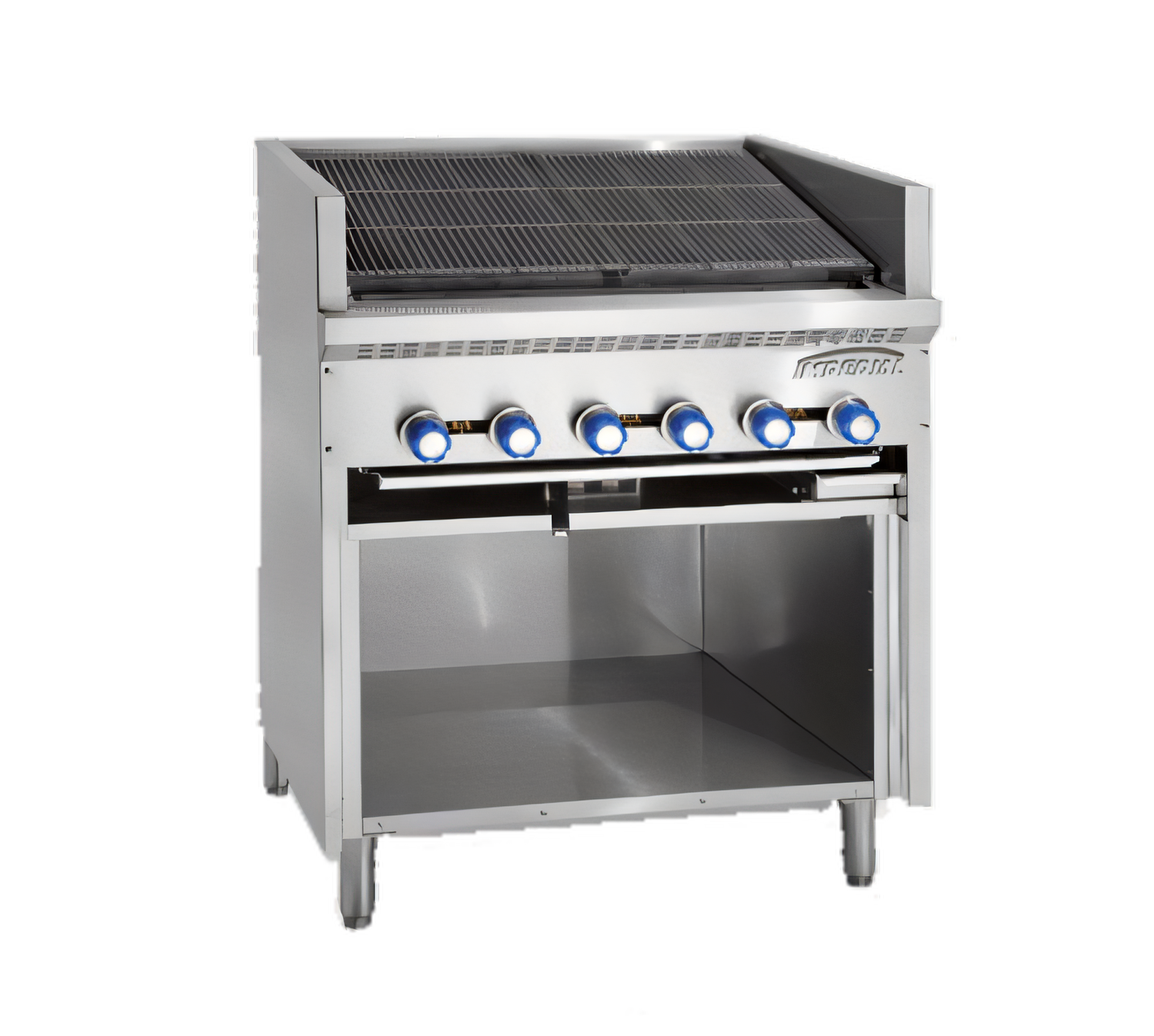

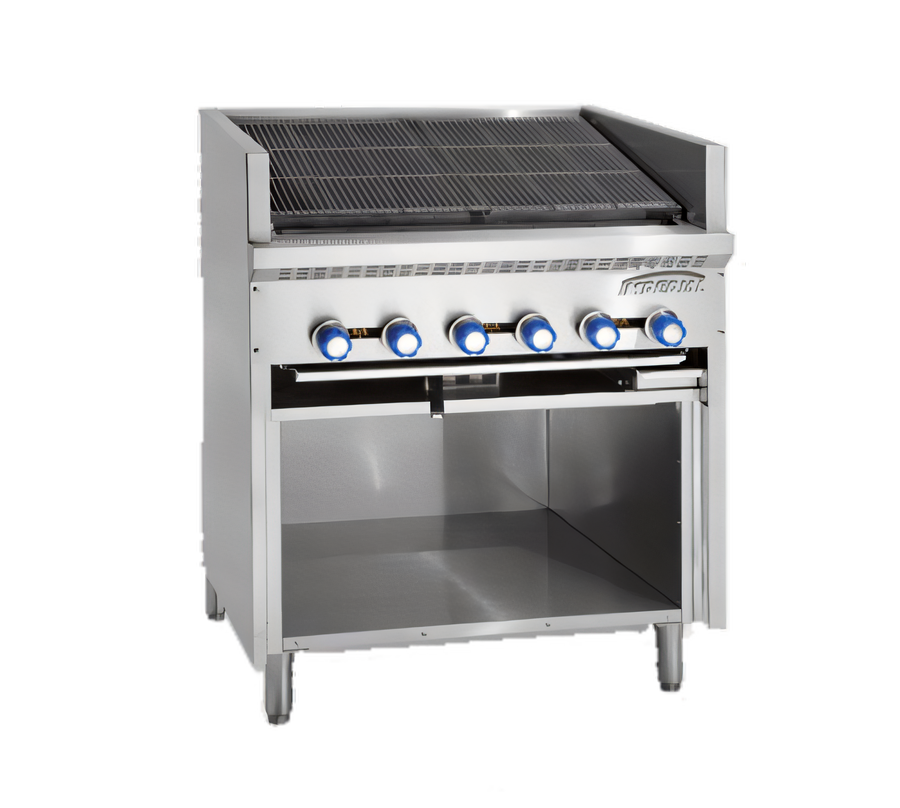

Imperial Steakhouse 36-Inch Gas Floor Model Charbroiler

6 Radiant Burners, Open Cabinet Base, Slanted Cast Iron Grates

Built for high-volume searing, this 36-inch floor-model charbroiler delivers 120,000 BTU across six individually controlled burners with adjustable cast iron grates and easy-clean stainless steel construction.

  • Six 20,000 BTU/hr burners provide 120,000 BTU total output for powerful broiling performance.
  • Three-position slanted cast iron grates create multiple heat zones for flexible cooking.
  • Removable cast iron radiants and tool-free burner removal simplify cleaning and maintenance.
  • Full-width grease gutter and 3-inch removable grease can help manage drippings and flare-ups.
  • Stainless steel front, sides, cabinet base, and landing ledge add durability and a professional look.
  • Open cabinet base and 6-inch legs make this a practical floor-model installation.

Overall Dimensions:

36.0"W x 28.5"D x 42.0"H

Product Weight:

445.0 lb

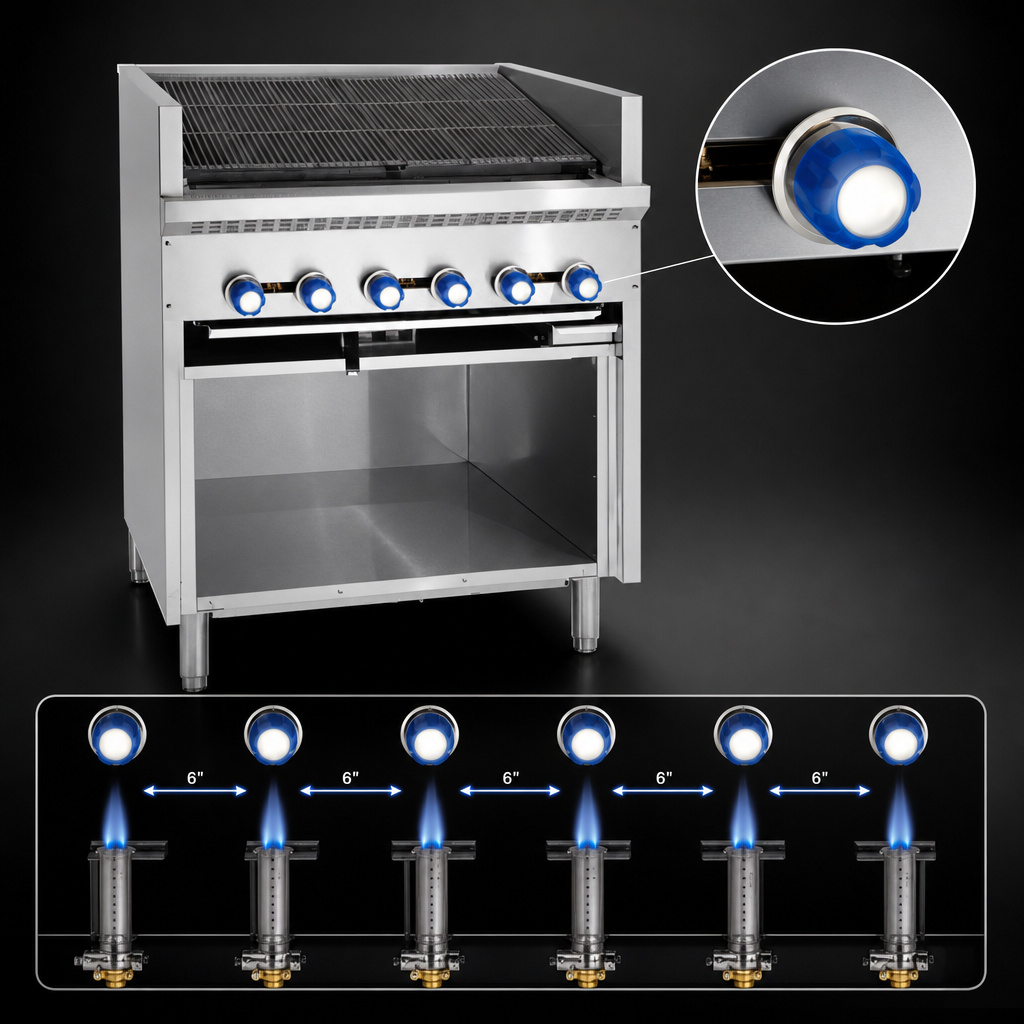

Six Individually Controlled Burners

Six stainless steel burners are spaced every 6 inches and each delivers 20,000 BTU/hr for responsive heat control across the cooking surface.

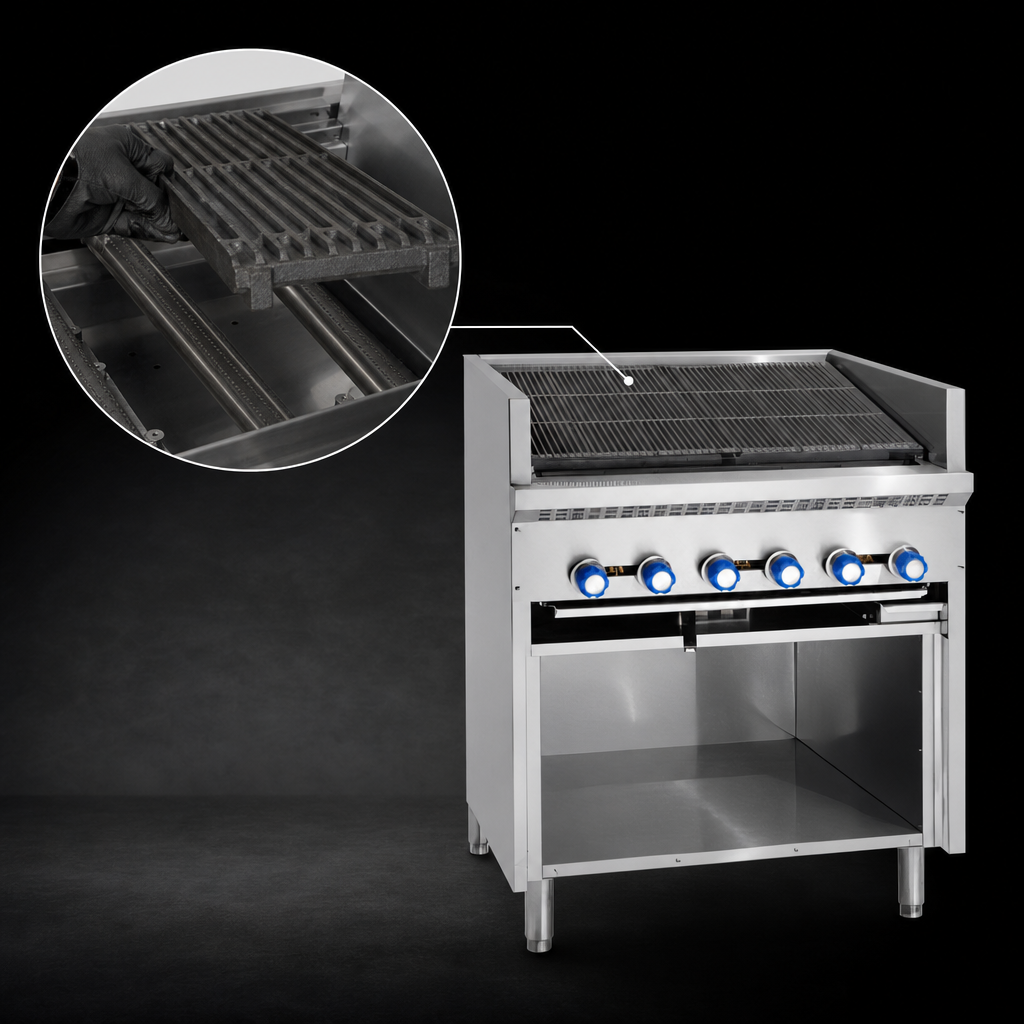

Cast-Iron Radiants

Removable reinforced cast iron radiants help prevent burner clogging and promote even broiling while retaining high surface temperatures.

Three-Position Slanted Top Grates

Heavy-duty cast iron top grates create three heat zones and a slanted cooking surface for greater temperature flexibility.

Tool-Free Cleaning Access

Grates, radiant covers, and stainless steel burners remove without tools to speed cleanup and routine maintenance.

Grease Management System

Each grate blade has a cast-in grease trough that channels drippings to the front grease gutter, which feeds a 3-inch removable grease can.

Stainless Steel Exterior Construction

The front, sides, cabinet base, and landing ledge are stainless steel, with welded and polished seams for durability and easy cleaning.

Insulated Cooktop

Insulation throughout the cooktop helps conserve energy during operation.

Open Cabinet Base

The floor-model design includes an open cabinet base for convenient storage access beneath the broiler.

Type Charbroiler
Style Steakhouse
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
BTU 120,000 BTU
Shipping Width 38.5 Inches
Shipping Depth 31 Inches
Shipping Height 45 Inches
Shipping Weight 445 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

It produces 120,000 BTU total from six individually controlled 20,000 BTU/hr burners.
The standard setup uses three-position cast iron slanted top grates.
A full-width grease gutter and 3-inch removable grease can collect drippings, and each grate blade has a cast-in grease trough.
Yes. The grates, radiant covers, and stainless steel burners can be removed without tools.
It is for use only on non-combustible floors. Provide 0 inches clearance from non-combustible surfaces and 8 inches from combustible surfaces.
The manifold pressure is 5.0 inches W.C. for natural gas and 10.0 inches W.C. for propane gas.
