Imperial (Middleby) IABF-30 Steakhouse Gas Charbroilers
Description

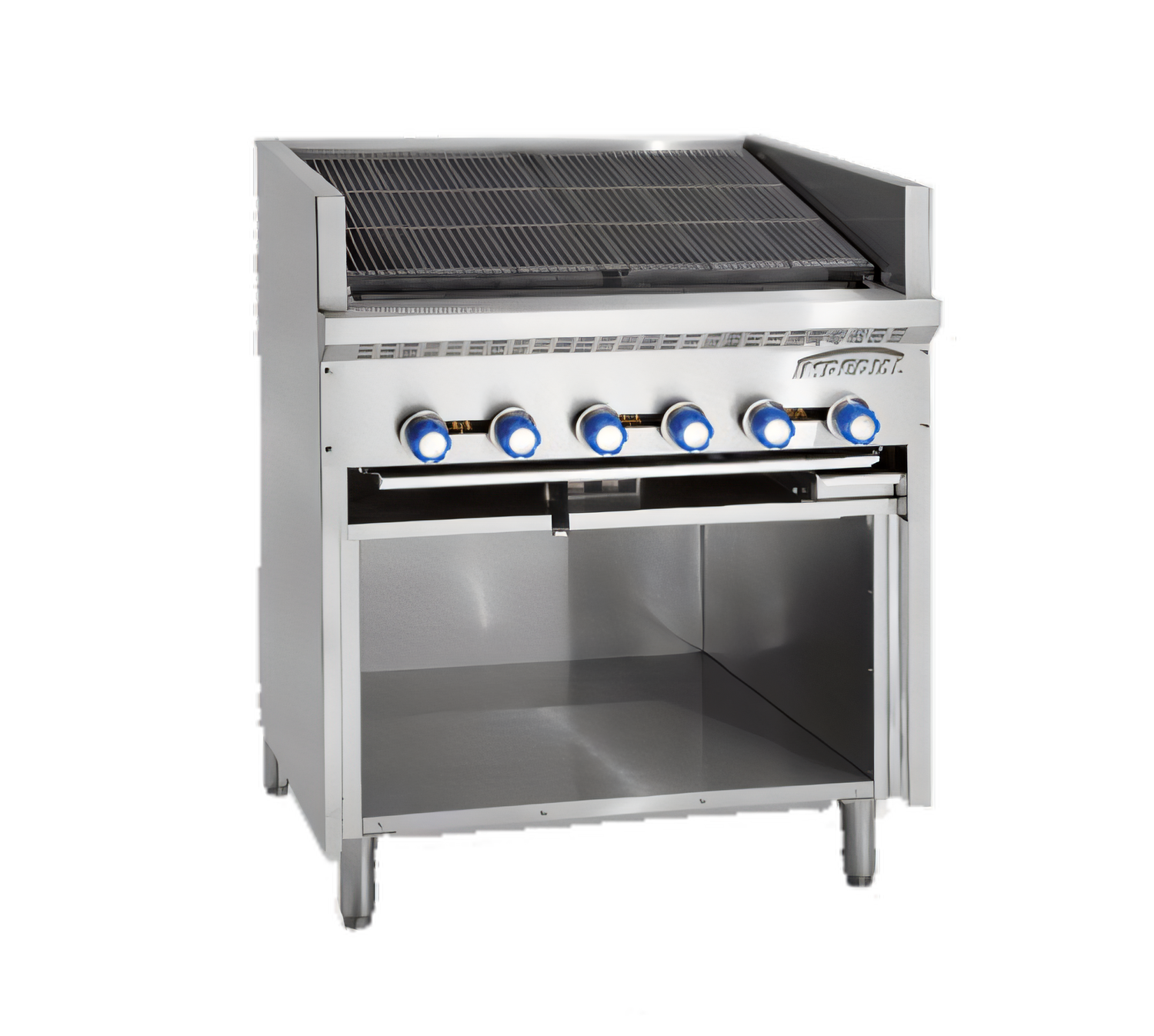

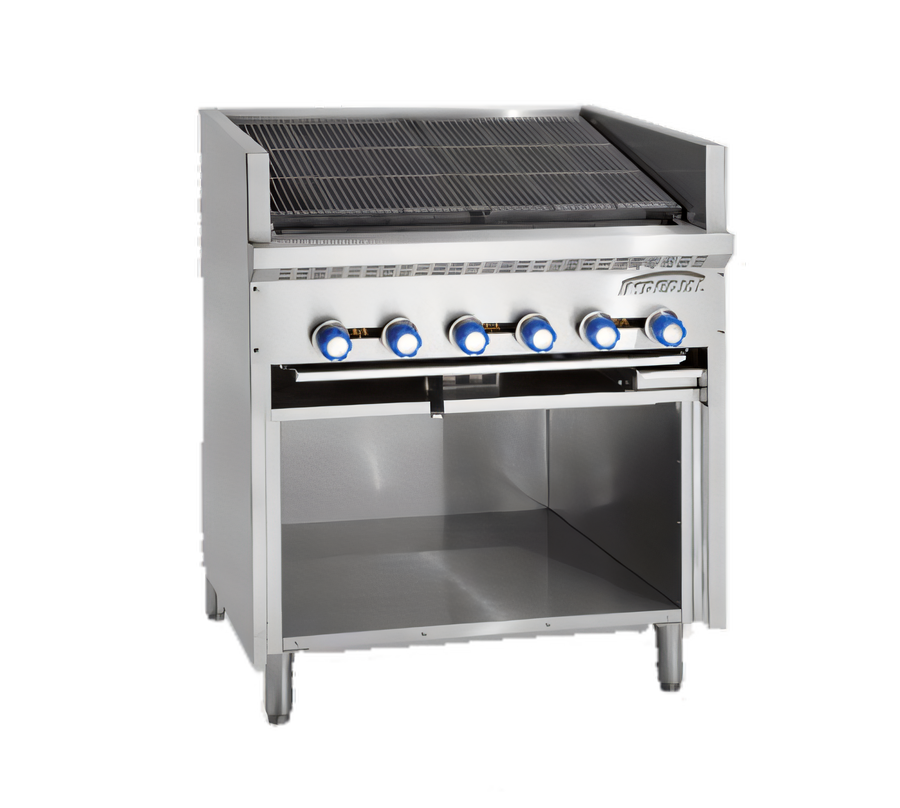

Imperial Steakhouse 30" Gas Charbroiler – Floor Model
Model IABFR-30 | 100,000 BTU | Open Cabinet BaseBuilt for high-volume steakhouses, pubs and hotel kitchens, the Imperial Steakhouse™ floor-model charbroiler turns out perfectly seared steaks, chops and seafood with unmistakable char-grill flavor. Five independently- controlled burners and heavy cast-iron components deliver the heat you need while keeping cleanup fast and easy.
Why You’ll Love It

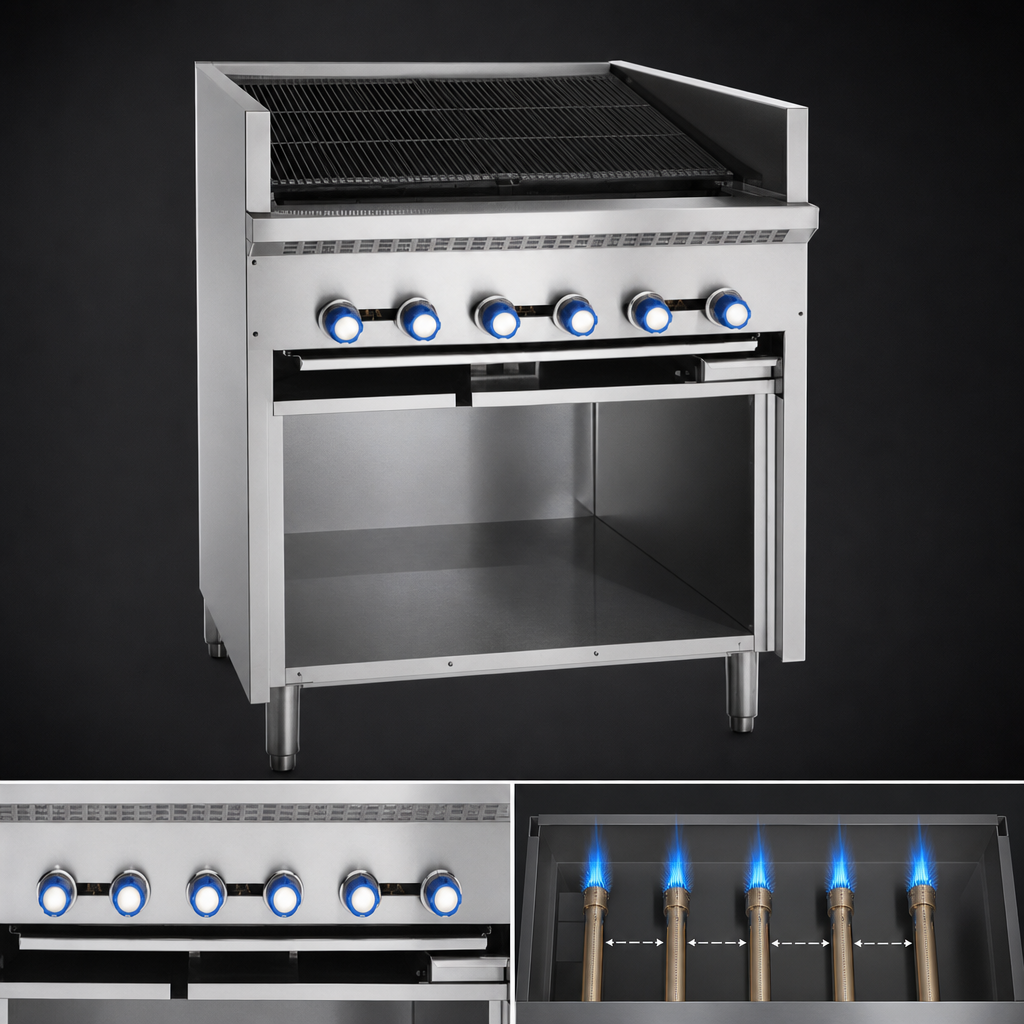

- Power to perform – 5 stainless-steel burners (20,000 BTU each) produce an even 100,000 BTU/hr (29 kW).

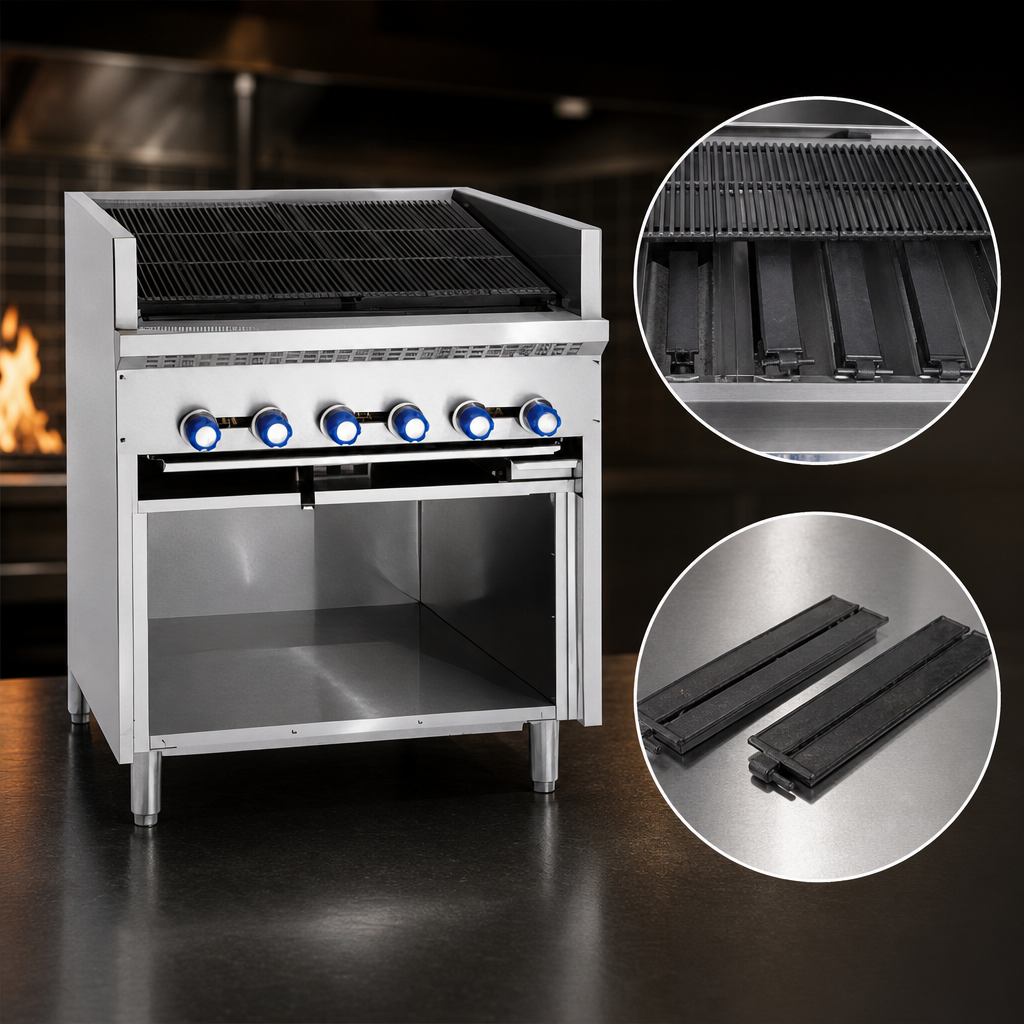

- Radiant heat consistency – Removable, reinforced cast-iron radiants absorb and re-radiate intense heat for deeper sear marks and fewer flare-ups.
- Tri-position cooking grate – Slanted, 9-bar cast-iron grates offer three height settings to create multiple heat zones from one deck.
- Easy grease management – Each grate blade channels drippings to a full-width gutter and 3" removable grease can.
- All-stainless exterior – Front, sides, landing ledge and open cabinet base wipe clean and look professional on any cookline.
- Tool-free service – Burners, radiants and grates lift out without tools for nightly cleaning.
- Energy-saving insulation – Entire cooktop is insulated to keep heat on the grate and lower utility costs.
- Rock-solid stance – 6" stainless legs with adjustable feet are standard; optional casters available.
At-a-Glance Specs
| Overall dimensions | 30" W × 28-1/2" D × 42" H (762 × 724 × 1067 mm) |
|---|---|
| Burners / Output | 5 burners | 100,000 BTU/hr (29 kW) |
| Cooking grates | Cast-iron, 9-bar, 3-position, slanted |
| Radiants | Cast-iron (standard); stainless-steel optional |
| Gas connection | 3/4" NPT rear manifold |
| Manifold pressure | Natural 5.0" W.C. | Propane 10.0" W.C. |
| Clearances | 0" non-combustible | 8" (203 mm) combustible |
| Certifications | cETLus, NSF |
| Shipping weight | ≈ 365 lb / 165 kg |
| Warranty | 1 year parts & labor |
Popular Options (sold separately)
- Fin-style, round-rod or reversible dual meat/fish grates
- Stainless-steel radiants for faster heat-up
- 6" (152 mm) locking caster kit
- ¾" gas shut-off valve, quick-disconnect & flexible gas hose
- Stainless front shelf or “Sizzle ‘n Chill” refrigerated base
Imperial warranties this charbroiler for one (1) year on parts and labor when installed and serviced by an authorized technician. See full warranty for conditions and exclusions.
