Imperial (Middleby) IABA-48 Gas Charbroilers
Description

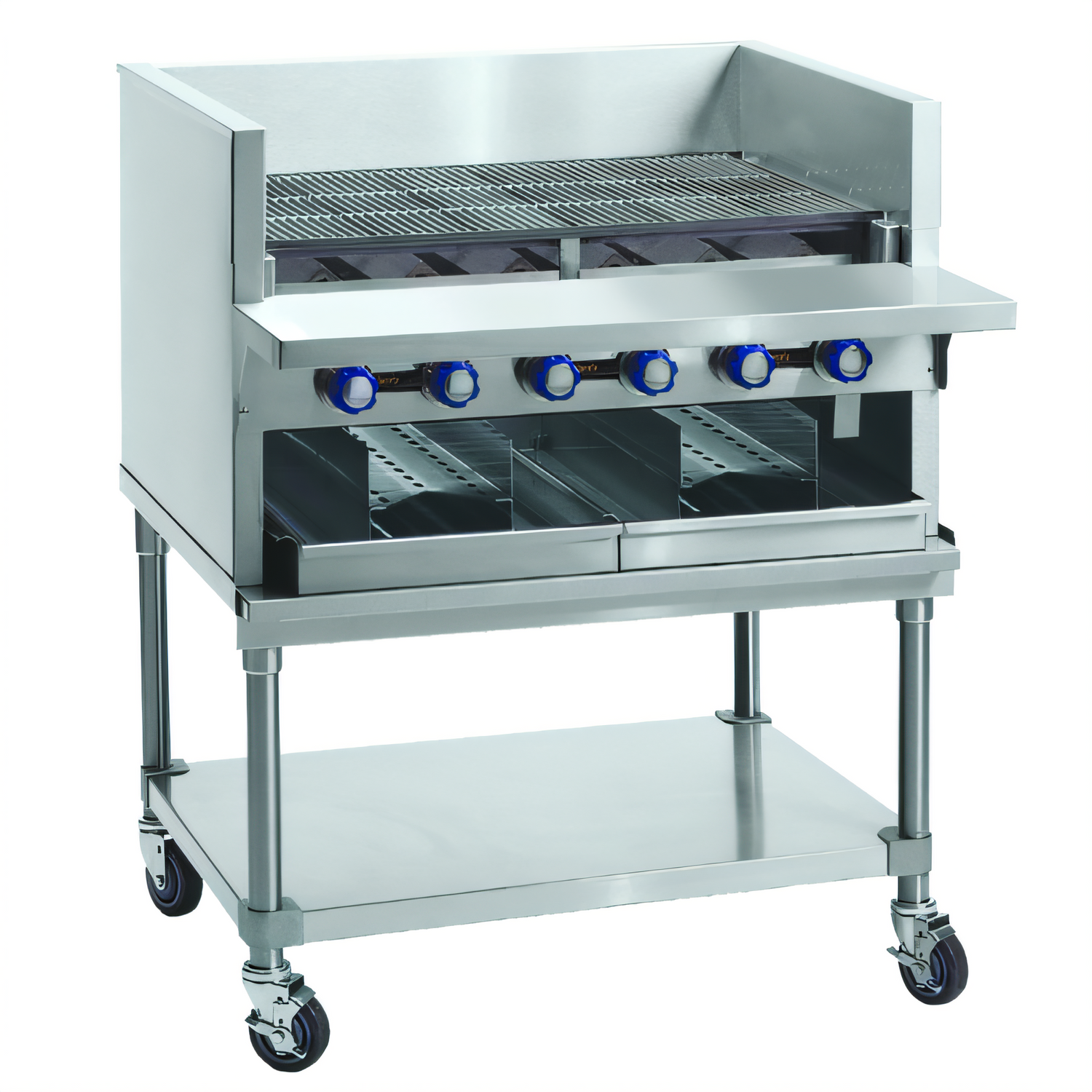

Imperial IABA-48 48" Gas Smoke Broiler – 160,000 BTU
Countertop | 8 Burners | 3 Log Holders | Cast-Iron Radiants & GratesDeliver signature, wood-smoked flavor at high-volume speed. The Imperial IABA-48 combines an 8-burner, 160,000 BTU radiant broiler with a built-in slow-smolder smoke system that keeps logs or chips glowing longer—so every steak, chop and veggie leaves the kitchen with authentic char marks and deep, smoky character.
Key Features
- Three front-loading stainless steel log holders create continuous, controlled smoke; use logs or wood chips.

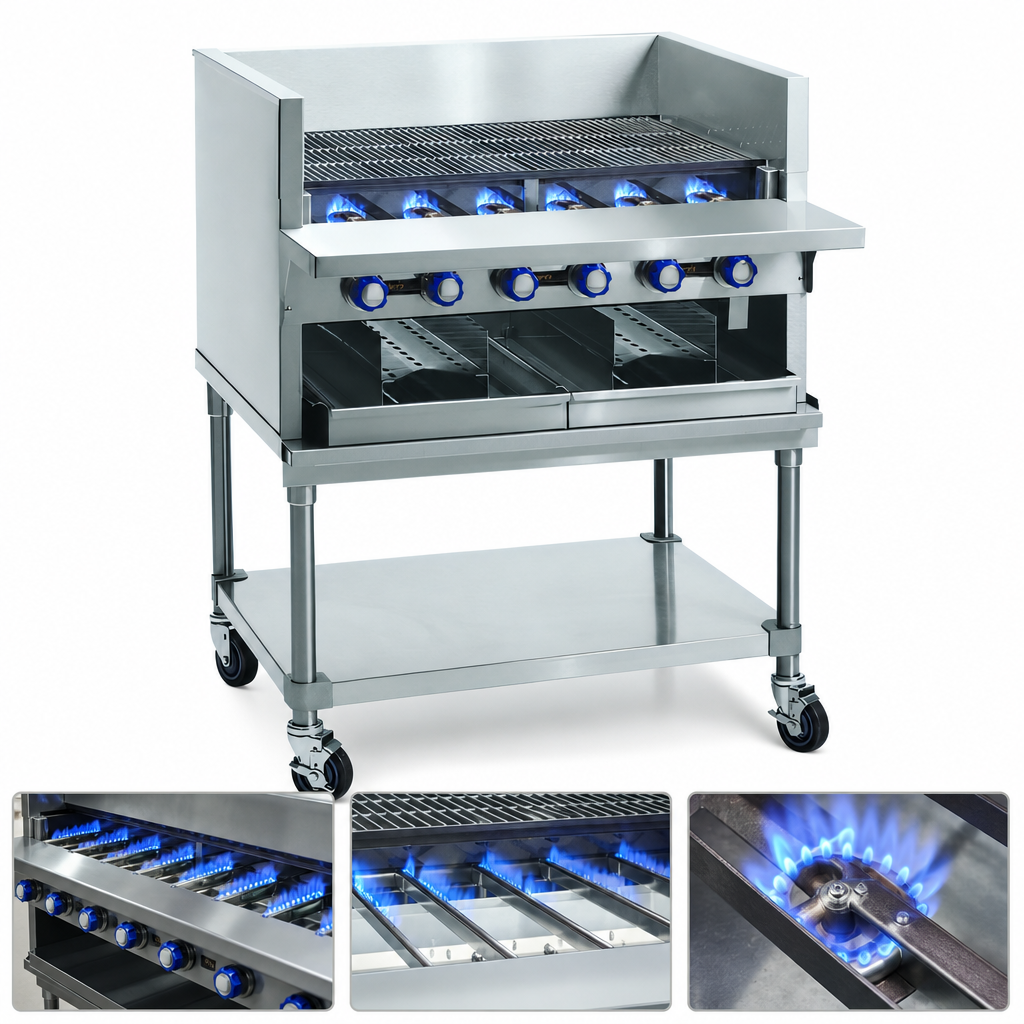

- Eight individually controlled 20,000 BTU stainless steel burners spaced every 5" for precise cooking zones.

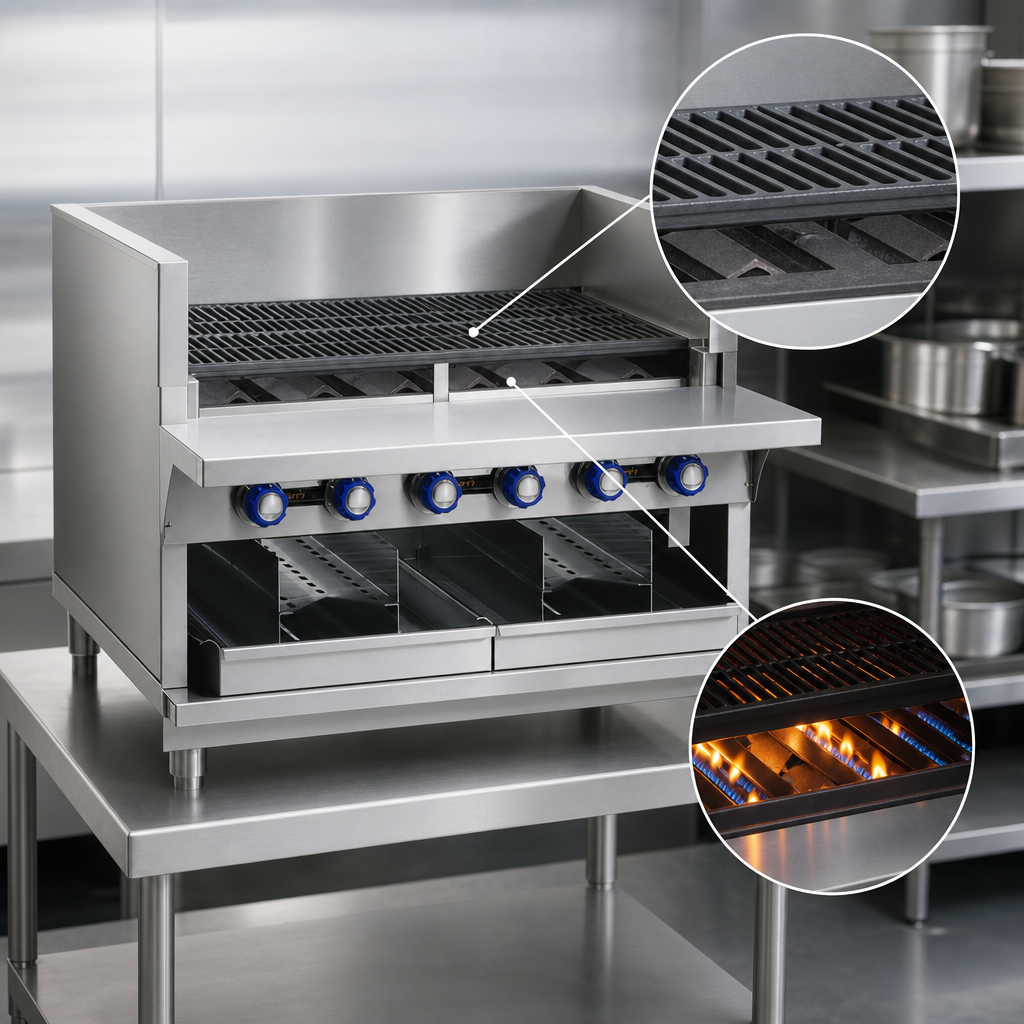

- Removable, reinforced cast-iron radiants maximize heat retention and shield burners from drippings.
- Heavy-duty cast-iron top grates (5" × 21" sections) produce bold grill marks and lift out tool-free for cleaning.
- Full-width grease gutter plus slide-out ash, water and grease pans keep the work station clean.
- Rugged stainless steel front, sides and landing ledge with welded seams for long-lasting, easy-wipe durability.
- 8-1/4" high stainless splash guard and fully insulated cooktop help protect staff and conserve energy.
- Durable cast-aluminum knobs with Valox™ collars stay cool to the touch.
- Certified cETLus & NSF for safety and sanitation.
At-a-Glance Specifications
| Model | IABA-48 |
|---|---|
| Type | Gas radiant smoke broiler (countertop) |
| Overall Width | 48" (1219 mm) |
| Overall Depth | 36-3/4" (933 mm) |
| Overall Height | 23" (584 mm) |
| Total Heat Output | 160,000 BTU/hr (47 kW) |
| Burners | 8 stainless steel (20,000 BTU each) |
| Log Holders | 3 stainless, slide-out |
| Gas Connection | 3/4" NPT; 5" W.C. Natural / 10" W.C. LP |
| Required Clearance | 0" to non-combustible, 8" (203 mm) to combustible |
| Ship Weight | 498 lb (226 kg) |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor |
Smoke Flavor, Simplified
Imperial’s slow-smolder design keeps wood at the perfect temperature for steady, flavorful smoke—without open-flame flare-ups. Swap in different hardwoods or chips between rushes to tailor flavor profiles to your menu.
Popular Accessories (sold separately)
- Stainless steel equipment stand (casters available).
- Stainless steel radiants for faster heat-up and reduced flare-ups.
- Full-width 9-3/4" stainless work deck with sauce-pan cut-outs.
- Heavy-duty stainless log poker / shovel combo.
