Imperial (Middleby) IAB-72 Steakhouse Gas Charbroilers
Imperial (Middleby) IAB-72 Steakhouse Gas Charbroilers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

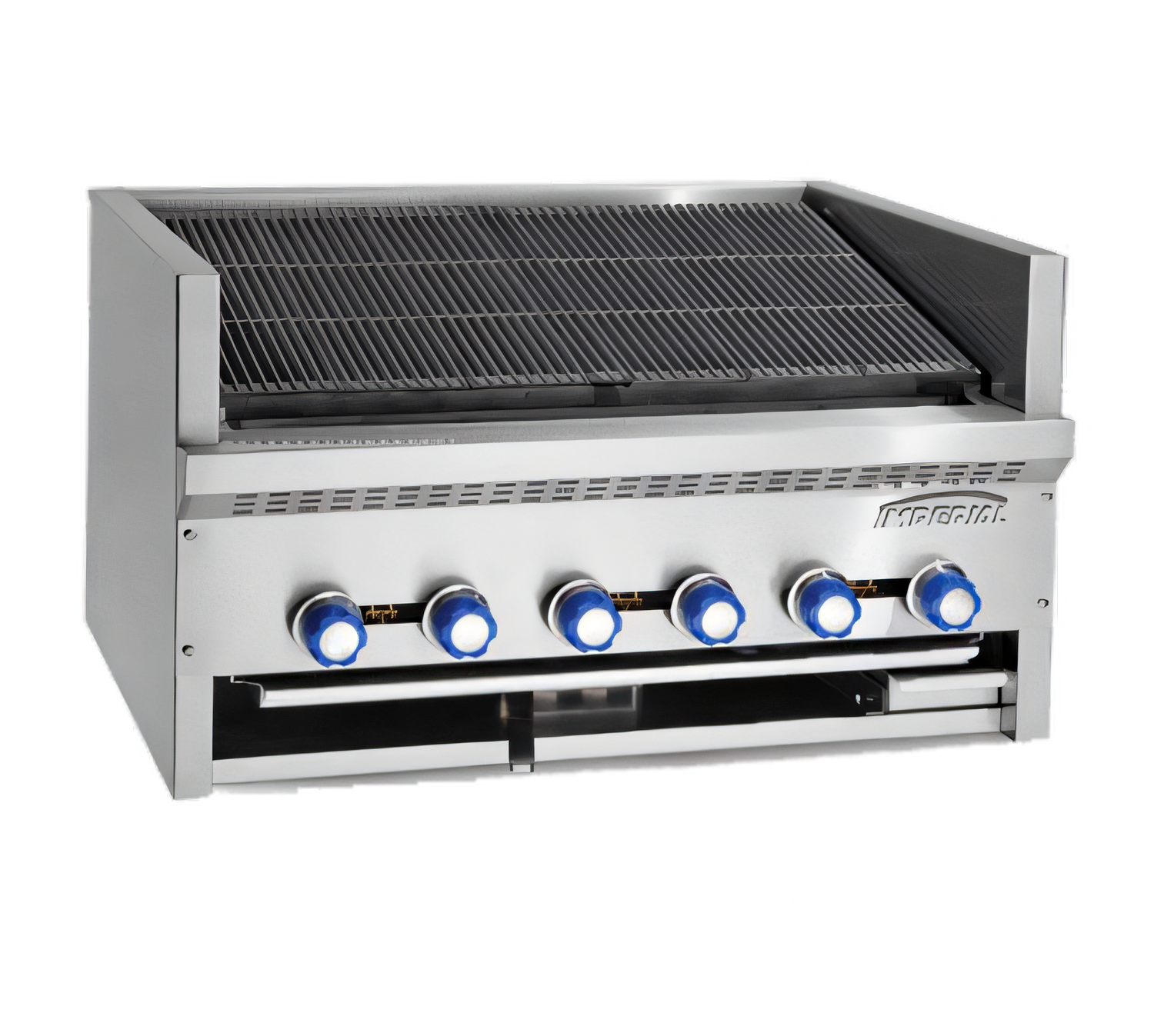

Imperial “Steakhouse” 72" Gas Countertop Charbroiler
Model IABR-72 | 12 Burners | 240,000 BTUEngineered for high-volume steakhouses, catering kitchens and commissaries, the Imperial Steakhouse 72" countertop charbroiler delivers intense, even heat across an expansive grilling surface while giving chefs precision control over every zone. Heavy-duty, field-proven construction pairs with smart clean-up features to keep service humming shift after shift.
Why You’ll Love It

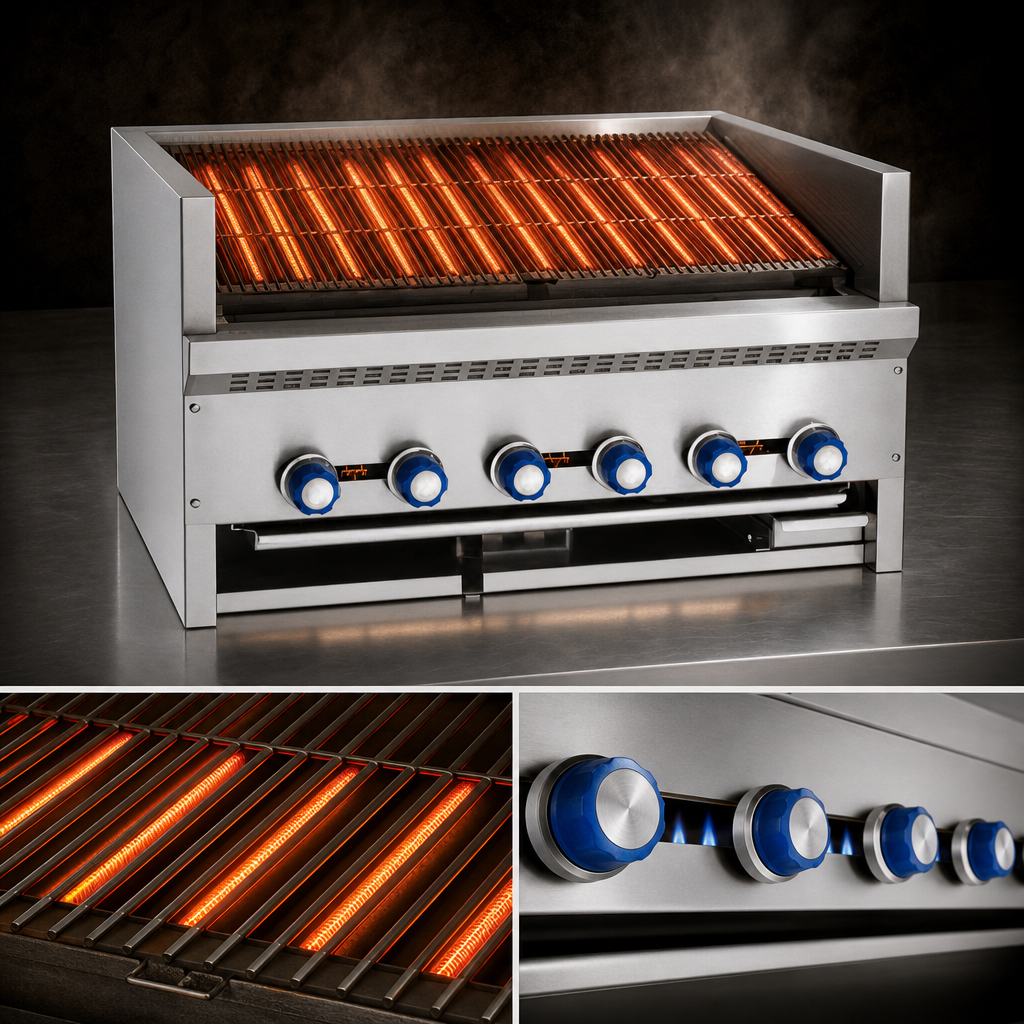

- 12 individually controlled stainless-steel burners (20,000 BTU each) spaced every 6" for complete zone control.
- Standard cast-iron radiants maximize heat retention and create the signature steakhouse sear.

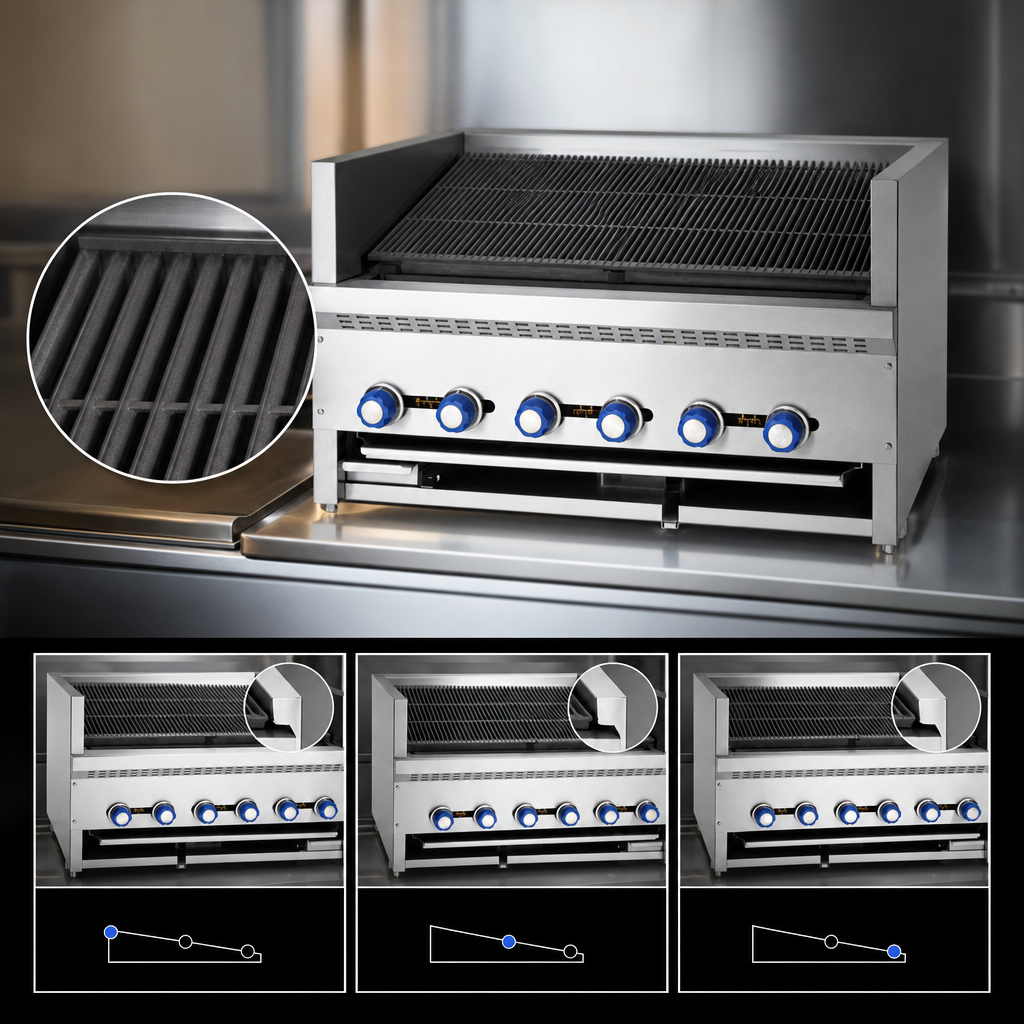

- Three-position, slanted top grate lets you dial in three distinct heat zones— high-heat branding, mid-range finishing, or low-temp holding.
- Heavy-duty 9-bar cast-iron grate sections lift off without tools for fast cleaning or change-outs.
- Full-width front grease gutter and 3" removable grease can simplify daily maintenance and reduce flare-ups.
- All-stainless front, sides and landing ledge stand up to the toughest commercial kitchens while looking sharp on an open line.
- Completely insulated cooktop helps conserve energy and keep surrounding surfaces cooler.
Popular Options (sold separately)
- Stainless-steel radiants for faster heat-up & reduced flare-ups.
- Alternate grate styles: Fin, ½" Round Rod or reversible Dual Grate (meat/fish sides).
- Stainless-steel front shelf, equipment stands & 6" locking casters.
- 3/4" gas quick-disconnect hose & shut-off valve kit.
Specifications
Model | IABR-72 |
---|---|
Cooking Surface Width | 72" (1829 mm) |
Overall Dimensions (W × D × H) | 72" × 28 ½" × 20" (1829 × 724 × 508 mm) |
Number of Burners | 12 |
Total Output | 240,000 BTU/hr (70 kW) |
Gas Connection | ¾" NPT, rear |
Manifold Pressure | Natural 5.0" W.C. | LP 10.0" W.C. |
Ship Weight | 620 lb (281 kg) |
Certifications | cETLus, ETL Sanitation, NSF |
Warranty | 1-year parts & labor |
Clearances* | 0" non-combustible | 8" combustible |
*Legs or stand required for countertop installation. Always consult the installation manual and local codes before installing.
