Imperial (Middleby) IAB-36 Steakhouse Gas Charbroilers
Description

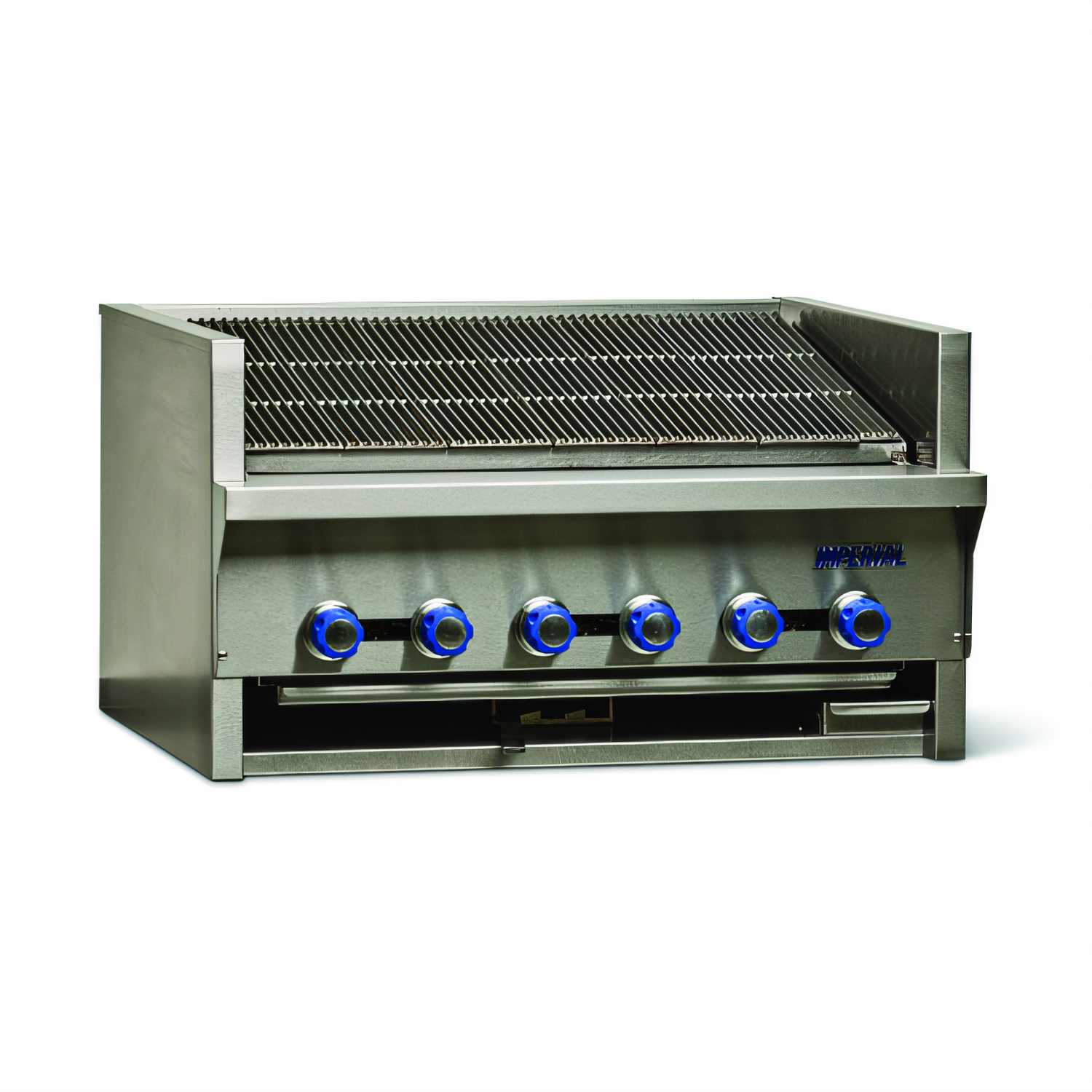

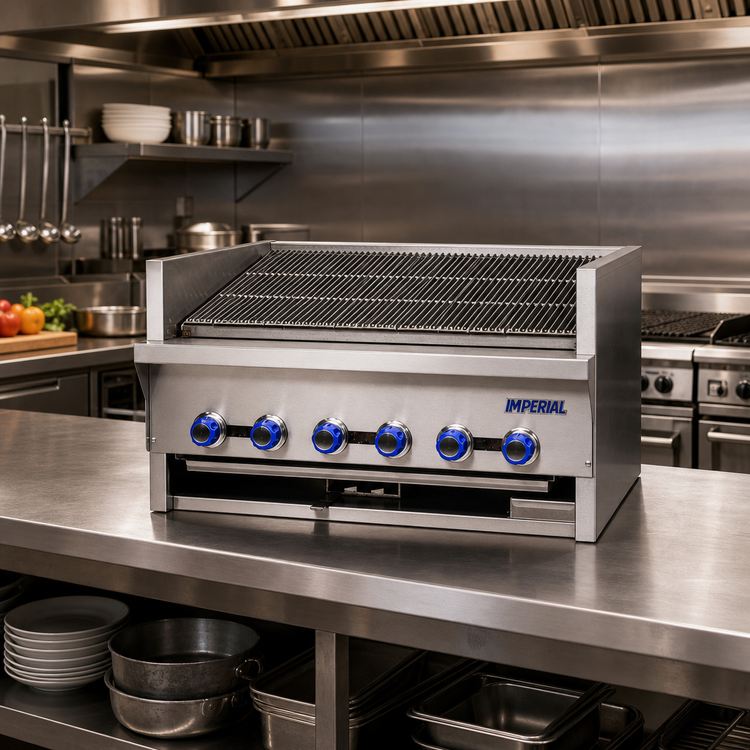

Imperial “Steakhouse” 36" Countertop Gas Charbroiler – Model IABR-36
120,000 BTU | 6 Individually-Controlled Burners | Heavy-Duty Cast Iron RadiantBring the flavor, sizzle and presentation of a traditional steakhouse to any commercial kitchen. Imperial’s 36" Steakhouse Charbroiler delivers intense, even heat across a slanted three-position grate, letting you create picture-perfect char marks on steaks, seafood, vegetables and more — all from a compact countertop footprint.
Why Operators Choose the IABR-36

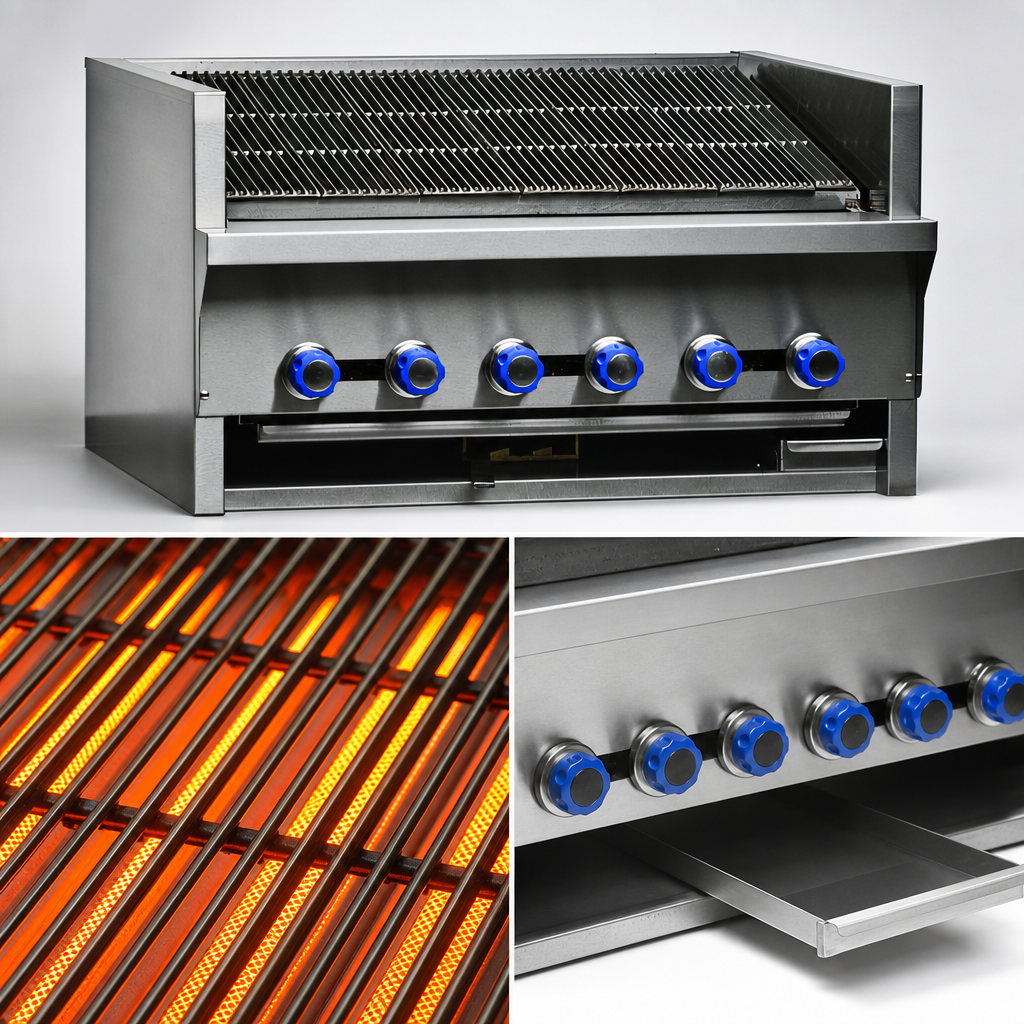

- Six 20,000 BTU stainless-steel burners (one every 6") for precise zone temperature control.
- Standard cast-iron radiants maximize heat retention and minimize flare-ups; optional stainless radiants available.

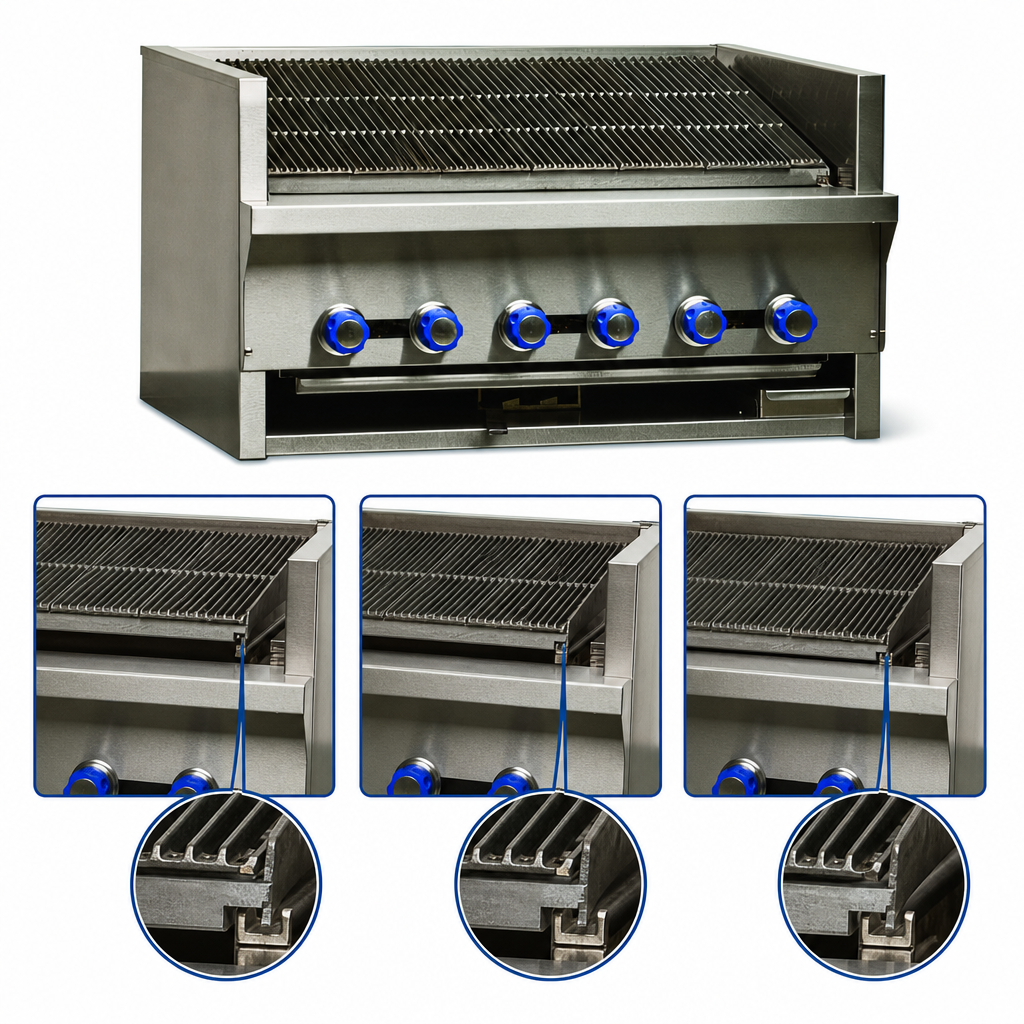

- Three-position, slanted 9-bar cast-iron grate creates low, medium and high heat zones without moving product.
- Each grate section removes tool-free for fast cleaning and menu swaps.
- Built-in grease management: cast-in troughs channel drippings to a full-width gutter and removable 3" grease can.
- Durable stainless-steel front, sides & landing ledge with welded seams for a professional finish.
- Die-cast metal control knobs stand up to high-volume kitchens.
- Fully insulated cooktop conserves energy and keeps work areas cooler.
- cETLus, ETL Sanitation & NSF listed for gas safety and food-contact compliance.
Technical Specifications
| Model | IABR-36 (cast-iron radiants standard) |
|---|---|
| Cooking Surface Width | 36" (914 mm) |
| Overall Dimensions (W x D x H) | 36" x 28 1/2" x 20" (914 mm x 724 mm x 508 mm) |
| Number of Burners | 6 stainless-steel, individually controlled |
| Total Heat Output | 120,000 BTU/hr (35 kW) |
| Gas Connection | 3/4" NPT rear manifold |
| Manifold Pressure | Natural Gas: 5" W.C. | LP Gas: 10" W.C. |
| Clearance (Combustible) | 8" (203 mm); 0" from non-combustible surfaces (legs or stand required) |
| Shipping Weight | ≈ 365 lb (165 kg) |
| Certifications | cETLus, ETL Sanitation, NSF |
| Standard Warranty | 1-year parts & labor (USA / Canada) |
Popular Options & Accessories
- Stainless-steel radiants (in lieu of cast iron)
- Alternate top grates — Fin style, ½" round rod or reversible dual meat/fish grate
- Stainless-steel front shelf or equipment stand (with optional 6" casters)
- Factory-welded stainless legs for countertop use
- 3/4" gas shut-off valve, quick-disconnect & flexible hose kit
Need to preserve cash flow? Ask about Middleby equipment financing for affordable, fixed monthly payments.
Specifications are subject to change without notice. Always consult the installation manual and local codes before installing or operating this equipment.
