Imperial (Middleby)  |  Steakhouse  |  SKU: IAB-30

Imperial (Middleby) IAB-30 Steakhouse Gas Charbroilers

$6,809.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Training video Middleby financial flyer Parts list Warranty sheet
Related Searches
Charbroilers & Grills Gas Charbroilers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

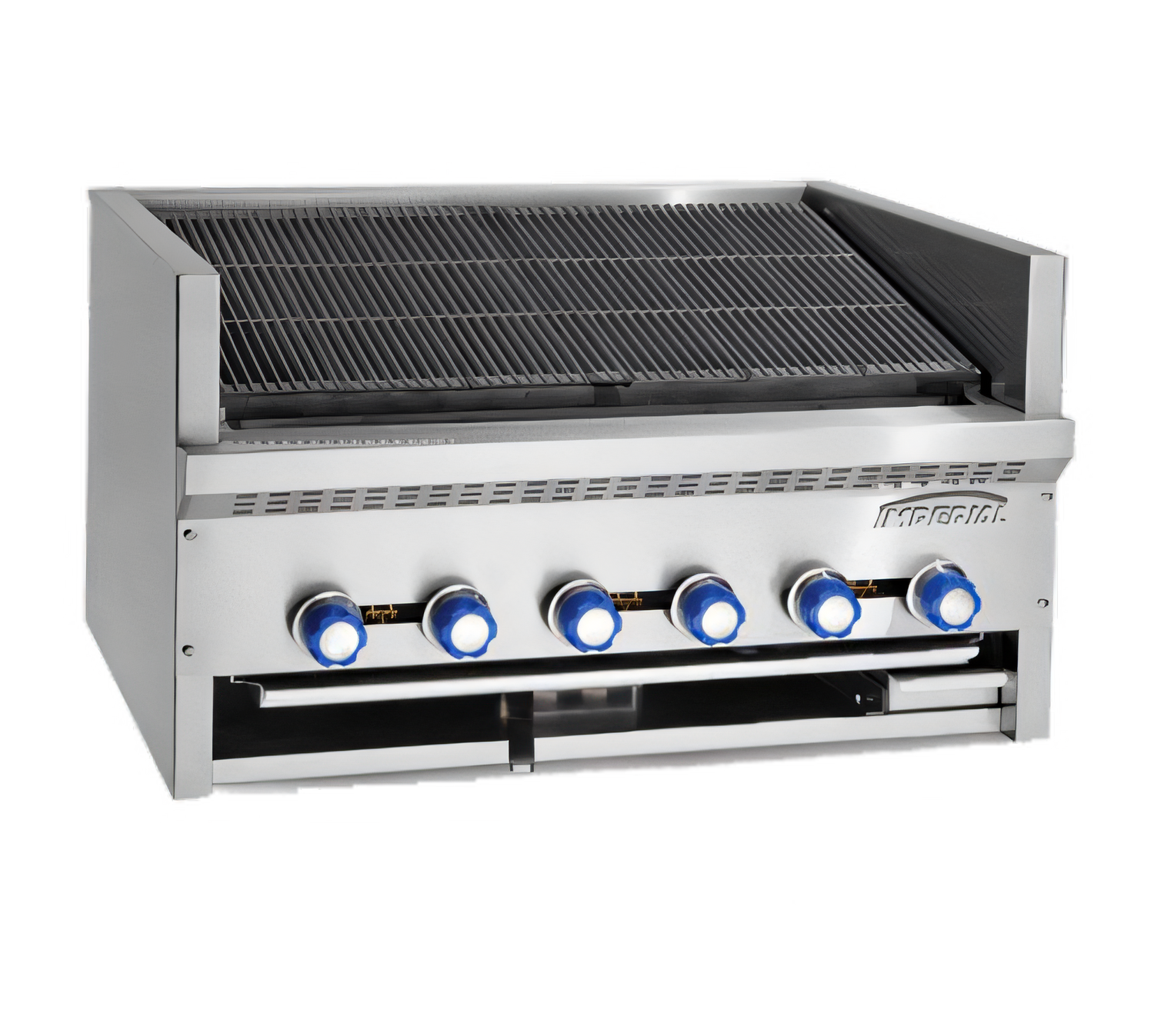

Imperial Steakhouse 30" Countertop Gas Charbroiler – 100,000 BTU

Model IABR-30 | 5 Burners | Cast-Iron Radiants

Serve picture-perfect grill marks and authentic steakhouse flavor from a compact 30-inch footprint. Imperial’s Steakhouse charbroiler brings 100,000 BTU of even, controllable heat to your line, wrapped in easy-clean stainless steel that’s built for the rush.

Key Features

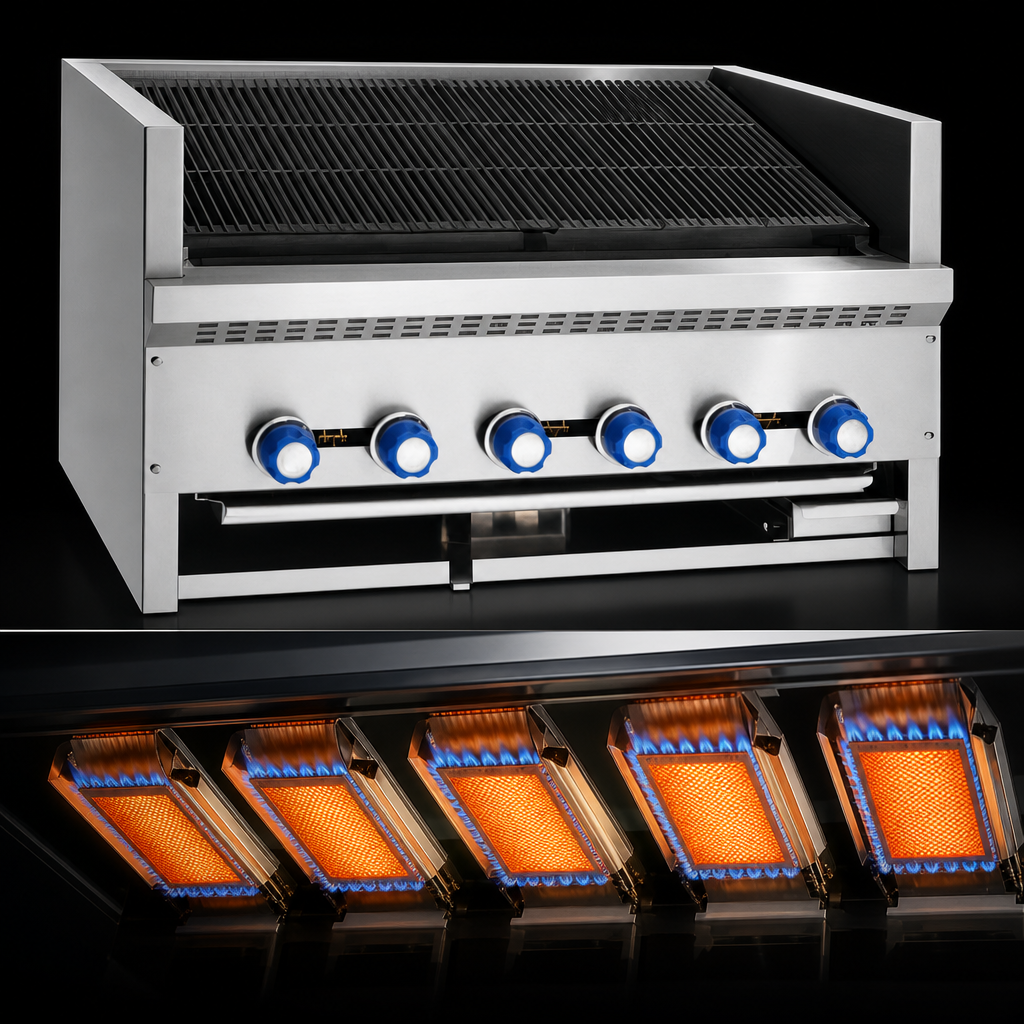

  • Five individually controlled 20,000 BTU/hr stainless steel burners (one every 6").
  • Removable cast-iron radiants deliver intense, even heat while protecting burners.

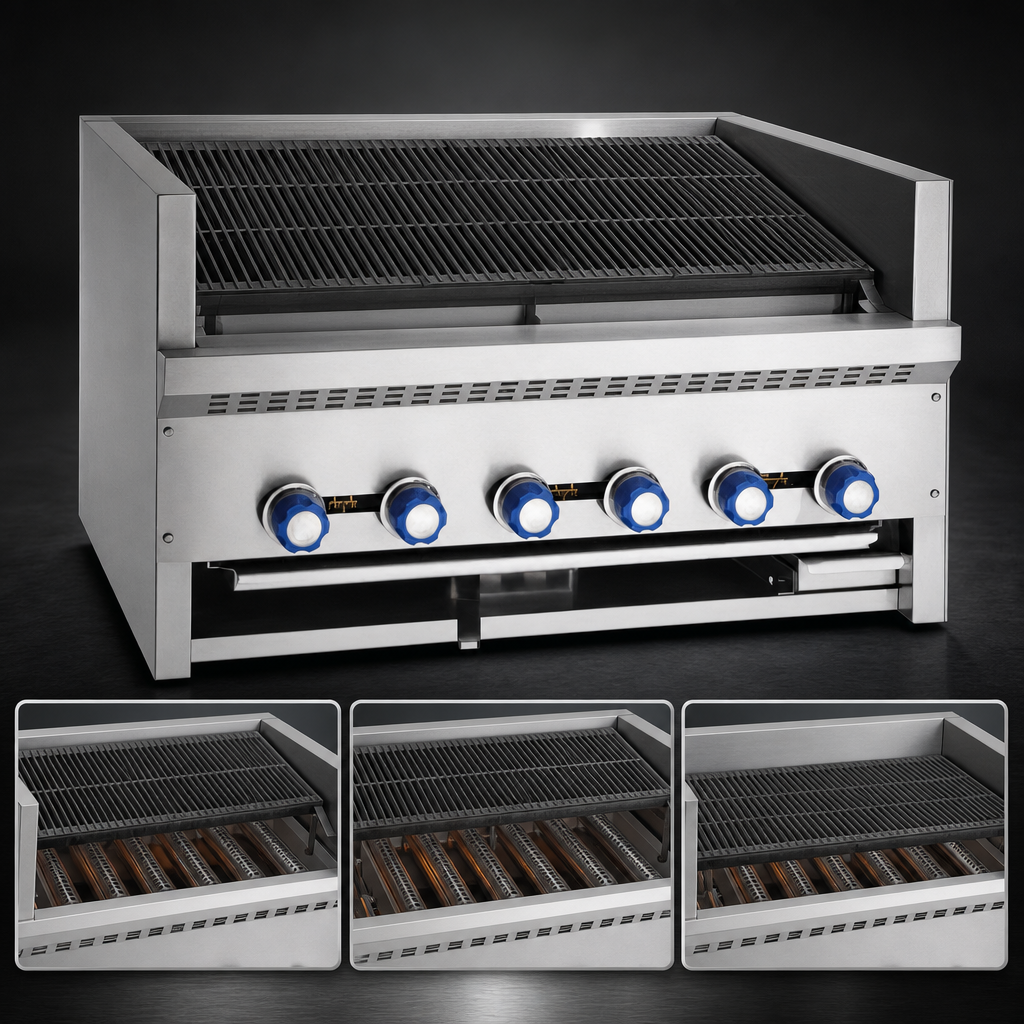

  • 3-position, 9-bar cast-iron grate creates three heat zones for steakhouse-quality results.
  • Slanted cooking surface lets you sear near the flame and hold on the higher rack.
  • Full-width grease gutter with a 3" removable can keeps the deck clean and reduces flare-ups.
  • All stainless steel front, sides and landing ledge for a professional, durable finish.
  • Tool-free removal of grates, radiants and burners speeds nightly cleanup.
  • Certified cETLus, ETL Sanitation (NSF) for assured safety and hygiene.

Performance & Construction

  • Fully insulated cooktop conserves energy and keeps your kitchen cooler.
  • Die-cast metal control knobs stand up to high-volume abuse.
  • Welded & polished seams eliminate grease traps and wipe clean in seconds.
  • Ideal for steakhouses, bars, hotels, caterers and ghost kitchens that need big-flavor grilling on limited counter space.

Specifications

Model IABR-30 (Steakhouse Series)
Cooking Surface (W × D) 30" × 24" (762 × 610 mm)
Overall Dimensions (W × D × H) 30" × 28 ½" × 20" (762 × 724 × 508 mm)
Heat Output 100,000 BTU/hr  |  29 kW
Burners 5 stainless steel, individually valved
Grate Type Cast-iron, 9-bar, reversible, 3-position slanted
Grease Management Full-width gutter & 3" (76 mm) removable can
Gas Connection ¾" NPT rear manifold
Manifold Pressure Natural: 5.0" W.C.  |  Propane: 10.0" W.C.
Shipping Weight Approx. 295 lb (133 kg)
Certifications cETLus, ETL, NSF

Gas Requirements & Clearances

  • Unit must be installed on legs or an approved equipment stand.
  • 0" clearance from non-combustible surfaces; 8" (203 mm) from combustible surfaces.
  • Field convertible for Natural or LP gas (specify at order).

Included & Optional Accessories

  • Standard: cast-iron 9-bar grate & cast-iron radiants.
  • No-charge grate alternatives: Fin Style or ½" Round Rod (specify).
  • Optional stainless steel radiants for faster heat-up & reduced flare-ups.
  • Stainless steel front shelf, equipment stands, or 6" caster kits.
  • ¾" gas shut-off valve, quick disconnect & flexible hose kits available.

Warranty

Backed by Imperial’s 1-year parts & labor warranty. Service must be performed by an authorized Imperial agency.

Need flexible payments? Commercial equipment financing is available with fast credit decisions and potential Section 179 tax advantages.

Features & Specs

Manufacturer

Imperial (Middleby)

Brand_name

Steakhouse

Certifications

NSF, cETLus, ETL

Height

20.0in

Width

30.0in

Depth

28.5in

Shipping Weight

295.0lbs

Control Type

manual controls

Width (side - side) OA

25 - 30"

Heating Source

radiant

Specifications

Steakhouse Charbroiler, gas, countertop, 30"W, (5) radiant burners, (3) position cast iron slanted top grate, full width grease gutter, 3"W removable grease can, stainless steel front, sides & landing ledge, 100,000 BTU, 29kW, cETLus, ETL, NSF
