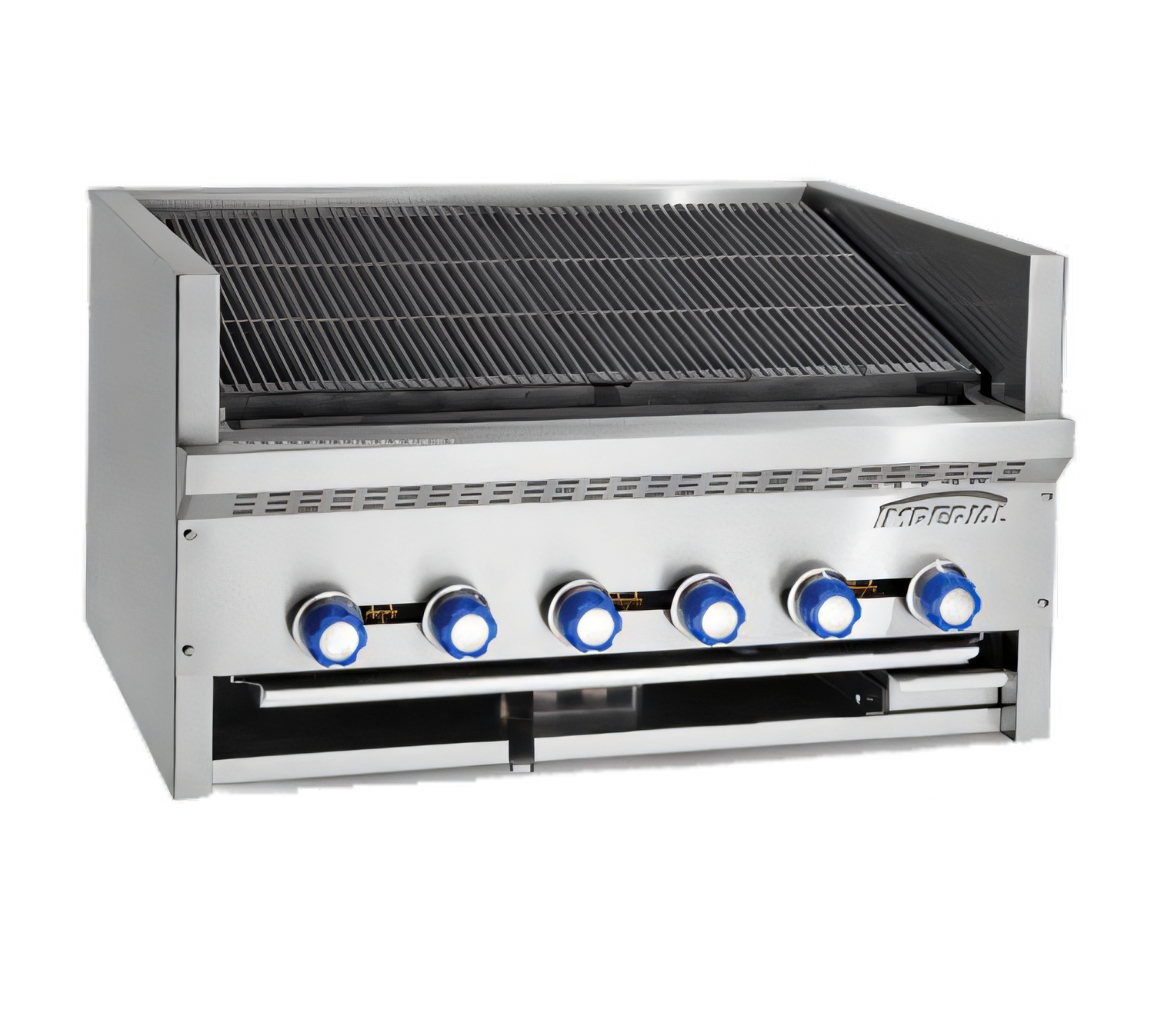

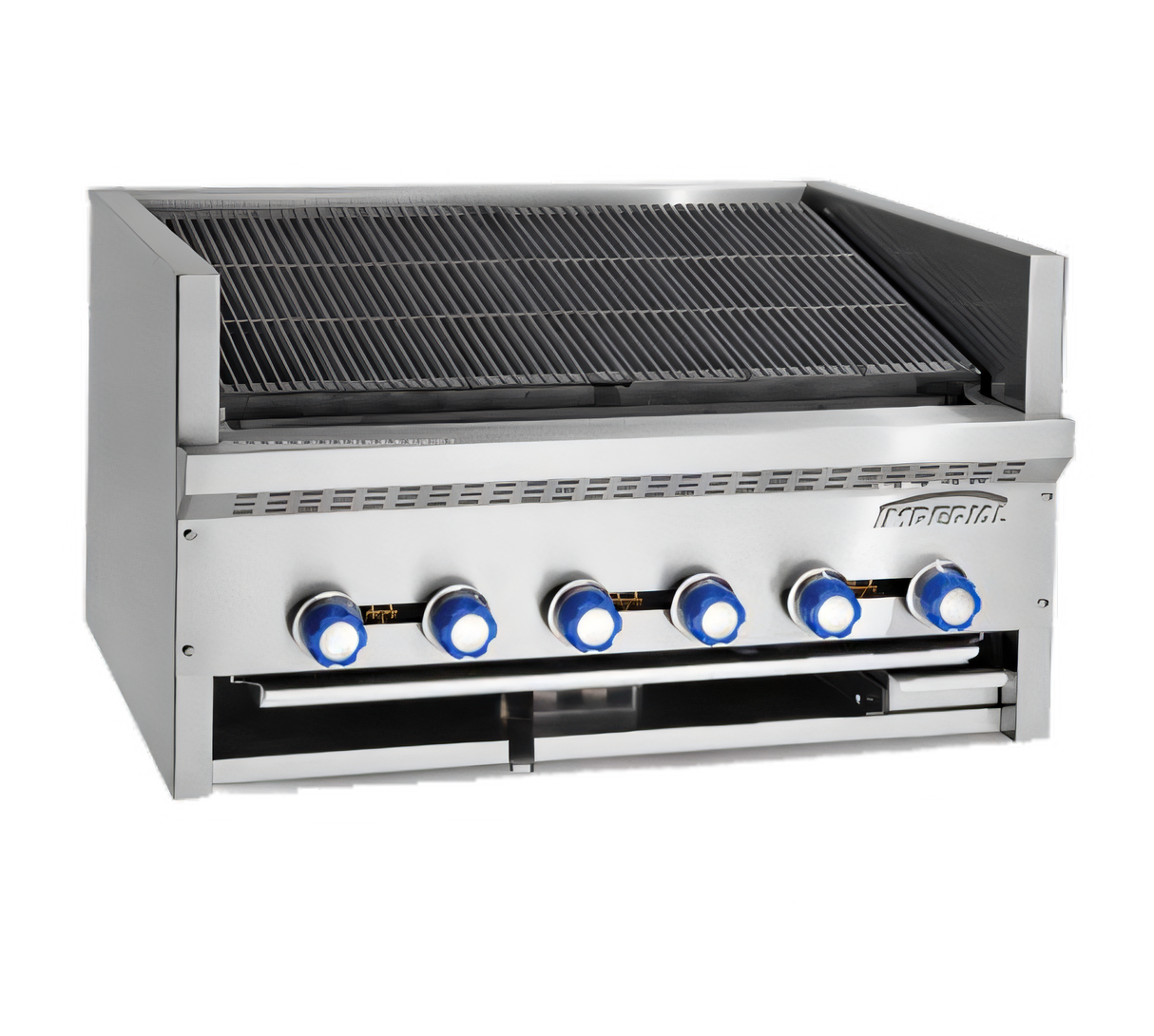

Imperial (Middleby) IAB-24 Steakhouse Gas Charbroilers
Description
Imperial Steakhouse™ Countertop Charbroiler – 24" (Model IABR-24)
80 000 BTU gas broiler with 3-position cast-iron grateGive every protein that unmistakable steakhouse sear without committing valuable floor space. The 24-inch Imperial Steakhouse countertop charbroiler delivers high-intensity heat, superior heat retention and precision control in a compact, easy-to-clean package—perfect for restaurants, bars, food trucks and catering kitchens.
Performance & Design Highlights

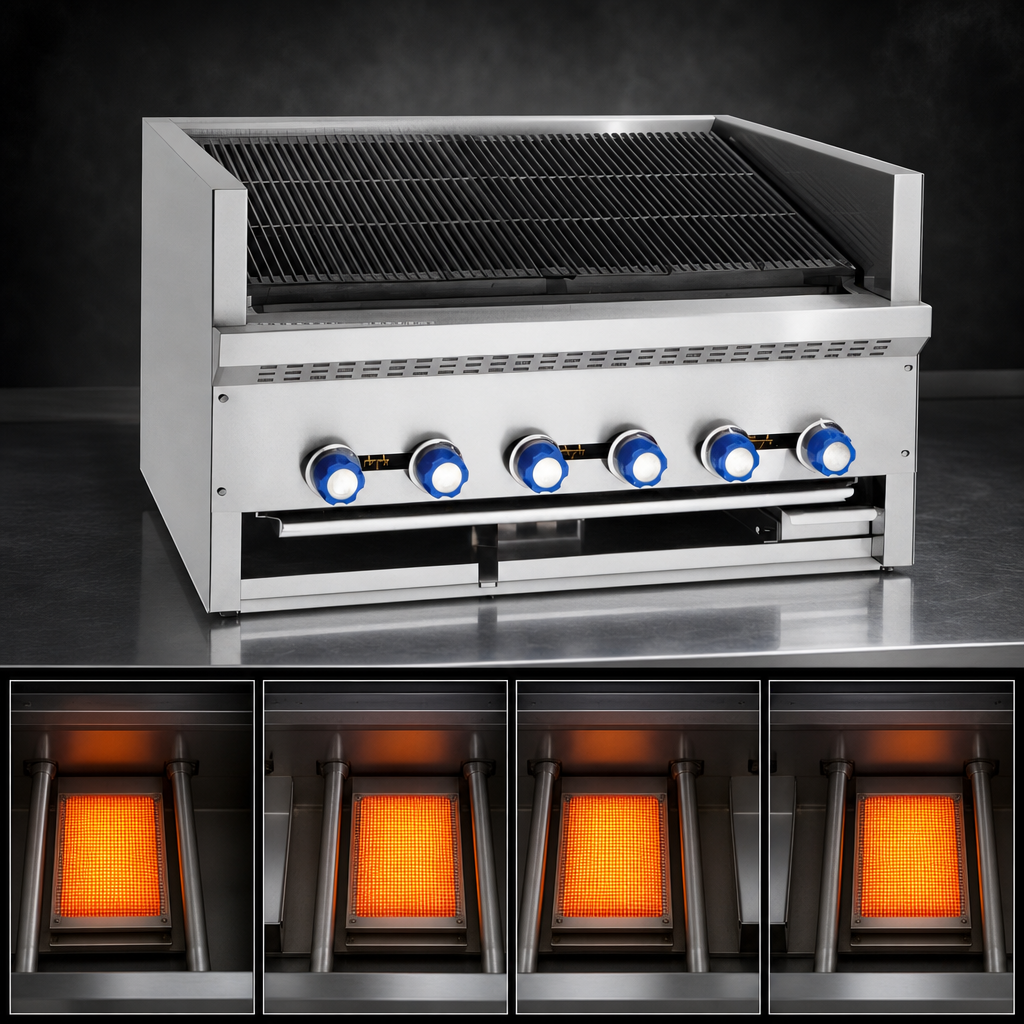

- Four individually controlled 20 000 BTU/hr stainless steel burners (total 80 000 BTU / 23 kW).
- Cast-iron radiants sit above each burner to maximize heat retention and distribute heat evenly across the grate.

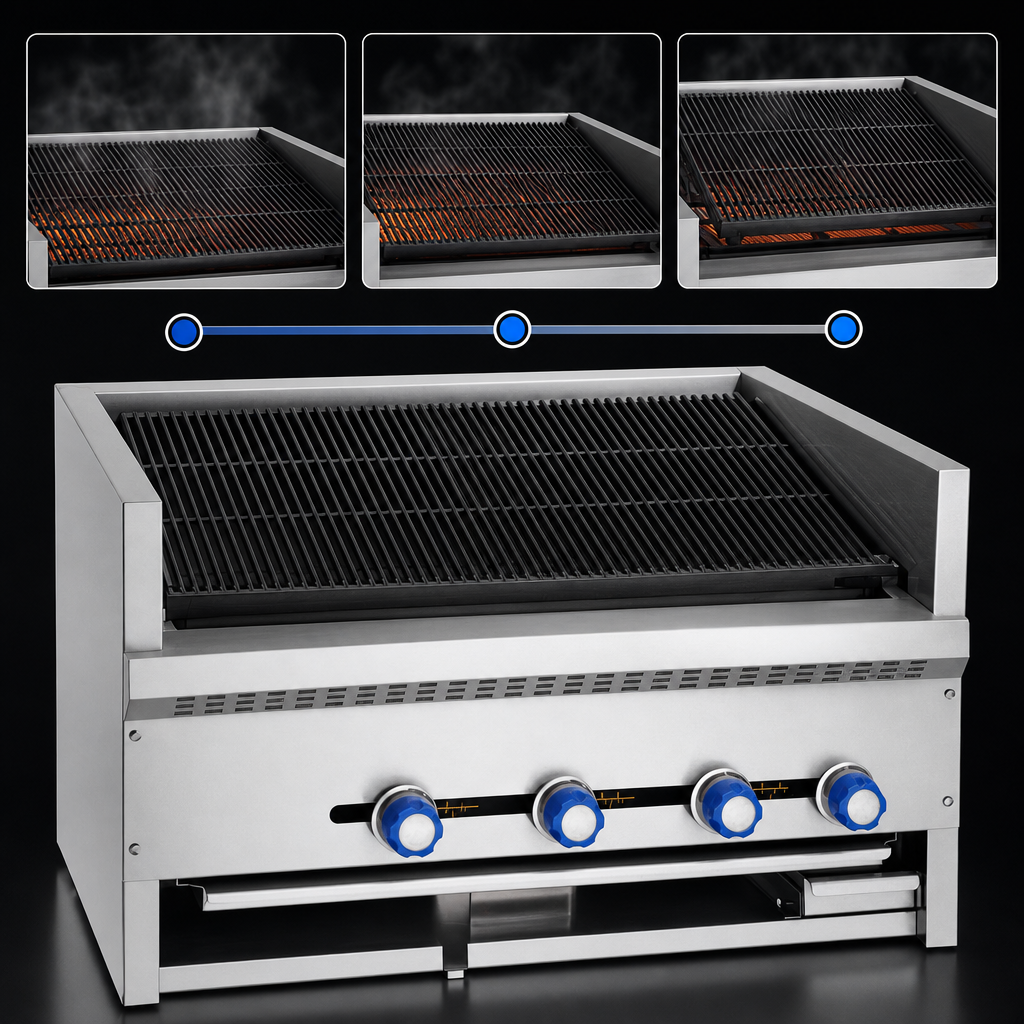

- Heavy-duty 9-bar cast-iron top grate with 3 heat-zone positions for versatile cooking temperatures.
- Slanted cooking surface & built-in grease trough on every grate blade help channel excess fat to the full-width gutter, reducing flare-ups.
- No-tool removal of grates, radiants and burners speeds up daily cleaning.
- Stainless steel front, sides & landing ledge with welded, polished seams for a professional, easy-wipe finish.
- Durable die-cast metal control knobs stand up to constant commercial use.
- Fully insulated cooktop conserves energy and keeps exterior surfaces cooler.
Technical Specifications
| Model | IABR-24 (cast-iron radiants) |
|---|---|
| Overall Dimensions (W × D × H) | 24" × 28-1/2" × 20" (610 × 724 × 508 mm) |
| Burners / Controls | 4 × 20 000 BTU stainless steel, individually controlled |
| Total Heat Output | 80 000 BTU / 23 kW |
| Cooking Surface | Cast-iron 9-bar grate, 3 position (slanted) |
| Gas Connection | 3/4" NPT rear manifold |
| Manifold Pressure | Natural Gas 5.0" W.C. | LP Gas 10.0" W.C. |
| Clearance | 0" to non-combustible surfaces, 8" to combustible surfaces (legs or stand required) |
| Shipping Weight | 250 lb / 113 kg |
| Certifications | cETLus, ETL Sanitation (NSF) |
| Warranty | 1-year parts & labor |
Popular Options & Accessories
- Stainless steel radiants (fast heat-up, reduced flare-ups)
- Fin-style, round-rod or reversible dual grates
- Stainless steel front shelf or equipment stand (6" casters optional)
- 3/4" gas shut-off valve, quick-disconnect & flexible gas hose kits
