Imperial (Middleby) HSICVE-1 Convection Ovens
Imperial (Middleby) HSICVE-1 Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

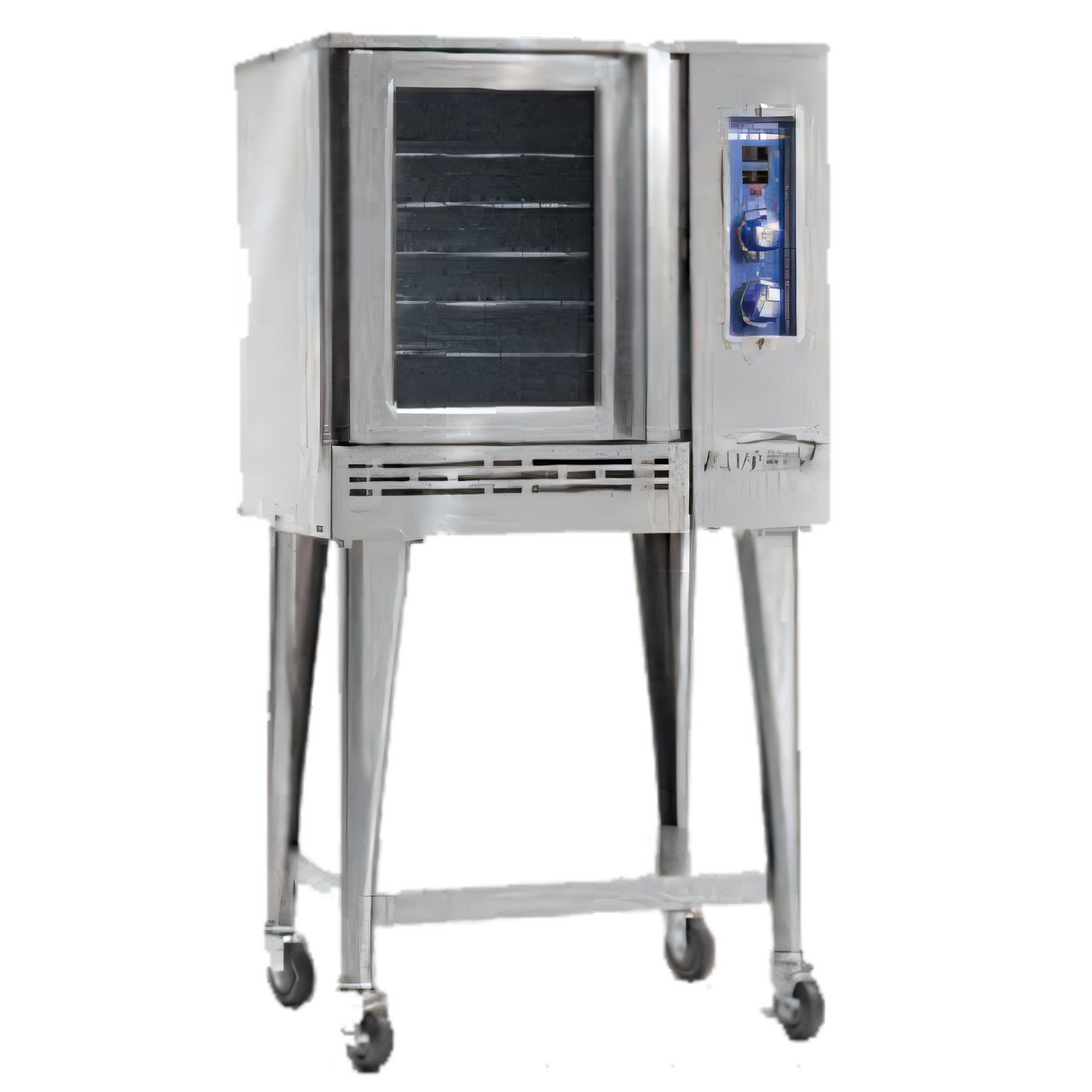

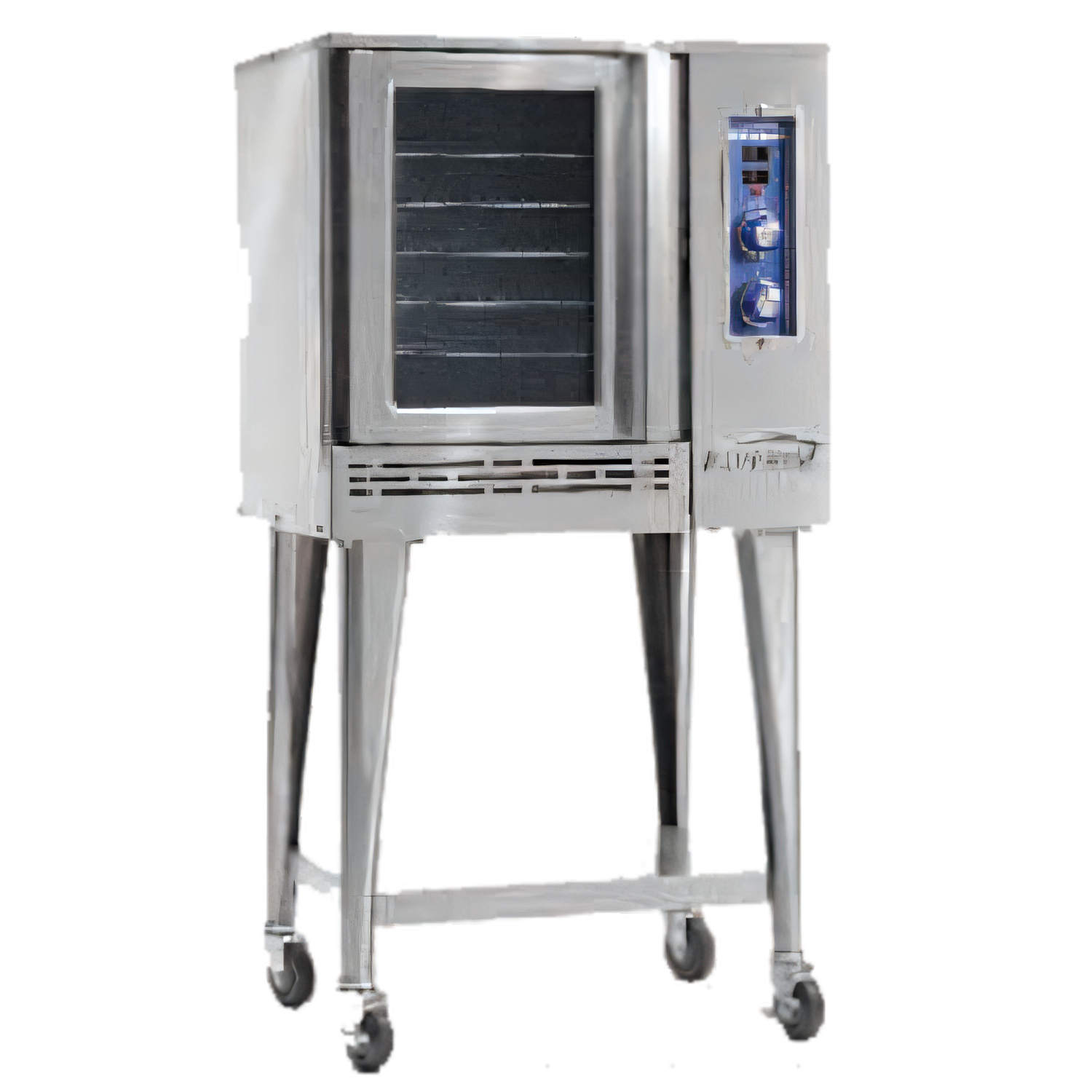

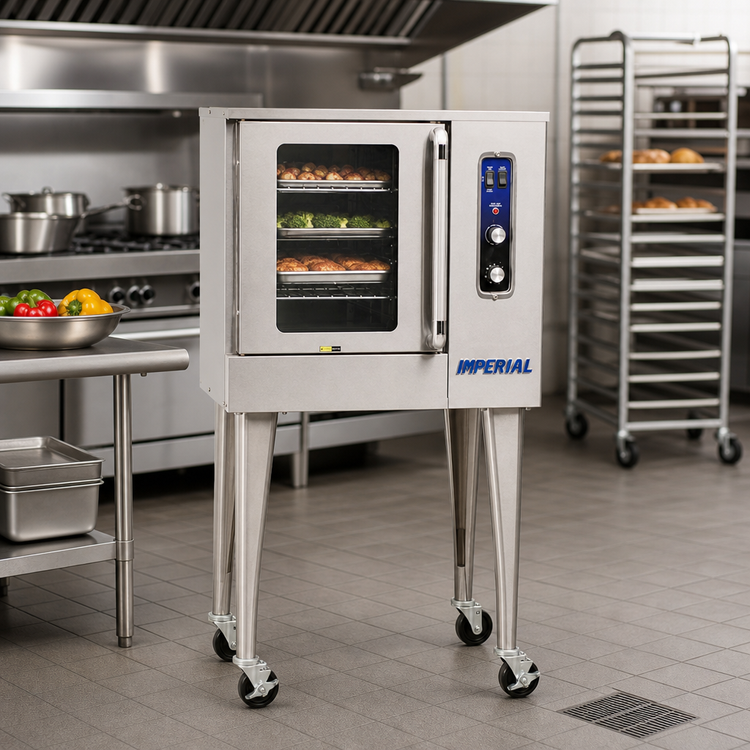

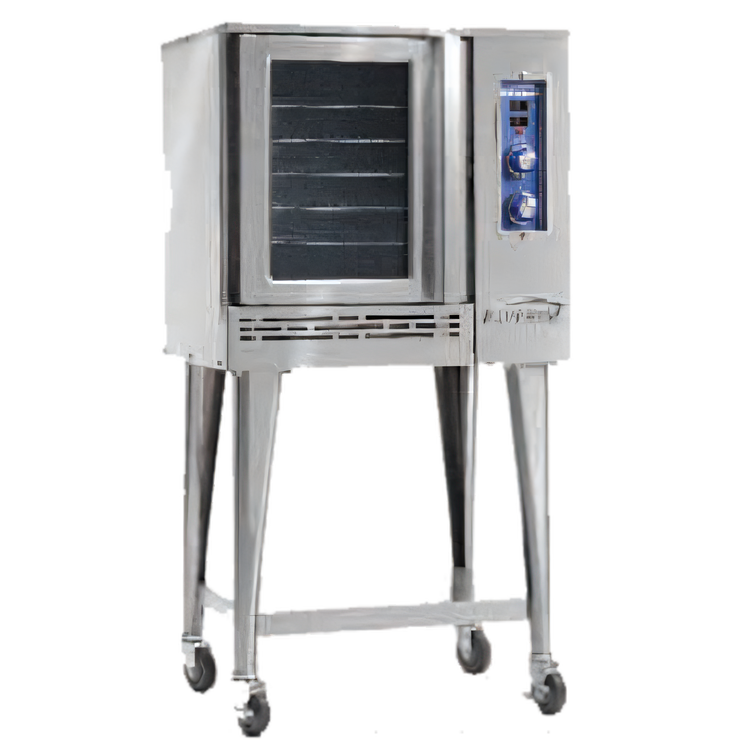

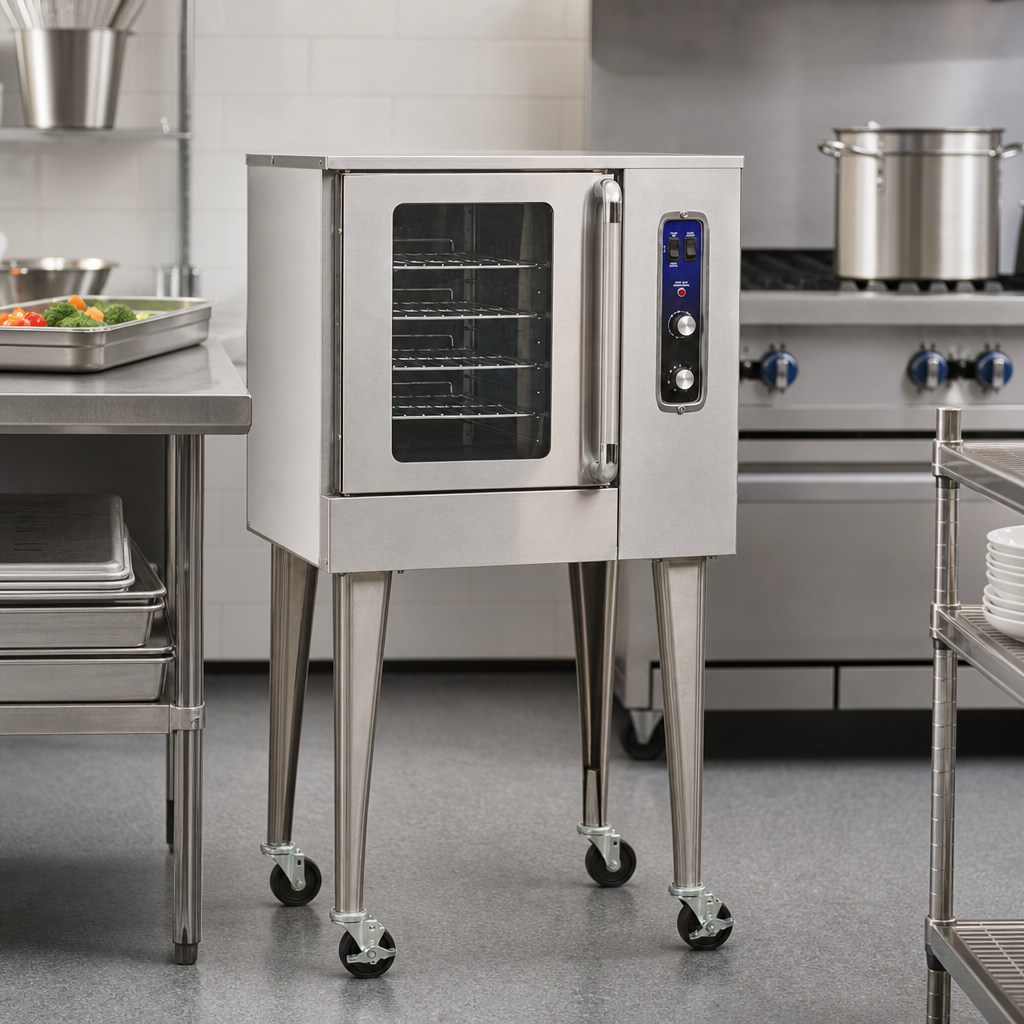

Imperial HSICVE-1 Half Size Electric Convection Oven

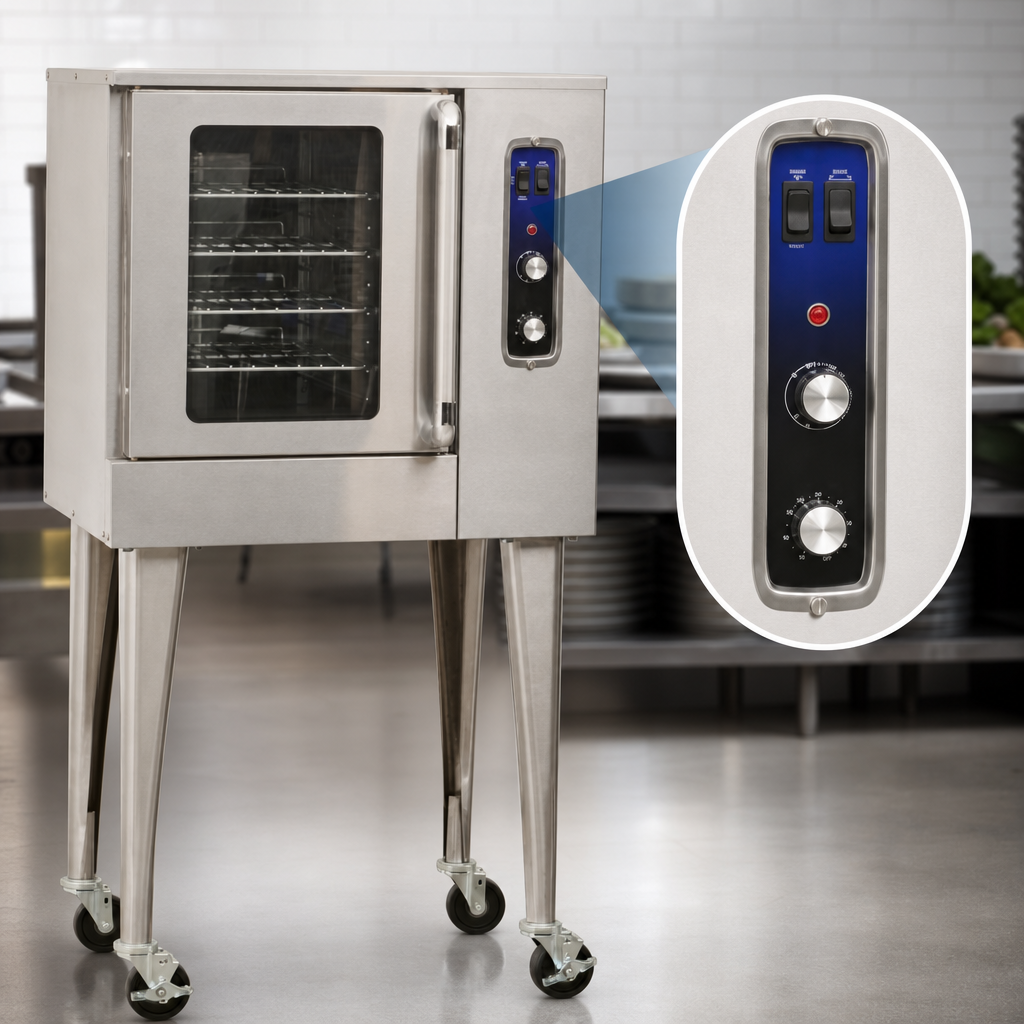

Single-Deck | Manual Controls | 1/2 HP Fan MotorBring full-size baking performance to tight spaces with Imperial’s HSICVE-1. This compact, stainless-steel workhorse delivers rapid, even heat recovery, rock-solid durability, and the flexibility your kitchen needs to keep orders moving.
Built-In Advantages
- Unique heat-baffle system circulates hot air uniformly for consistent results on every rack.
- Powerful 1/2 HP one-speed fan motor speeds recovery between loads.
- Four chrome racks standard; eight guide positions maximize pan spacing versatility.
- Bright interior light and oversized viewing window let you monitor bakes without opening the door.
- Porcelainized, coved-corner oven cavity wipes clean in seconds.
- Stainless-steel front, sides, door, top and 25" legs stand up to daily commercial punishment.
- Heavy-duty door chassis with double bearings and positive-lock mechanism prevents sagging and side-to-side play.
- Handle is anchored to an internal stainless frame—not just the skin—for long-term reliability.
- Easily removable rack guides provide open access for deep cleaning.
- cETLus, ETL-Sanitation & CE listed for worldwide safety and sanitation compliance.
At-a-Glance Specs
Model | HSICVE-1 (Half Size, Single Deck) |
---|---|
Capacity | (4) half-size sheet pans on included racks • 8 rack positions total |
Total Output | 5 kW standard • 7.5 kW optional |
Voltage / Phase | 208 V or 240 V, 1 Ø or 3 Ø • 480 V 3 Ø optional |
Amperage (5 kW) |
32 A @ 208 V 1 Ø • 28 A @ 240 V 1 Ø 21 A @ 208 V 3 Ø • 20 A @ 240 V 3 Ø 14 A @ 480 V 3 Ø |
Fan Motor | 1/2 HP, one-speed |
Exterior Dimensions | 30" W × 30" D × 58" H (762 × 762 × 1,473 mm) |
Ship Weight | 297 lb (135 kg) |
Construction | Stainless-steel exterior; porcelainized interior |
Certifications | cETLus, ETL-Sanitation, CE |
Warranty | 1 year parts & labor (factory authorized service) |
Installation & Clearance
- Legs or casters (optional) must be used on non-combustible floors.
- Provide 0" clearance to non-combustible surfaces and 6" (152 mm) to combustible surfaces.
- 2" (51 mm) overhang required if curb-mounted.
