Key specifications

Dimensions
30.5"W × 30.5"D × 36.0"H
Type
Tray & Silverware Counter
Style
Self-Elevator
Installation Type
Floor Model
Material
Stainless Steel
Top Material
304 Stainless Steel
Spec sheet
IMC/Teddy SKU: TSCL-30

IMC/Teddy TSCL-30 Self-Elevating Tray & Silverware Counter

$5,242.05
/each
Estimated to ship in 16–19 business days
Counter height
Tray slide
Sneeze guard
Work shelf
Top gauge

Need something else? Contact us.

Included: IMC/Teddy warranty 1-year warranty against defects in workmanship and material

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $485/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Tray & Silverware Counter
Style Self-Elevator
Installation Type Floor Model
Material Stainless Steel
Top Material 304 Stainless Steel
Frame Material Stainless Steel
Apron Material Stainless Steel
Working Height 36 in
Top Gauge 16 Gauge
Frame Gauge 14 Gauge
Apron Gauge 18 Gauge
Channel Edge 2 in
Caster Diameter 5 in
Caster Type Heavy-Duty Ball-Bearing Swivel
Brake Casters 2
Cylinder Count 10
Suspension Type Self-Leveling Coil Spring

Description

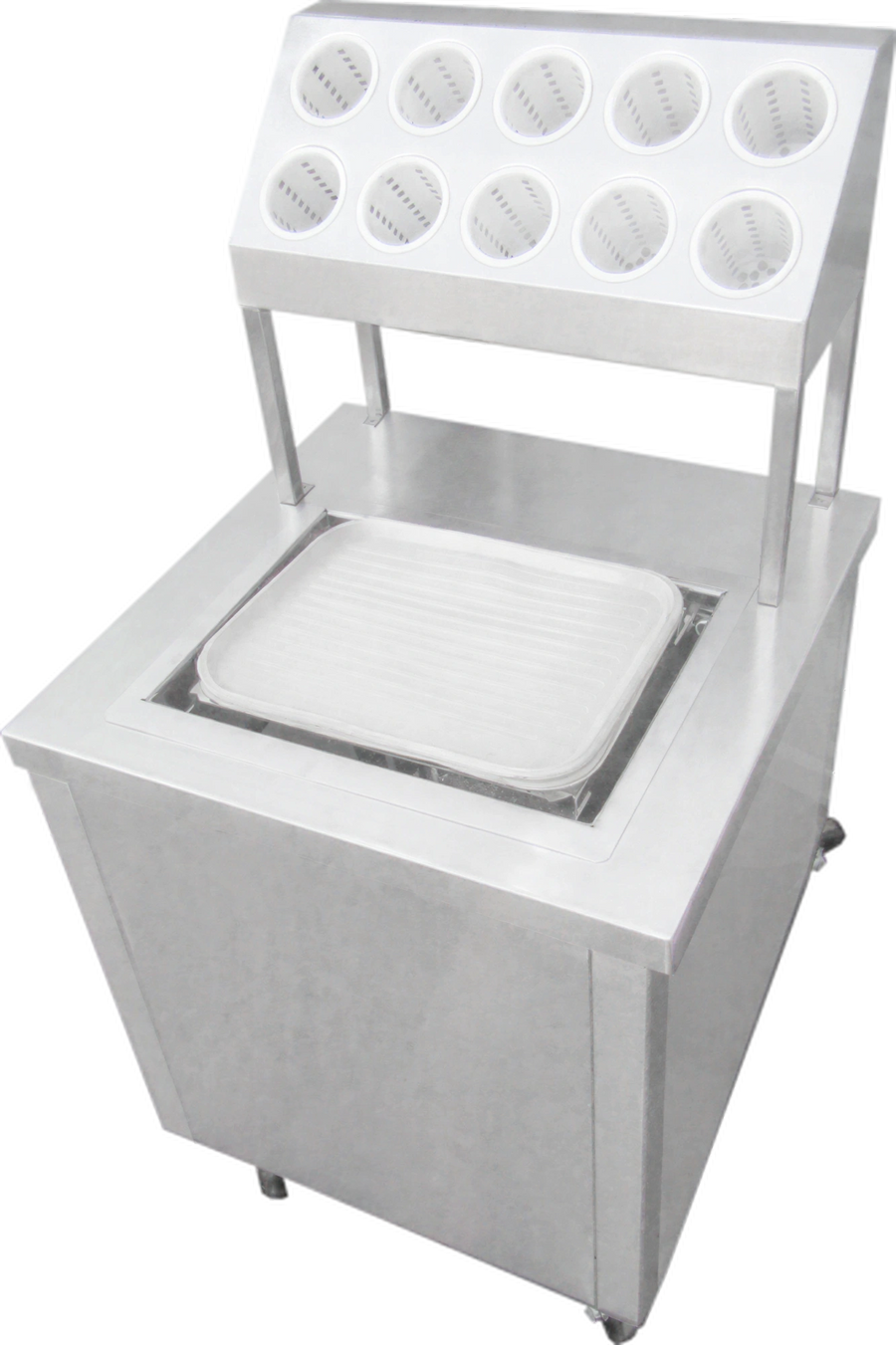

IMC/Teddy TSCL-30 is a tray and silverware counter with a self-elevating tray dispenser, silverware cylinders, and a stainless steel caster base.

  • 16-gauge Type 304 stainless steel top with a 2-inch channel edge.
  • 14-gauge stainless steel frame and 18-gauge stainless steel apron.
  • Self-leveling coil spring suspension with adjustable dispensing height.
  • Five-inch heavy-duty ball-bearing swivel casters, including two with brakes.

Overall Dimensions:

30.5"W x 30.5"D x 36.0"H

Product Weight:

160.0 lb

Self-Elevating Tray Dispenser

The all-stainless tray dispenser uses a self-leveling coil spring suspension system, with dispensing height adjustable through spring disengagement.

Silverware Cylinders

The TSCL-30 drawing identifies 10 cylinders for silverware service.

304 Stainless Steel Top

The 16-gauge Type 304 stainless steel top has a 2-inch channel edge, welded corners, and a ground and polished finish.

Welded Stainless Steel Frame

The 14-gauge stainless steel frame has multi-formed, fully welded vertical corner uprights.

Caster Base

The unit has 5-inch heavy-duty ball-bearing swivel casters, with two casters fitted with brakes.

Interlocking Assembly

Quick-release latches are provided to join units together.

Frequently Asked Questions

The unit is 30.5 in wide, 30.5 in deep, and 36 in high.
The top is made from 16-gauge Type 304 stainless steel.
Yes. It uses a self-leveling coil spring suspension system, and the dispensing height can be adjusted through spring disengagement.
Two of the five-inch swivel casters are fitted with brakes.
The TSCL-30 drawing identifies 10 silverware cylinders.
