Play manufacturer video for IMC/Teddy TBV-2-18132 Table-Mounted Double-Tier Overshelf, 18"D x 132"W, 18-Gauge Stainless SteelIMC/Teddy TBV-2-18132 Table-Mounted Double-Tier Overshelf, 18"D x 132"W, 18-Gauge Stainless Steel
SKU: TBV-2-18132
$2,348.40

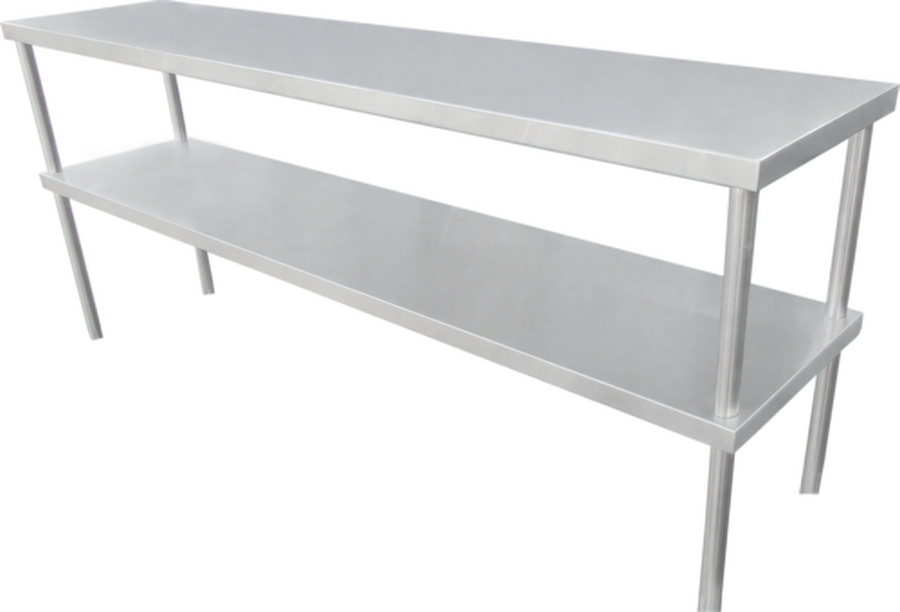

The IMC/Teddy TBV-2-18132 is a double-tier overshelf designed for table mounting. It is constructed from 18-gauge Type 300 series stainless steel and has a brushed finish.
- 18 in deep by 132 in wide
- Four legs or tubular uprights provide provisions for mounting to a table
- The first shelf mounts 18 in above the work surface, and the second mounts 12 in above the first
- Each shelf has a 1.5 in down bend on four sides and a 0.5 in return
Overall Dimensions:
132.0"W x 18.0"DProduct Weight:
101.0 lbDouble-tier design
Provides two shelf levels for table-mounted storage.
Table mounting
Four legs or tubular uprights include provisions for mounting to a table.
Stainless steel construction
Constructed from 18-gauge Type 300 series stainless steel.
Brushed finish
The shelves have a brushed finish.
Shelf spacing
The first shelf is mounted 18 in above the work surface, and the second shelf is mounted 12 in above the first.
Shelf edge profile
Each shelf has a 1.5 in down bend on four sides and a 0.5 in return.
Configuration
Double tier
Mounting
Table mounted
Material
Type 300 series stainless steel
Gauge
18 gauge
Finish
Brushed
Width
132 in
Depth
18 in
Number of legs
4
Upright diameter
1.25 in
First shelf height above work surface
18 in
Second shelf height above first shelf
12 in
Down bend
1.5 in on four sides
Return
0.5 in
Documents
Frequently Asked Questions
Yes. It is a double-tier table-mounted overshelf.
It is constructed from 18-gauge Type 300 series stainless steel.
It is designed for table mounting and has four legs or tubular uprights with provisions for mounting to a table.
The shelf is 18 in deep and 132 in wide.
The first shelf is mounted 18 in above the work surface, and the second shelf is mounted 12 in above the first shelf.
