Play manufacturer video for IMC/Teddy SQ-2430 Square Grid Floor Trough Grating, 24" W x 30" L x 1" D, 304 Stainless Steel, SerratedIMC/Teddy SQ-2430 Square Grid Floor Trough Grating, 24" W x 30" L x 1" D, 304 Stainless Steel, Serrated
SKU: SQ-2430
$670.80

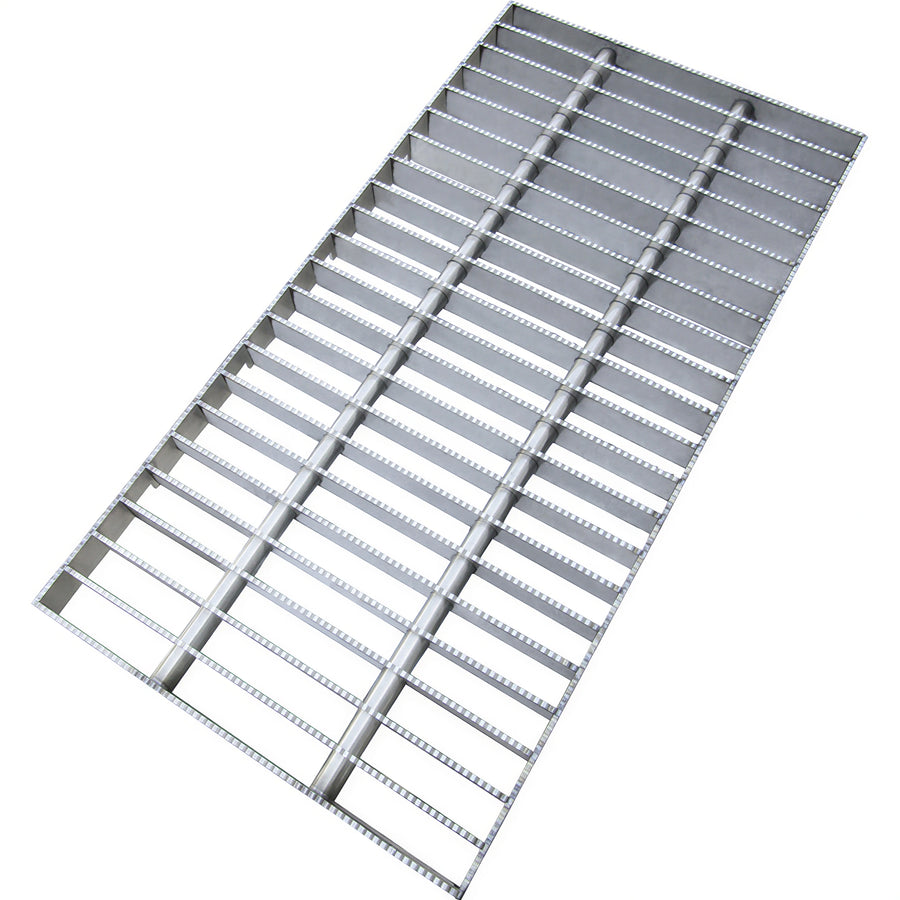

The IMC/Teddy SQ-2430 is a square grid floor trough grating measuring 24 in wide by 30 in long and 1 in deep.
It is constructed from 304 stainless steel bars measuring 1 in x 1/8 in. The top surface is serrated for an anti-slip surface, with 11/16 in x 2-1/2 in grid openings.
- Bars are set in a vertical position with banding on all four sides to form a closed grid.
- Connected by Type 300 series stainless steel rods.
- Designed to permit quick, efficient and thorough cleaning.
Overall Dimensions:
30.0"W x 24.0"D x 1.0"HProduct Weight:
46.0 lb304 stainless steel construction
Built from 304 stainless steel bars for the SQ-2430 grating.
Serrated anti-slip surface
The top surface is serrated to provide an anti-slip surface.
Closed square grid
Vertical bars with banding on all four sides form a closed grid.
Specified grid openings
The grid openings measure 11/16 in x 2-1/2 in.
Stainless steel rod connection
The grating is connected by Type 300 series stainless steel rods.
Model
SQ-2430
Product type
Square grid floor trough grating
Width
24 in
Length
30 in
Depth
1 in
Material
304 stainless steel
Bar size
1 in x 1/8 in
Grid size
11/16 in x 2-1/2 in
Surface
Serrated anti-slip surface
Bar orientation
Vertical
Weight
46 lb
Frequently Asked Questions
The SQ-2430 measures 24 in wide by 30 in long and 1 in deep.
The grating is constructed from 304 stainless steel.
Yes. The top surface is serrated for an anti-slip surface.
The grid openings measure 11/16 in x 2-1/2 in.
