Play manufacturer video for IMC/Teddy SG-ATS-72 Anti-Splash Subway Floor Trough Grating, 72" Wide x 1" Deep, 304 Stainless SteelIMC/Teddy SG-ATS-72 Anti-Splash Subway Floor Trough Grating, 72" Wide x 1" Deep, 304 Stainless Steel
SKU: SG-ATS-72
$1,295.40

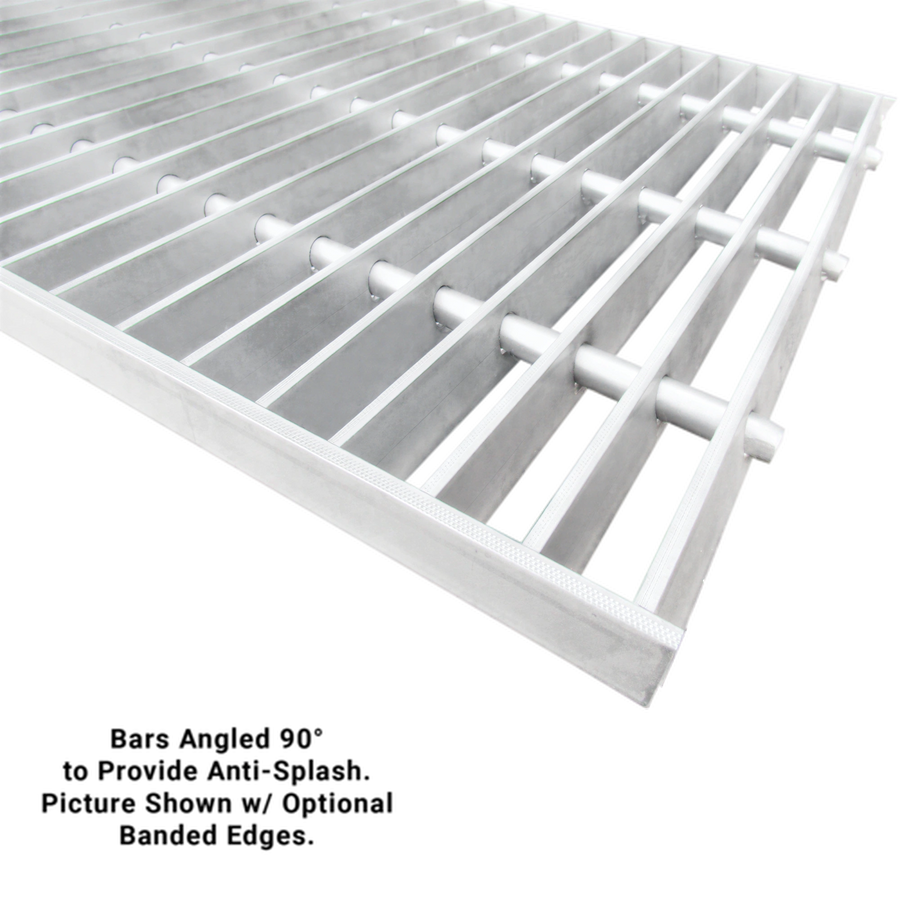

The IMC/Teddy SG-ATS-72 is an anti-splash subway floor trough grating constructed from 304 stainless steel. Its 90-degree angled bars provide the anti-splash design, while machine-serrated bars provide an anti-slip surface.
- 72 in wide x 1 in deep
- 1 in x 3/16 in stainless steel bars
- Three 1/2 in connecting rods
- 13/16 in clearance between bars
- Priced per lineal foot
Overall Dimensions:
72.0"D x 1.0"HProduct Weight:
48.0 lbAnti-splash design
Bars are angled 90 degrees to provide an anti-splash design.
Stainless steel construction
Constructed from 304 stainless steel with 1 in x 3/16 in bars.
Connecting rods
Three 1/2 in rods connect the bars.
Bar spacing
Bars have 13/16 in clearance between them.
Anti-slip surface
SG-ATS bars are machine serrated to provide an anti-slip surface.
Construction
304 stainless steel
Bar size
1 in x 3/16 in
Bar orientation
Angled 90 degrees
Connecting rods
3 rods, 1/2 in diameter
Bar spacing
13/16 in clearance
Nominal width
72 in
Depth
1 in
Weight
48 lb
Pricing unit
Per lineal foot
Frequently Asked Questions
The SG-ATS-72 is constructed from 304 stainless steel.
Its bars are angled 90 degrees to provide an anti-splash design.
The grating is 72 in wide and 1 in deep.
It is priced per lineal foot.
