Play manufacturer video for IMC/Teddy SG-ATS-3084 Anti-Splash Subway Floor Trough Grating, 30" W x 84" L x 1" D, 304 Stainless SteelIMC/Teddy SG-ATS-3084 Anti-Splash Subway Floor Trough Grating, 30" W x 84" L x 1" D, 304 Stainless Steel
SKU: SG-ATS-3084
$4,124.40
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout

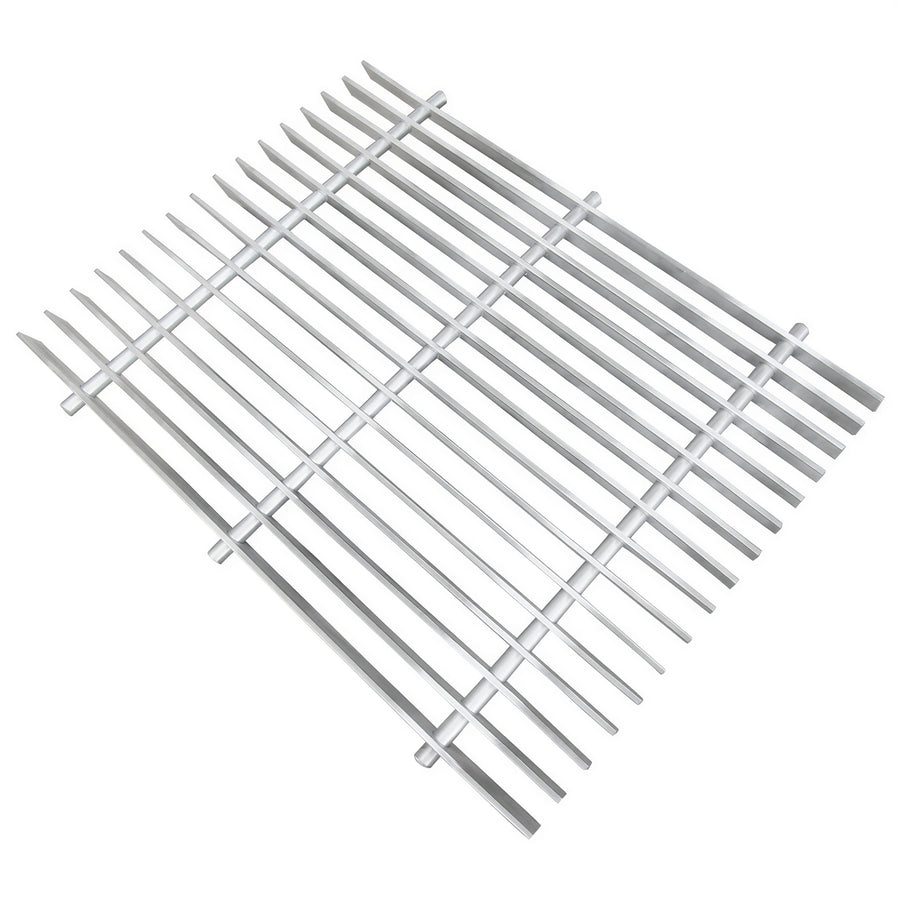

The IMC/Teddy SG-ATS-3084 is an anti-splash subway floor trough grating measuring 30 in wide x 84 in long x 1 in deep.
It is constructed from 304 stainless steel with 1 in x 3/16 in bars angled 90 degrees to provide an anti-splash design. Three 1/2 in 304 stainless steel rods connect the bars, with 13/16 in clearance between bars.
Overall Dimensions:
84.0"W x 30.0"D x 1.0"HProduct Weight:
140.0 lbAnti-splash design
Bars are angled 90 degrees to provide anti-splash performance.
304 stainless steel construction
The grating uses 304 stainless steel bar stock and connecting rods.
Bar construction
Bars measure 1 in x 3/16 in and are set in a vertical position.
Rod connection
Three 1/2 in 304 stainless steel rods connect the bars.
Bar clearance
The clearance between bars is 13/16 in.
Product type
Subway floor trough grating
Material
304 stainless steel
Overall size
30 in W x 84 in L x 1 in D
Bar size
1 in x 3/16 in
Connecting rods
3 x 1/2 in 304 stainless steel rods
Bar clearance
13/16 in
Bar angle
90°
Weight
140 lb
Frequently Asked Questions
The grating measures 30 in wide x 84 in long x 1 in deep.
It is constructed from 304 stainless steel.
The bars are angled 90 degrees to provide an anti-splash design.
The SG-ATS-3084 has three 1/2 in 304 stainless steel connecting rods.
The clearance between bars is 13/16 in.
