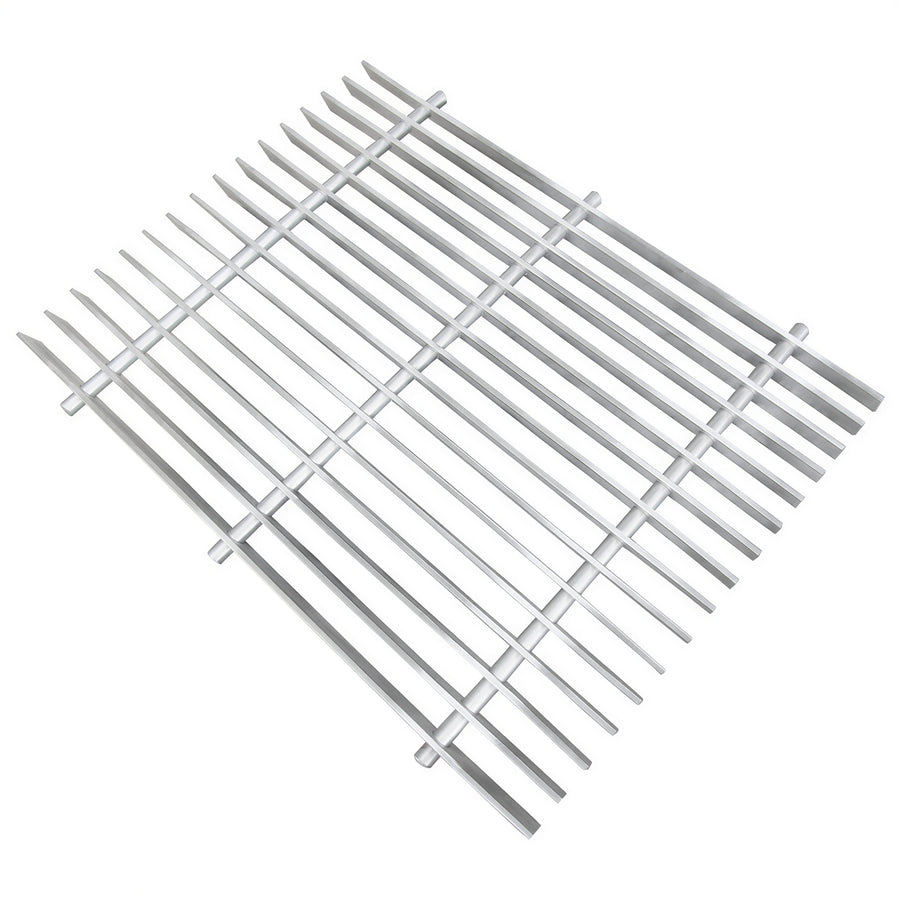

The IMC/Teddy SG-ATS-3048 is an anti-splash subway floor trough grating measuring 30 inches wide by 48 inches long by 1 inch deep.

  • 304 stainless steel construction: Built with 1 inch x 3/16 inch stainless steel bars.
  • Anti-splash design: Bars are angled 90 degrees to provide anti-splash performance.
  • Bar connection: Through-connected by three 1/2 inch 304 stainless steel rods.
  • Bar spacing: Provides 13/16 inch clearance between bars.
  • Machine-serrated bars: The SG-ATS design uses machine-serrated bars for an anti-slip surface.
  • Open construction: Bars are set in a vertical position with open top and bottom.

Overall Dimensions:

48.0"W x 30.0"D x 1.0"H

Product Weight:

80.0 lb

Anti-splash design

The bars are angled 90 degrees to provide anti-splash performance.

304 stainless steel construction

The grating uses 304 stainless steel bars and connection rods.

Bar construction

The bars measure 1 inch x 3/16 inch and are set in a vertical position.

Three-rod connection

Three 1/2 inch 304 stainless steel rods connect the bars.

13/16 inch bar spacing

The grating provides 13/16 inch clearance between bars.

Machine-serrated surface

SG-ATS bars are machine serrated to provide an anti-slip surface.

Open top and bottom

The vertical bar construction has an open top and bottom.

Product type Anti-splash subway floor trough grating
Overall size 30 in W x 48 in L x 1 in D
Construction 304 stainless steel
Bar size 1 in x 3/16 in
Connection rods Three 1/2 in 304 stainless steel rods
Bar spacing 13/16 in
Bar angle 90 degrees
Surface Machine-serrated bars
Product weight 80.0 lb

Documents

PDF Cutsheet PDF Download PDF Floor troughs brochure PDF Download

Frequently Asked Questions

The grating is 30 inches wide by 48 inches long by 1 inch deep.
It is constructed of 304 stainless steel.
Its bars are angled 90 degrees to provide an anti-splash design.
The bars are through-connected by three 1/2 inch 304 stainless steel rods.
The clearance between bars is 13/16 inch.
