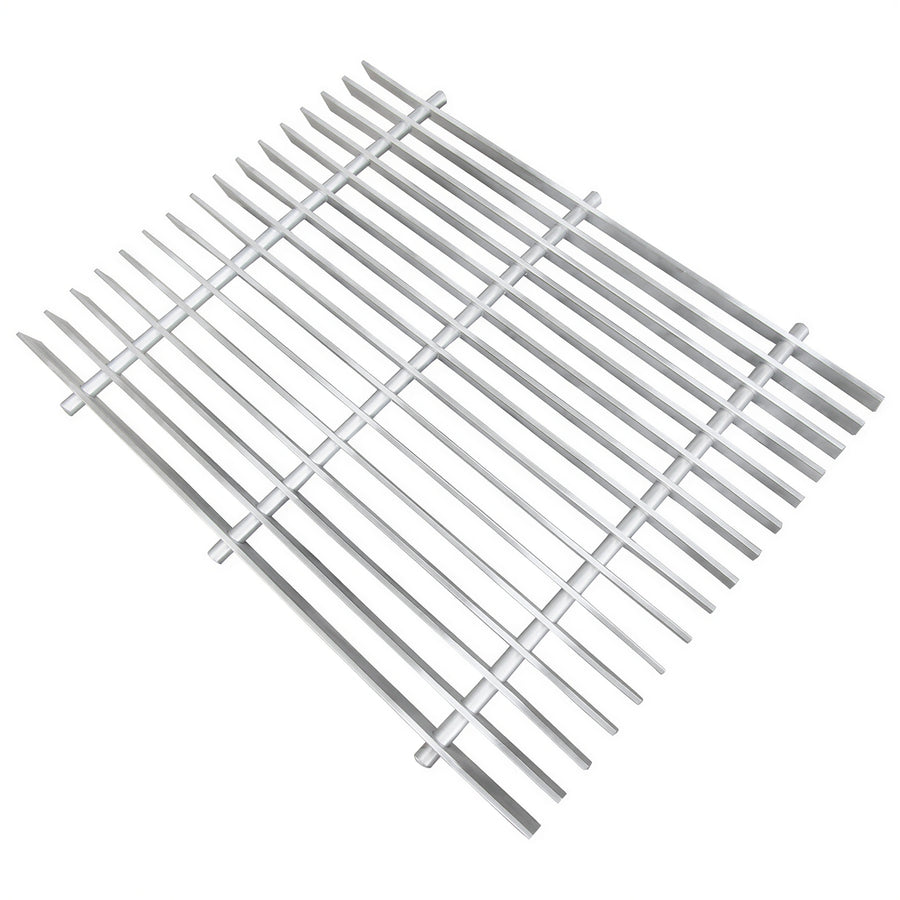

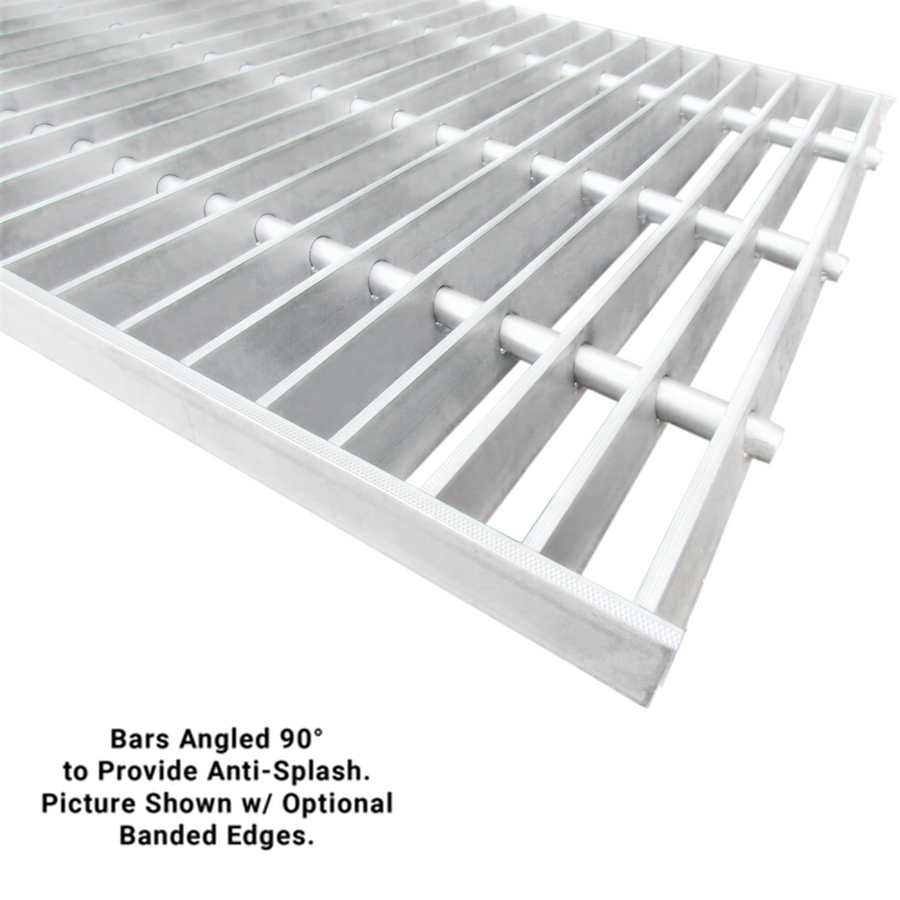

The IMC/Teddy SG-ATS-2496 is an anti-splash subway floor trough grating measuring 24 in wide by 96 in long by 1 in deep.

  • Construction: 304 stainless steel with 1 in x 3/16 in bars.
  • Anti-splash design: Bars are angled 90 degrees to provide anti-splash performance.
  • Connection: Through-connected by three 1/2 in #304 stainless steel rods.
  • Spacing: 13/16 in clearance between bars.

Overall Dimensions:

96.0"W x 24.0"D x 1.0"H

Product Weight:

128.0 lb

Anti-splash design

Bars are angled 90 degrees to provide anti-splash performance.

304 stainless steel construction

Constructed with 1 in x 3/16 in 304 stainless steel bars.

Rod-connected construction

Bars are through-connected by three 1/2 in #304 stainless steel rods.

Bar spacing

Provides 13/16 in clearance between bars.

Material 304 stainless steel
Overall size 24 in W x 96 in L x 1 in D
Overall height 1 in
Bar size 1 in x 3/16 in
Connecting rods 3 x 1/2 in #304 stainless steel rods
Bar spacing 13/16 in
Bar angle 90 degrees
Weight 128 lb

Documents

PDF Cutsheet PDF Download PDF Floor troughs brochure PDF Download

Frequently Asked Questions

The grating is 24 in wide by 96 in long by 1 in deep.
It is constructed of 304 stainless steel.
The bars are angled 90 degrees to provide anti-splash performance.
The clearance between bars is 13/16 in.
