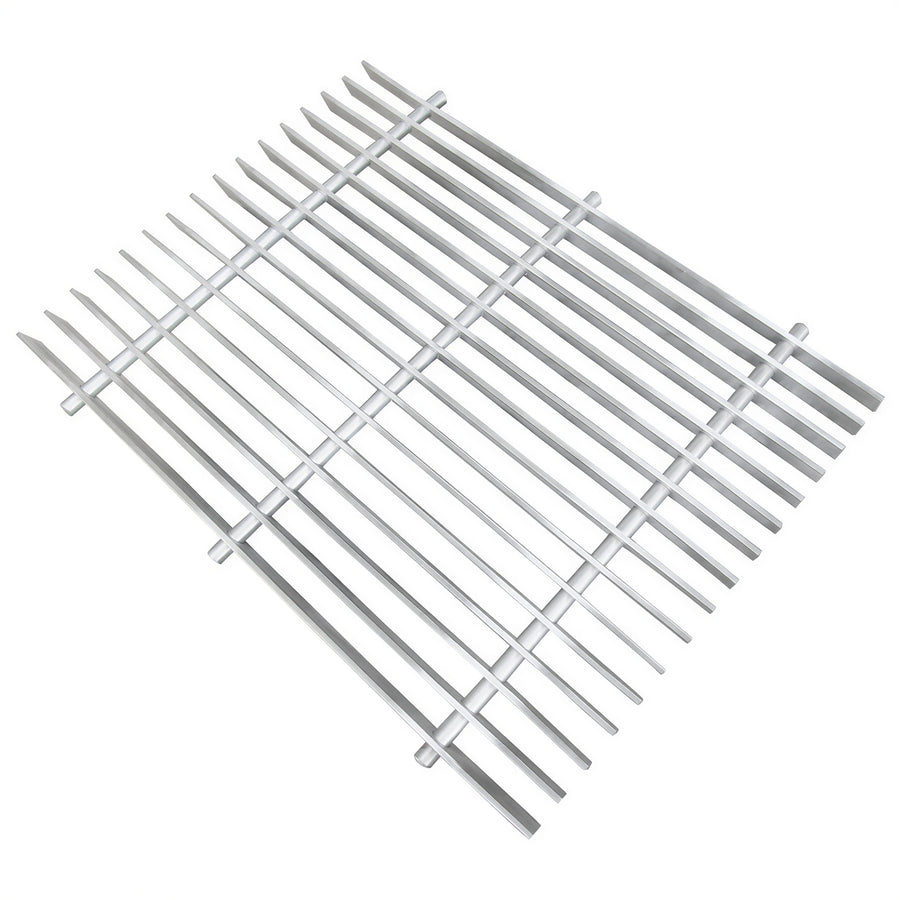

IMC/Teddy SG-ATS-2184 Anti-Splash Subway Floor Trough Grating, 304 Stainless Steel, 21" W x 84" L x 1" D

SKU: SG-ATS-2184
$3,346.20
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations

The IMC/Teddy SG-ATS-2184 is an anti-splash subway floor trough grating measuring 21 inches wide by 84 inches long by 1 inch deep.

  • Constructed from 304 stainless steel with 1 inch x 3/16 inch bars.
  • Bars are angled 90 degrees to provide an anti-splash design.
  • Three 1/2 inch 304 stainless steel rods connect the bars with 13/16 inch spacing.
  • SG-ATS bars are machine serrated to provide an anti-slip surface.

Overall Dimensions:

84.0"W x 21.0"D x 1.0"H

Product Weight:

112.0 lb

Anti-splash bar design

The bars are angled 90 degrees to provide an anti-splash design.

304 stainless steel construction

The grating uses 304 stainless steel bars and connecting rods.

Connected bar assembly

Three 1/2 inch 304 stainless steel rods connect the bars.

Machine-serrated surface

SG-ATS bars are machine serrated to provide an anti-slip surface.

Standard bar spacing

The clearance between bars is 13/16 inch.

Product type Anti-splash subway floor trough grating
Overall size 21 in W x 84 in L x 1 in D
Construction 304 stainless steel
Bar size 1 in x 3/16 in
Connecting rods 3 x 1/2 in 304 stainless steel rods
Bar spacing 13/16 in
Bar orientation Angled 90 degrees
Surface Machine serrated
Product weight 112 lb

Documents

PDF Cutsheet PDF Download PDF Floor troughs brochure PDF Download

Frequently Asked Questions

The grating is 21 inches wide by 84 inches long by 1 inch deep.
It is constructed from 304 stainless steel.
The bars are angled 90 degrees to provide an anti-splash design.
The bar spacing is 13/16 inch.
The product weight is 112 lb.
