Play manufacturer video for IMC/Teddy SG-ATS-1260 Anti-Splash Subway Floor Trough Grating, 12" W x 60" L x 1" D, 304 Stainless SteelIMC/Teddy SG-ATS-1260 Anti-Splash Subway Floor Trough Grating, 12" W x 60" L x 1" D, 304 Stainless Steel
SKU: SG-ATS-1260
$1,528.80

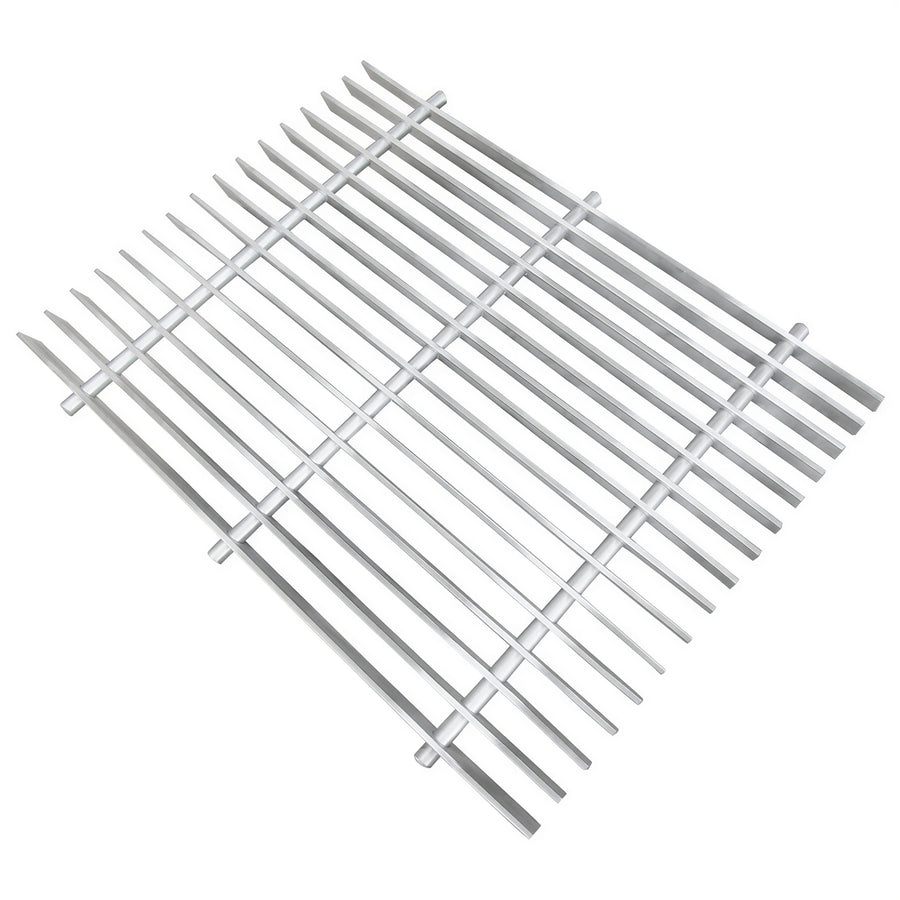

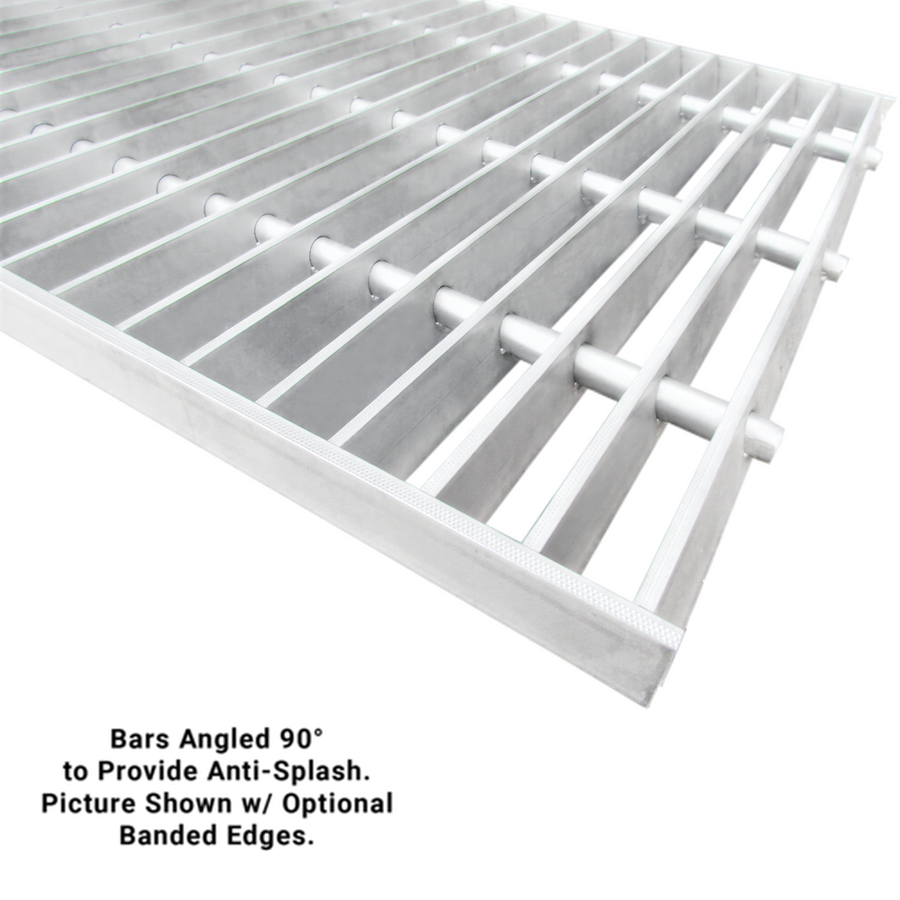

The IMC/Teddy SG-ATS-1260 is an anti-splash subway floor trough grating measuring 12 inches wide by 60 inches long by 1 inch deep. It is constructed from 304 stainless steel bar stock and connecting rods.
- Bars are angled 90 degrees to provide anti-splash performance.
- 1-inch x 3/16-inch bars are through-connected by two 1/2-inch stainless steel rods.
- Bars provide 13/16-inch clearance between each bar.
- SG-ATS bars are machine serrated to provide an anti-slip surface.
Overall Dimensions:
60.0"W x 12.0"D x 1.0"HProduct Weight:
40.0 lbAnti-splash design
Bars are angled 90 degrees to provide anti-splash performance.
304 stainless steel construction
The grating uses 304 stainless steel bar stock and connecting rods.
Through-connected bars
The bars are connected by two 1/2-inch stainless steel rods.
Standard bar spacing
The clearance between bars is 13/16 inch.
Machine-serrated surface
SG-ATS bars are machine serrated to provide an anti-slip surface.
Product type
Anti-splash subway floor trough grating
Short side
12 in
Long side
60 in
Grating depth
1 in
Construction
304 stainless steel
Bar size
1 in x 3/16 in
Connecting rods
(2) 1/2 in 304 stainless steel rods
Bar spacing
13/16 in
Frequently Asked Questions
The grating is 12 inches wide by 60 inches long by 1 inch deep.
It is constructed from 304 stainless steel.
Its bars are angled 90 degrees to provide an anti-splash design.
The clearance between bars is 13/16 inch.
