Play manufacturer video for IMC/Teddy SG-ATS-1230 Anti-Splash Subway Floor Trough Grating, 12" x 30" x 1", 304 Stainless SteelIMC/Teddy SG-ATS-1230 Anti-Splash Subway Floor Trough Grating, 12" x 30" x 1", 304 Stainless Steel
SKU: SG-ATS-1230
$945.00

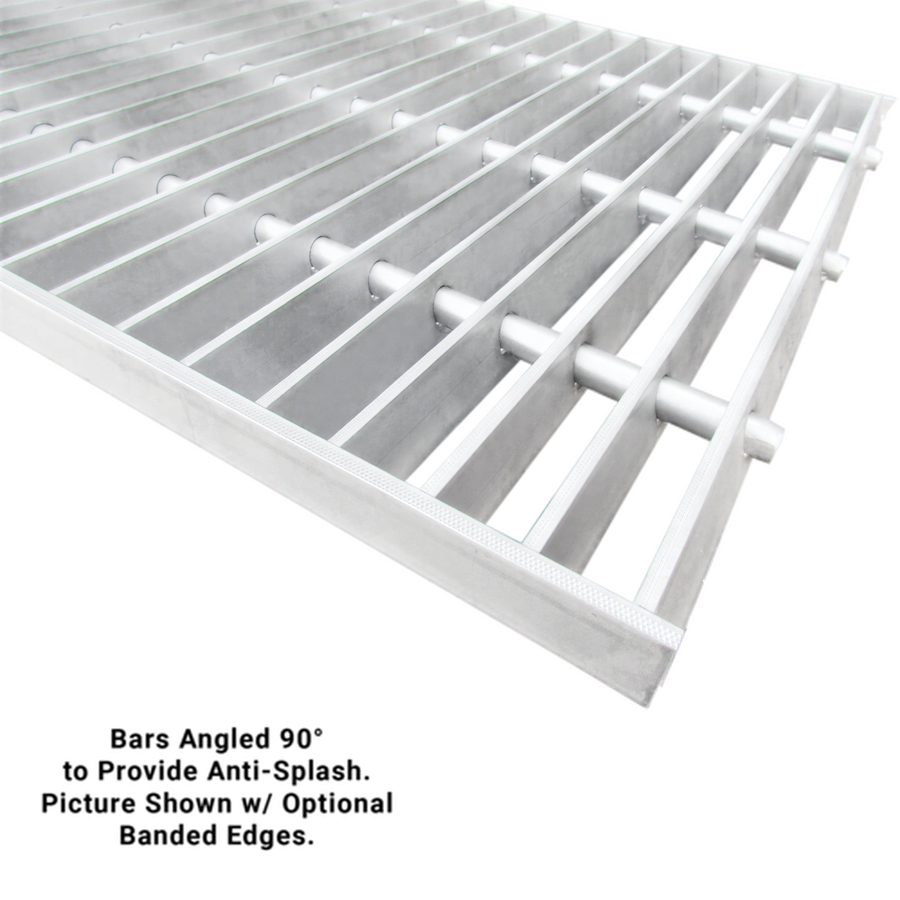

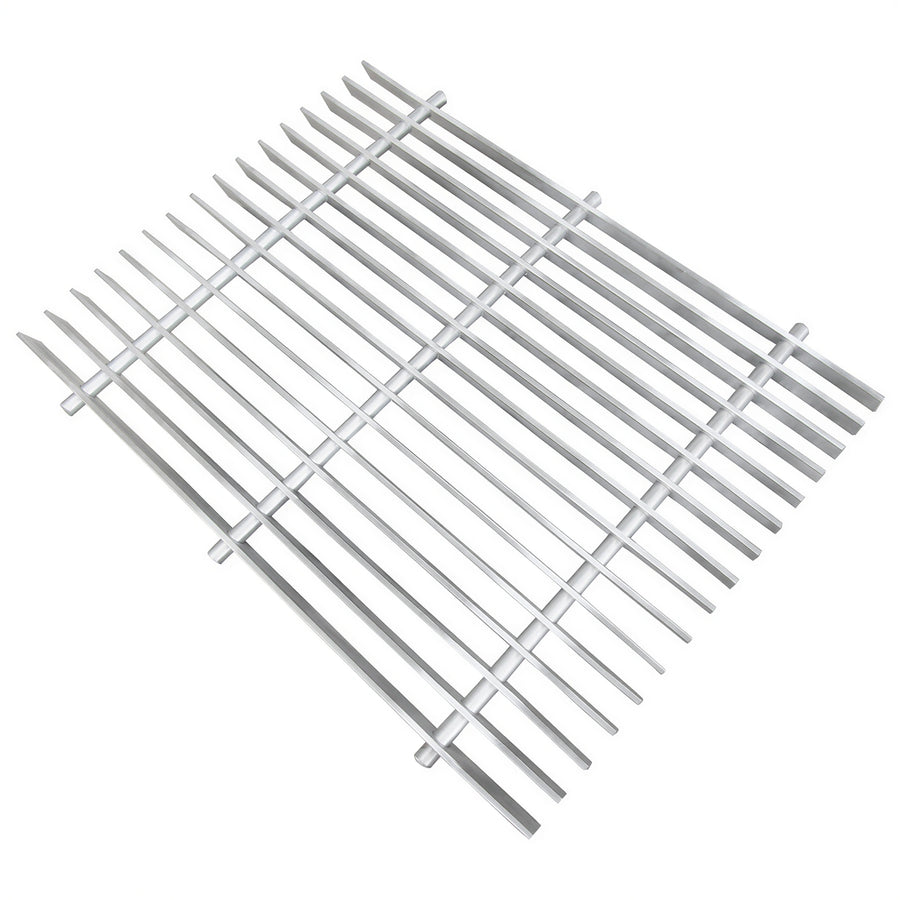

The IMC/Teddy SG-ATS-1230 is an anti-splash subway floor trough grating measuring 12 in wide x 30 in long x 1 in deep.
- Construction: 304 stainless steel with 1 in x 3/16 in bars.
- Anti-splash design: Bars are angled 90 degrees to provide anti-splash performance.
- Connection: Two 1/2 in 304 stainless steel rods connect the bars through the grating.
- Spacing: 13/16 in clearance between bars.
- Surface: SG-ATS bars are machine serrated to provide an anti-slip surface.
Overall Dimensions:
30.0"W x 12.0"D x 1.0"HProduct Weight:
20.0 lbAnti-splash design
Bars are angled 90 degrees to provide anti-splash performance.
304 stainless steel construction
The grating uses 304 stainless steel, including the bar stock and connecting rods.
Vertical bar construction
The 1 in x 3/16 in bars are set in a vertical position with open top and bottom.
Through-connected rods
Two 1/2 in 304 stainless steel rods connect the bars through the grating.
Standard bar spacing
The clearance between bars is 13/16 in.
Machine-serrated surface
SG-ATS bars are machine serrated to provide an anti-slip surface.
Product type
Anti-splash subway floor trough grating
Construction
304 stainless steel
Bar size
1 in x 3/16 in
Bar orientation
Vertical; angled 90 degrees for anti-splash design
Connection
Through-connected by 2 x 1/2 in 304 stainless steel rods
Bar spacing
13/16 in clearance
Bar surface
Machine serrated
Overall size
12 in W x 30 in L x 1 in D
Frequently Asked Questions
The grating is 12 in wide x 30 in long x 1 in deep.
It is constructed of 304 stainless steel, with 1 in x 3/16 in bars and two 1/2 in 304 stainless steel connecting rods.
The bars are angled 90 degrees to provide an anti-splash design.
The clearance between bars is 13/16 in.
The SG-ATS bars are machine serrated to provide an anti-slip surface.
