Play manufacturer video for IMC/Teddy SG-ATS-12108 Anti-Splash Subway Floor Trough Grating, 12" W x 108" L x 1" D, 304 Stainless SteelIMC/Teddy SG-ATS-12108 Anti-Splash Subway Floor Trough Grating, 12" W x 108" L x 1" D, 304 Stainless Steel
SKU: SG-ATS-12108
$2,750.40

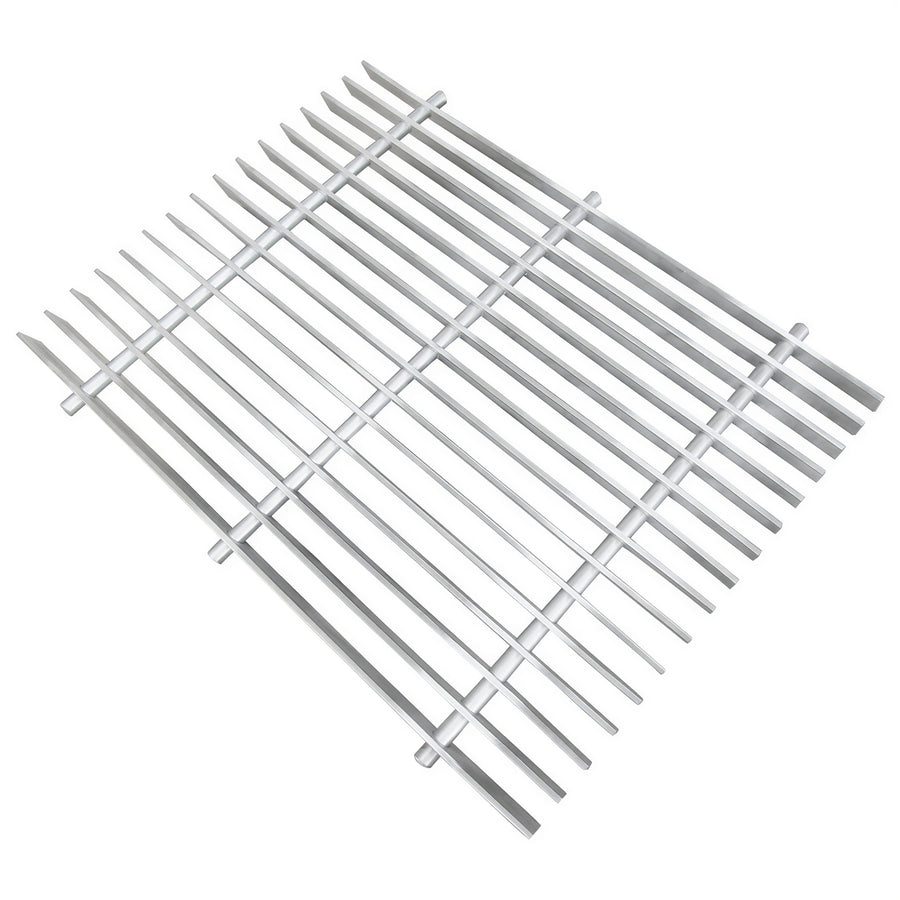

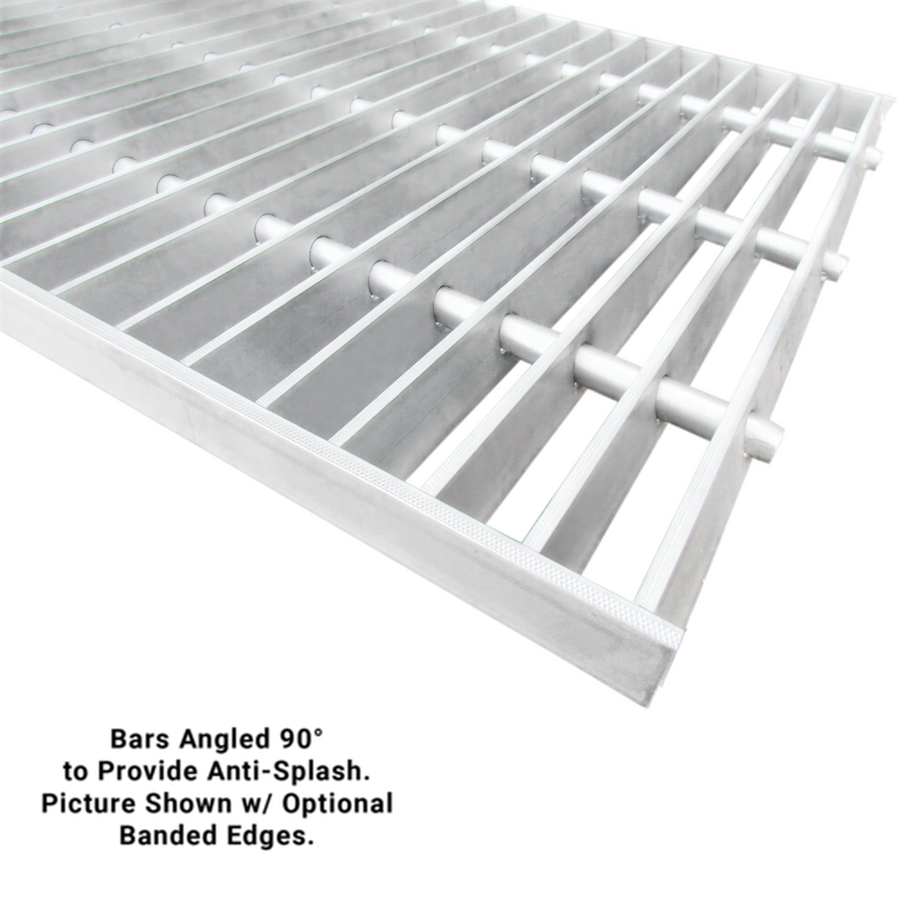

The IMC/Teddy SG-ATS-12108 is an anti-splash subway floor trough grating measuring 12 in wide x 108 in long x 1 in deep. It is constructed from 304 stainless steel with 1 in x 3/16 in bars.
- Bars are angled 90 degrees to provide an anti-splash design.
- Two 1/2 in 304 stainless steel rods connect the bars.
- Bars have 13/16 in spacing and are machine serrated for an anti-slip surface.
- The grating has an open-top and open-bottom construction.
Overall Dimensions:
108.0"W x 12.0"D x 1.0"HProduct Weight:
72.0 lbAnti-splash design
Bars are angled 90 degrees to provide anti-splash performance.
304 stainless steel construction
The grating uses 304 stainless steel construction, including the bar stock and connecting rods.
Through-connected bars
Two 1/2 in 304 stainless steel rods connect the bars.
Machine-serrated surface
SG-ATS bars are machine serrated to provide an anti-slip surface.
Open construction
The bars are set with an open top and bottom.
Construction
304 stainless steel
Overall size
12 in W x 108 in L x 1 in D
Bar size
1 in x 3/16 in
Connecting rods
Two 1/2 in 304 stainless steel rods
Bar spacing
13/16 in
Bar angle
90 degrees
Weight
72 lb
Frequently Asked Questions
The grating measures 12 in wide x 108 in long x 1 in deep.
It is constructed from 304 stainless steel.
Its bars are angled 90 degrees to provide an anti-splash design.
The bars are through-connected by two 1/2 in 304 stainless steel rods.
The bars have 13/16 in clearance between them.
