Play manufacturer video for IMC/Teddy SG-ADA-3084 Subway Floor Trough Grating, 30" W x 84" L x 1" D, 304 Stainless SteelIMC/Teddy SG-ADA-3084 Subway Floor Trough Grating, 30" W x 84" L x 1" D, 304 Stainless Steel
SKU: SG-ADA-3084
$4,124.40
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout

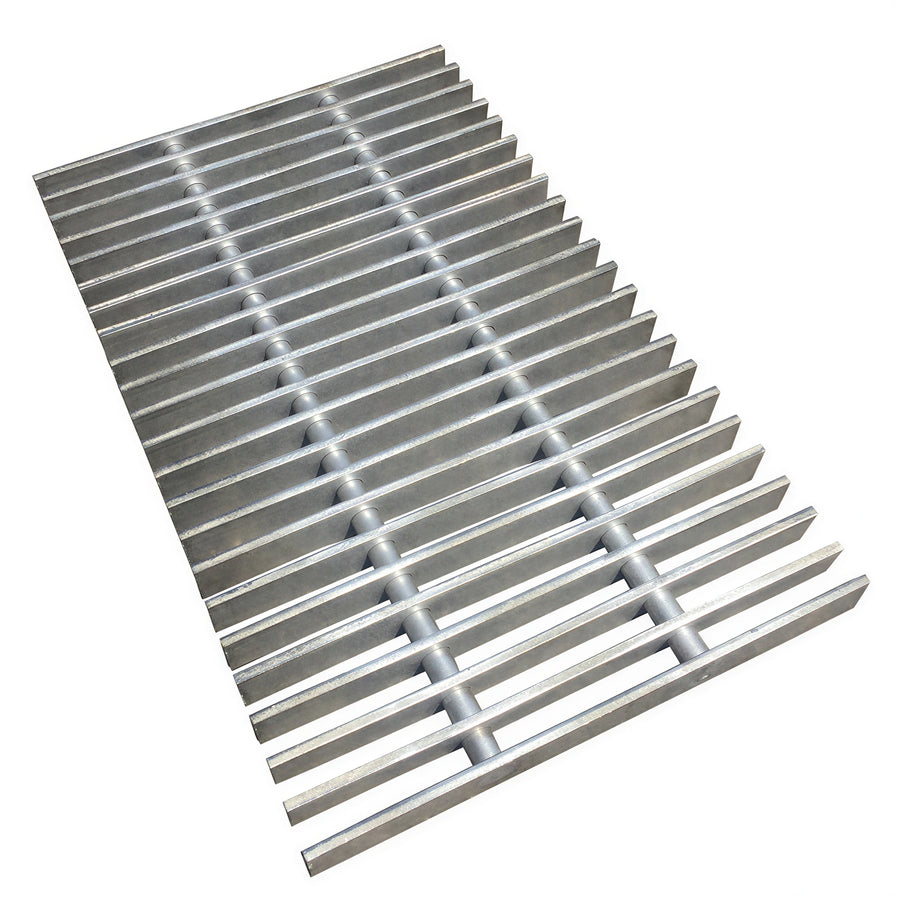

The IMC/Teddy SG-ADA-3084 is an ADA subway-style floor trough grating measuring 30 in wide, 84 in long, and 1 in deep. It is constructed from 304 stainless steel bar stock.
- Uses 1 in x 3/16 in bars set in a vertical position.
- Bars are through-connected by three 1/2 in 304 stainless steel rods.
- Provides 1/2 in spacing between bars.
- The open-top and open-bottom design supports thorough cleaning.
Overall Dimensions:
84.0"W x 30.0"D x 1.0"HProduct Weight:
280.0 lb304 stainless steel construction
Constructed from 304 stainless steel bar stock.
Vertical bar design
Uses 1 in x 3/16 in bars set in a vertical position with open top and bottom.
Three-rod connection
The bars are through-connected by three 1/2 in 304 stainless steel rods.
1/2 in bar spacing
Bars are spaced 1/2 in apart.
ADA subway grating
The SG-ADA product guide identifies this grating design as ADA compliant.
Product type
ADA subway floor trough grating
Overall size
30 in W x 84 in L x 1 in D
Construction
304 stainless steel
Bar size
1 in x 3/16 in
Bar orientation
Vertical
Connecting rods
Three 1/2 in 304 stainless steel rods
Bar spacing
1/2 in
Weight
280 lb
Frequently Asked Questions
The grating is 30 in wide, 84 in long, and 1 in deep.
The SG-ADA-3084 is constructed from 304 stainless steel.
The bars have 1/2 in spacing.
The bars are through-connected by three 1/2 in 304 stainless steel rods.
