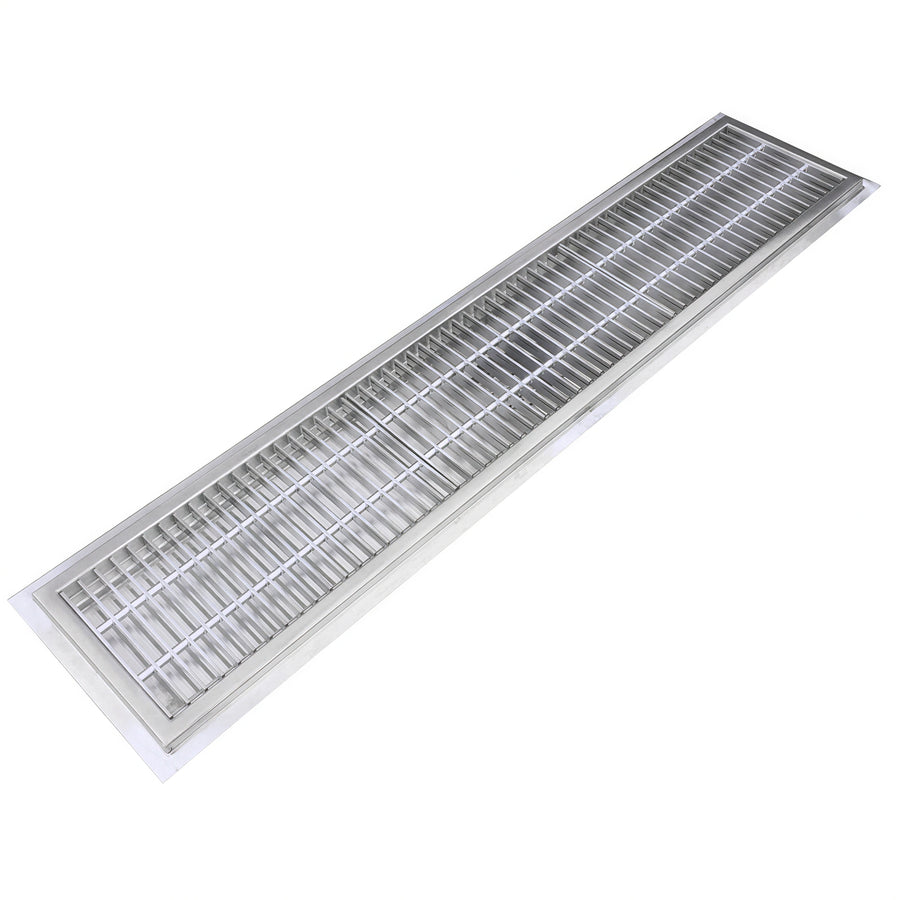

Play manufacturer video for IMC/Teddy SFT30-30-SG Shallow Stainless Steel Floor Trough with Drain, Subway Grating, 360"W x 30"D x 2"DeepIMC/Teddy SFT30-30-SG Shallow Stainless Steel Floor Trough with Drain, Subway Grating, 360"W x 30"D x 2"Deep
The IMC/Teddy SFT30-30-SG is a shallow floor trough measuring 360 in wide by 30 in deep with a 2 in overall depth. It is constructed from 14 ga 304 stainless steel and includes a drain and SG subway-style grating.
Designed for food preparation facilities where floor thickness limits trough depth to 2 in, the trough has integral coves, a recessed flange for floor tile and a grout pocket, and a pitched floor for drainage.
- SG grating is constructed from Type 300 series stainless steel bars.
- The trough includes a 6 1/2 in OD waste outlet with a 4 in OD tailpiece.
- A perforated waste basket is provided at each drain.
- Joints are TIG welded and leak-proof, with exposed surfaces finished in brushed satin.
Overall Dimensions:
360.0"W x 30.0"D x 2.0"HProduct Weight:
1080.0 lbShallow trough depth
The trough is 2 in deep overall for food preparation facilities where floor thickness limits trough depth.
Stainless steel construction
The trough is constructed from 14 ga 304 stainless steel.
Drainage design
Integral coves and a 1/4 in per foot pitch direct drainage toward the 6 1/2 in OD waste outlet.
SG subway-style grating
The included SG grating uses Type 300 series stainless steel bars.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
Drain components
The trough includes a 4 in OD tailpiece and a perforated waste basket at the drain.
Anchoring and welded joints
Welded anchor straps secure the trough to the floor, while TIG-welded joints are leak-proof.
