Play manufacturer video for IMC/Teddy SFT24-27-SGAS Shallow Floor Trough, 14-Gauge 304 Stainless Steel, Anti-Slip Subway Grating, 324"W x 24"D x 2" DeepIMC/Teddy SFT24-27-SGAS Shallow Floor Trough, 14-Gauge 304 Stainless Steel, Anti-Slip Subway Grating, 324"W x 24"D x 2" Deep

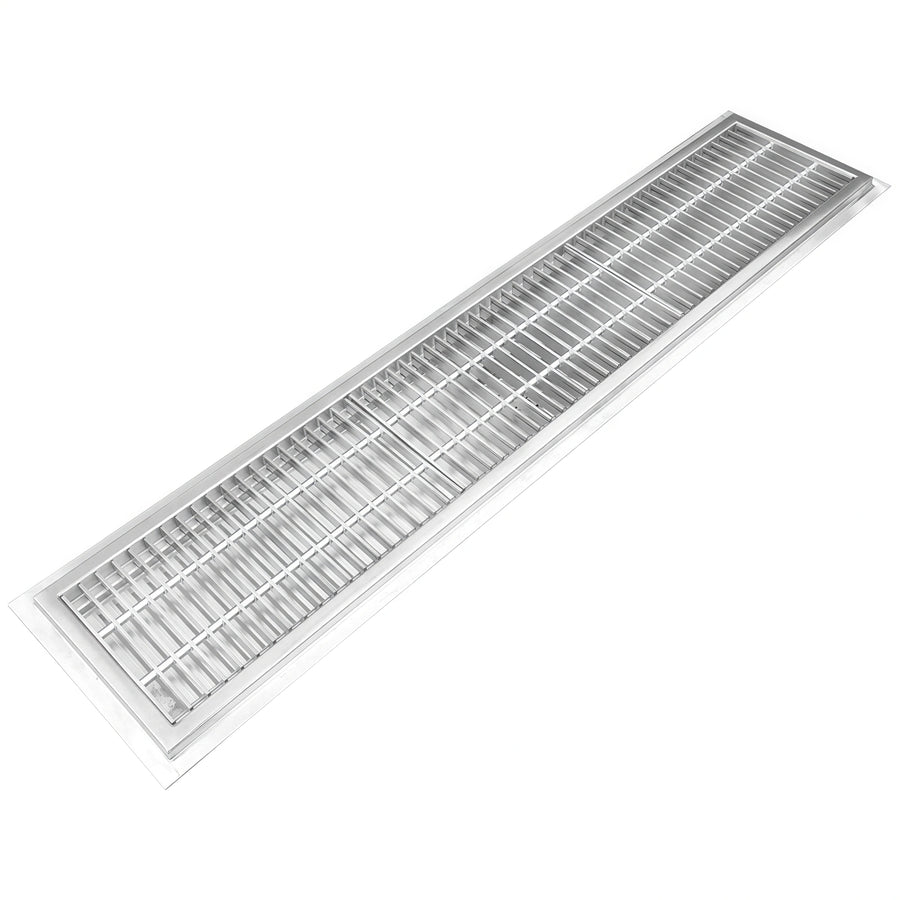

The IMC/Teddy SFT24-27-SGAS is a shallow floor trough for food preparation facilities where floor thickness limits trough depth to 2 inches. It combines a 14-gauge 304 stainless steel trough with an included drain and SGAS anti-slip subway-style grating.
- Shallow construction: 2-inch overall trough depth.
- Drainage design: Integral coves and a 1/4-inch-per-foot pitch direct water toward the waste outlet.
- Installation support: A recessed flange supports floor tile and provides a grout pocket.
- Fabrication: TIG-welded, leak-proof joints with exposed surfaces finished in brushed satin.
Overall Dimensions:
324.0"W x 24.0"D x 2.0"HProduct Weight:
810.0 lbShallow 2-inch design
The trough is 2 in deep overall for food preparation facilities where floor thickness limits trough depth.
304 stainless steel construction
The trough is fabricated from 14-gauge 304 stainless steel.
SGAS anti-slip subway grating
The included grating is a stainless steel subway-style grating with an anti-slip surface.
Integral drainage pitch
Integral coves and a 1/4 in per foot pitch direct water toward the 6.5 in OD waste outlet.
Included drain components
The product specification identifies the unit as including a drain; the SFT specification also identifies a 4 in OD tailpiece and perforated waste basket.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
TIG-welded construction
Joints are TIG welded and leak-proof, with exposed surfaces finished in brushed satin.
