Play manufacturer video for IMC/Teddy SFT24-26-SG Shallow Stainless Steel Floor Trough with Subway Grating, 312"W x 24"D x 2" DeepIMC/Teddy SFT24-26-SG Shallow Stainless Steel Floor Trough with Subway Grating, 312"W x 24"D x 2" Deep
SKU: SFT24-26-SG
$21,831.00

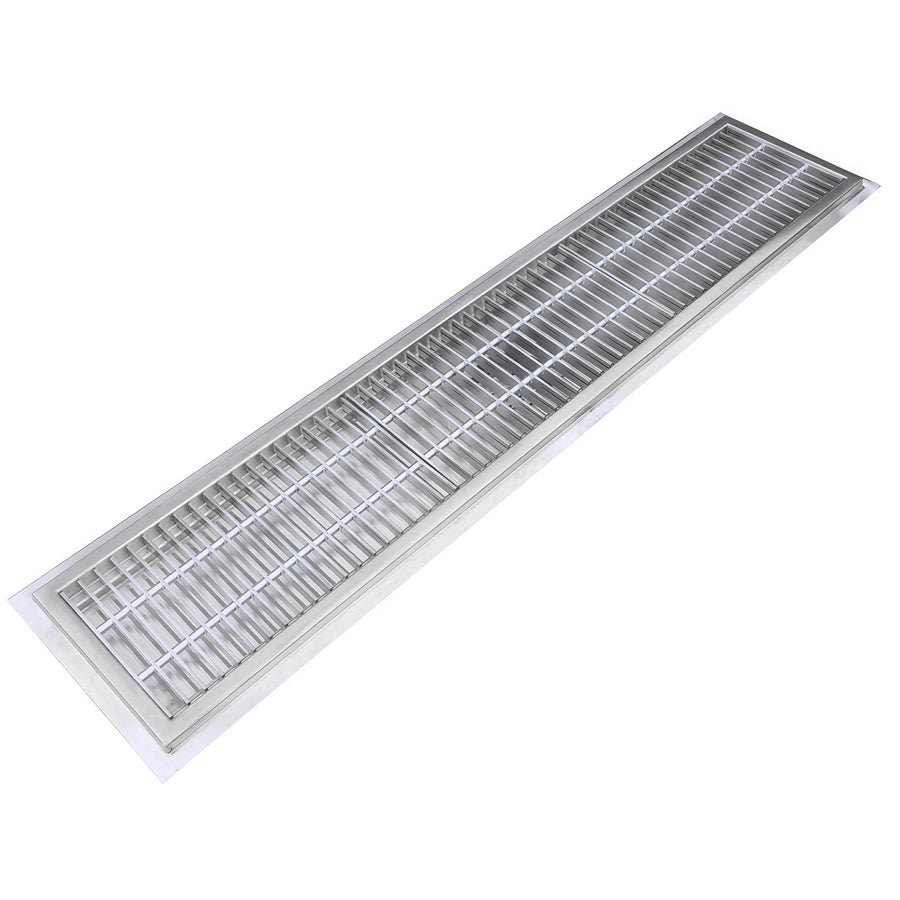

The IMC/Teddy SFT24-26-SG is a shallow stainless steel floor trough measuring 312 inches wide by 24 inches deep with a 2-inch overall depth. It is supplied with a drain and stainless steel subway-style grating.
- Constructed from 14-gauge 304 stainless steel.
- Integral coves and a 1/4-inch-per-foot pitch direct water toward the waste outlet.
- Recessed flange supports floor tile and provides a grout pocket.
- TIG-welded, leak-proof joints and a brushed satin finish on exposed surfaces.
- Designed for food preparation facilities where floor thickness limits trough depth to 2 inches.
Overall Dimensions:
312.0"W x 24.0"D x 2.0"HProduct Weight:
780.0 lbShallow 2-inch design
Designed for food preparation facilities where floor thickness limits trough depth to 2 inches.
Stainless steel construction
The trough is constructed from 14-gauge 304 stainless steel.
Subway-style grating
Includes stainless steel subway-style grating.
Integral drainage design
Integral coves and a 1/4-inch-per-foot pitch direct water toward the waste outlet.
Recessed flange
Supports floor tile and provides a grout pocket.
Welded construction
Joints are TIG welded and leak-proof.
Waste basket
A perforated waste basket is provided at each drain.
Trough width
312 in
Trough depth
24 in
Pan depth
2 in
Trough material
14 ga 304 stainless steel
Grate construction
Stainless steel
Grate type
Subway-style grating
Pan type
Non anti-splash
Waste outlet
6.5 in OD with 4 in OD tailpiece
Drain
Included
Frequently Asked Questions
The trough is 312 inches wide by 24 inches deep with a 2-inch overall pan depth.
It is constructed from 14-gauge 304 stainless steel.
The product includes stainless steel subway-style grating.
Yes. The SFT24-26-SG is specified with a drain.
It is intended for food preparation facilities where floor thickness limits trough depth to 2 inches.
