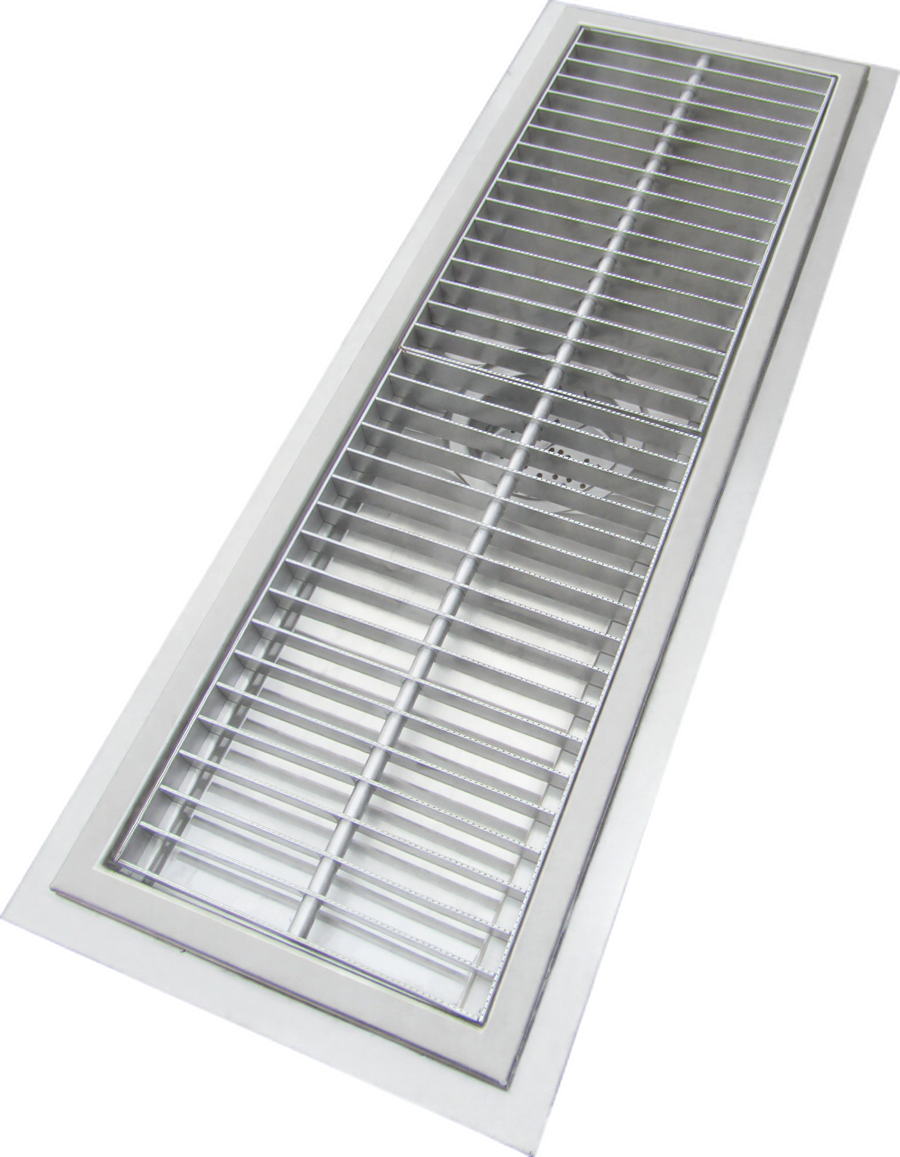

Play manufacturer video for IMC/Teddy SFT24-14-SQ Shallow Stainless Steel Floor Trough with Drain, Square Grid Grating, 168"W x 24"D x 2" DeepIMC/Teddy SFT24-14-SQ Shallow Stainless Steel Floor Trough with Drain, Square Grid Grating, 168"W x 24"D x 2" Deep
The IMC/Teddy SFT24-14-SQ is a shallow stainless steel floor trough measuring 168 in wide by 24 in deep with a 2 in overall depth. It includes a drain and square grid grating.
Constructed from 14 ga 304 stainless steel, the SFT design includes integral coves, a 1/4 in per foot pitch toward the waste outlet, a recessed flange with grout pocket, and a 1 in grating ledge. It is intended for food prep facilities where floor thickness limits trough depth to 2 in.
Overall Dimensions:
168.0"W x 24.0"D x 2.0"HProduct Weight:
476.0 lbShallow 2 in profile
The trough has a 2 in overall depth for applications where floor thickness limits trough depth.
304 stainless steel construction
The trough is constructed from 14 ga 304 stainless steel.
Square grid grating
The included SQ grating is a square grid stainless steel grating.
Pitched drainage design
The SFT design uses integral coves and a 1/4 in per foot pitch toward a 6-1/2 in waste outlet.
Recessed installation flange
The recessed flange supports floor tile and provides a grout pocket; a 1 in ledge for grating is integral.
Welded construction
Joints are TIG welded and leak-proof, with exposed surfaces finished in brushed satin.
Perforated waste basket
A perforated waste basket is provided at each drain.
Non-anti-splash pan
The pan type is specified as non anti-splash.
