IMC/Teddy SFT18-33-SG-ADA Shallow Stainless Steel Floor Trough with Drain and Subway Grating, 396"W x 18"D x 2" Deep

SKU: SFT18-33-SG-ADA
$28,263.60
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations

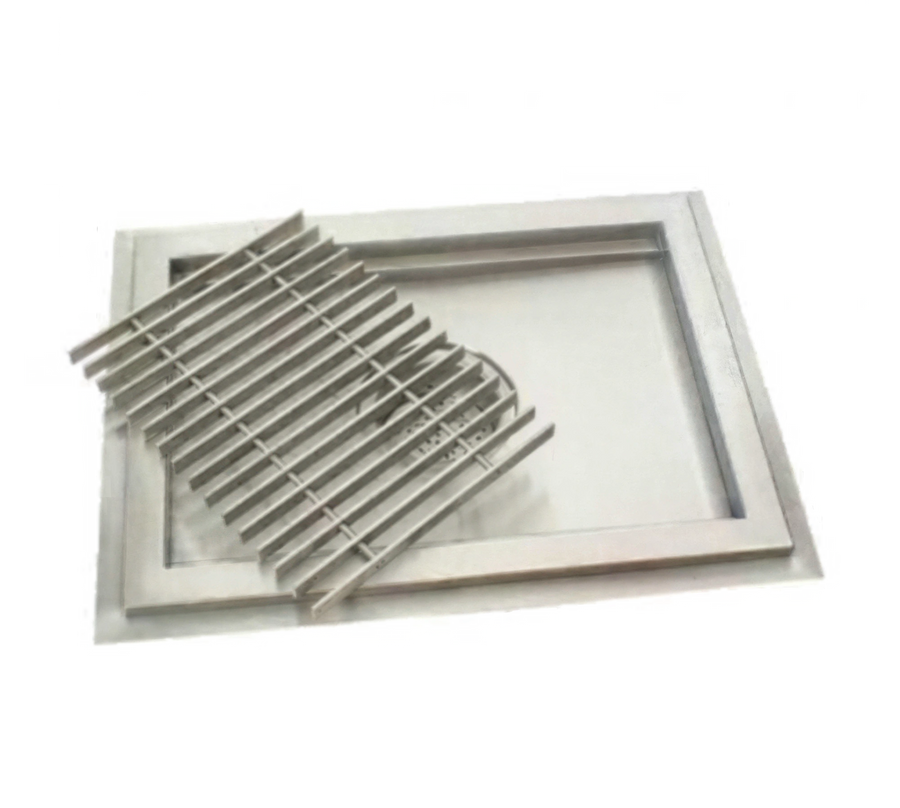

SFT18-33-SG-ADA is a shallow stainless steel floor trough measuring 396 inches wide by 18 inches deep with a 2-inch overall trough depth.

  • Constructed from 14/304 stainless steel.
  • Includes a drain and SG-ADA subway grating with stainless steel bars spaced 1/2 inch apart.
  • Designed for food preparation facilities where floor thickness limits trough depth to 2 inches.
  • The SFT design includes integral coves and a pitch toward the waste outlet for drainage.
  • A recessed flange supports floor tile and provides a grout pocket.

Overall Dimensions:

396.0"W x 18.0"D x 2.0"H

Product Weight:

825.0 lb

Shallow 2-inch trough

The SFT trough has a 2-inch overall depth for food preparation facilities where floor thickness limits trough depth.

14/304 stainless steel construction

The trough is specified as 14/304 stainless steel.

SG-ADA subway grating

The included SG-ADA subway grating uses stainless steel bars spaced 1/2 inch apart.

Drainage design

Integral coves and a 1/4-inch-per-foot pitch direct water toward the waste outlet.

Recessed flange

The recessed flange supports floor tile and provides a grout pocket.

Welded construction

SFT trough joints are TIG welded and specified as leak-proof.

Brushed satin finish

Exposed surfaces have a brushed satin finish.

Trough type Shallow floor trough
Width 396 in.
Depth 18 in.
Pan depth 2 in.
Material 14/304 stainless steel
Grating type SG-ADA subway-style grating
Grating construction Stainless steel grates
Grating bar spacing 1/2 in.
Pan type Non-anti-splash
Drain Included
Waste outlet 6 1/2 in. OD with 4 in. OD tailpiece
Drainage pitch 1/4 in. per foot toward waste outlet
Waste basket Perforated waste basket provided at each drain
Flange Recessed flange with grout pocket
Finish Brushed satin
Joint construction TIG welded and leak-proof

Documents

PDF Cutsheet PDF Download PDF Seepage flange installation manual PDF Download PDF Floor troughs brochure PDF Download PDF Floor trough installation manual PDF Download

Frequently Asked Questions

The trough measures 396 inches wide by 18 inches deep with a 2-inch overall trough depth.
It is constructed from 14/304 stainless steel.
The product includes SG-ADA subway grating with stainless steel bars spaced 1/2 inch apart.
Yes. The product specification includes a drain. The SFT product guide specifies a 6 1/2-inch OD waste outlet with a 4-inch OD tailpiece and a perforated waste basket at each drain.
No. The authoritative product attributes identify the pan type as non-anti-splash.
