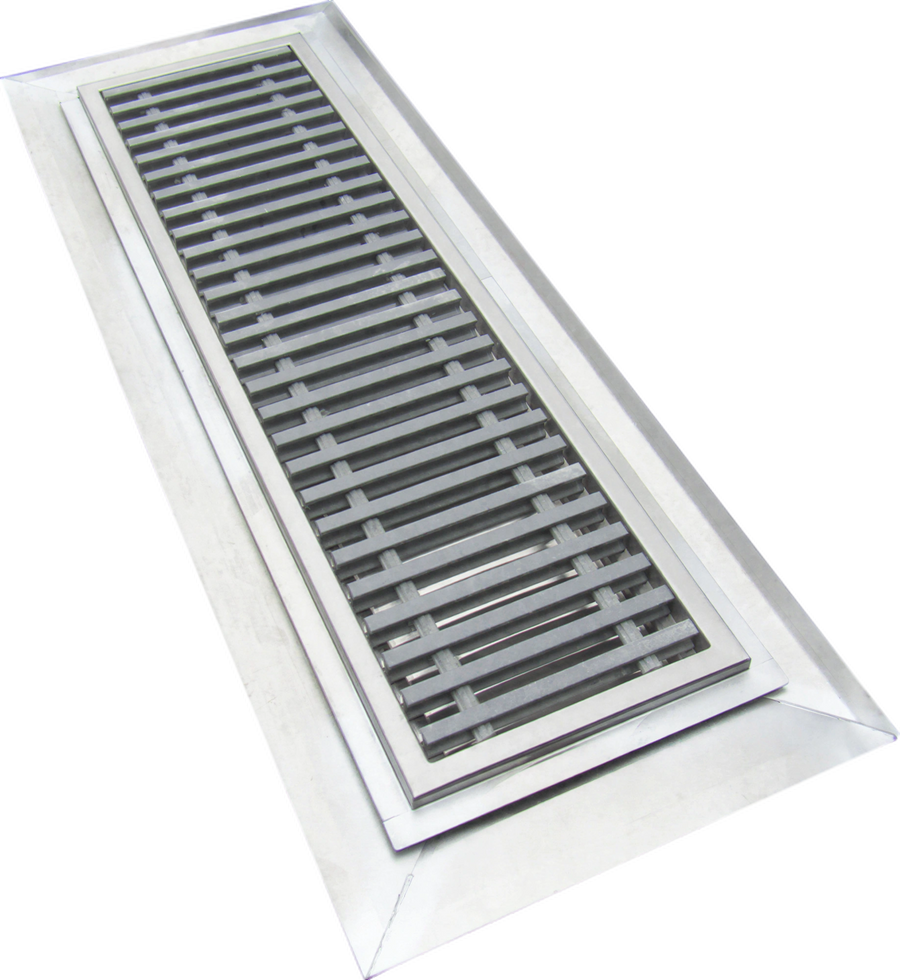

Play manufacturer video for IMC/Teddy SFT18-25-PFG-ADA Shallow Floor Trough, 300"W x 18"D x 2" Deep, Stainless Steel with Blue Fiberglass GrateIMC/Teddy SFT18-25-PFG-ADA Shallow Floor Trough, 300"W x 18"D x 2" Deep, Stainless Steel with Blue Fiberglass Grate
Shallow 2 in profile: The SFT18-25-PFG-ADA is designed for food preparation facilities where floor thickness limits trough depth to 2 in.
The trough is constructed from 14/304 stainless steel and includes blue PFG-ADA pultruded fiberglass grating. Integral coves and a pitched bottom direct water toward the waste outlet.
- 300 in wide by 18 in deep
- 2 in overall pan depth
- Non-anti-splash pan type
- Recessed flange supports floor tile and provides a grout pocket
- Integral 1 in deep ledge supports the grating
- Exposed surfaces have a brushed satin finish
Overall Dimensions:
300.0"W x 18.0"D x 2.0"HProduct Weight:
450.0 lbShallow profile
The 2 in overall depth is intended for food preparation facilities where floor thickness limits trough depth.
Stainless steel construction
The trough is made from 14/304 stainless steel.
PFG-ADA grating
The included grating is blue pultruded fiberglass with PFG-ADA bars spaced 0.4 in apart.
Drainage design
Integral coves and a 1/4 in per foot pitch direct water toward a 6 1/2 in OD waste outlet. The SFT specification also identifies a 4 in OD tailpiece and a perforated waste basket at each drain.
Tile and grating support
A recessed flange supports floor tile and provides a grout pocket, while an integral 1 in deep ledge supports the grating.
Floor anchoring
Anchor straps welded to the sides secure the trough to the floor.
Welded brushed finish
Joints are TIG welded and leak-proof, with exposed surfaces finished in brushed satin.
