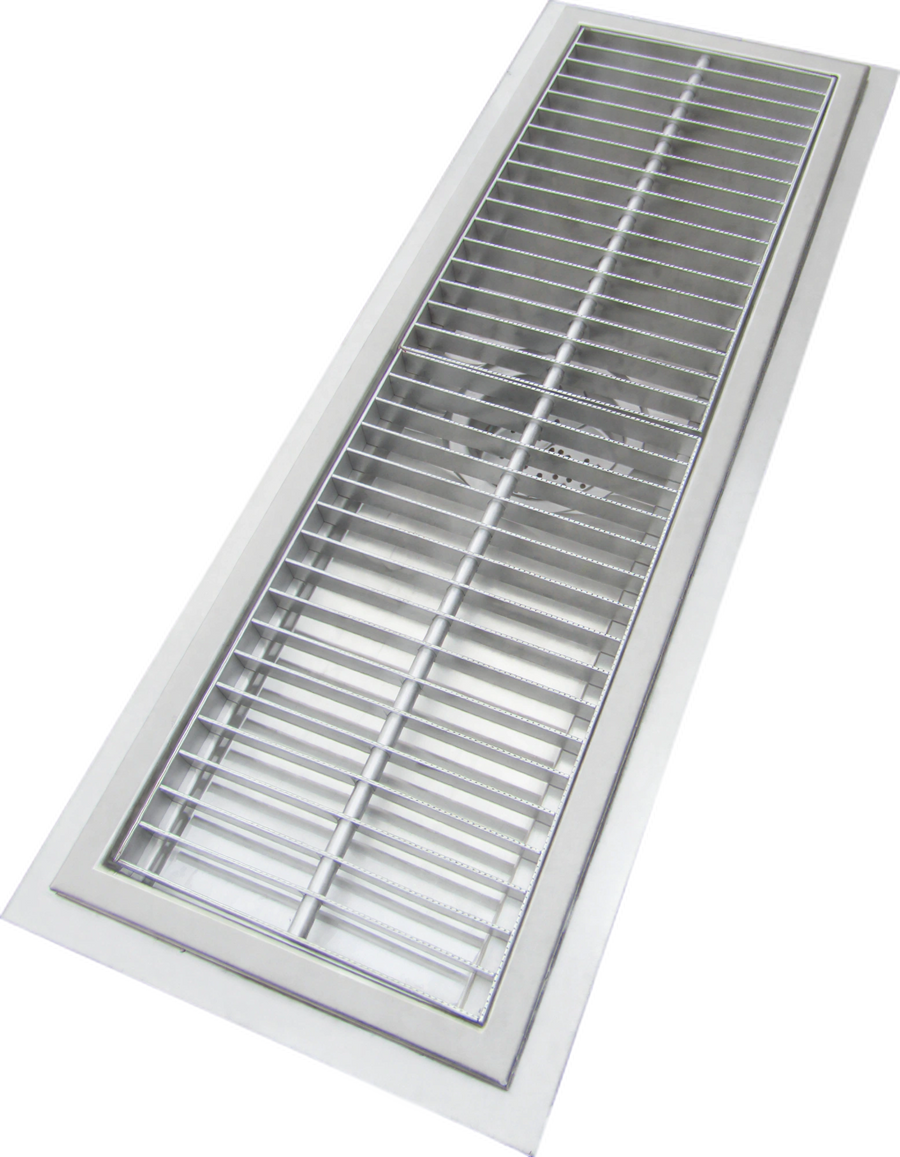

Play manufacturer video for IMC/Teddy SFT18-12-SQ Shallow Stainless Steel Floor Trough with Drain and Square Grid Grating, 144"W x 18"D x 2" DeepIMC/Teddy SFT18-12-SQ Shallow Stainless Steel Floor Trough with Drain and Square Grid Grating, 144"W x 18"D x 2" Deep
The IMC/Teddy SFT18-12-SQ is a shallow floor trough measuring 144 inches wide by 18 inches deep with a 2-inch overall pan depth. It is constructed from 14-gauge 304 stainless steel and includes a drain and stainless steel square grid grating.
Designed for food preparation facilities where floor thickness limits trough depth, the trough features integral coves, a 1/4-inch-per-foot pitch toward the waste outlet, and a recessed flange with a 1-inch ledge for the grating.
Joints are TIG welded and leak-proof, and exposed surfaces have a brushed satin finish.
Overall Dimensions:
144.0"W x 18.0"D x 2.0"HProduct Weight:
300.0 lbShallow 2-inch profile
The trough has a 2-inch overall depth for installations where floor thickness limits trough depth.
304 stainless steel construction
Constructed from 14-gauge 304 stainless steel.
Square grid grating
Includes stainless steel square grid grating.
Integral drainage design
Integral coves and a 1/4-inch-per-foot pitch direct water toward the waste outlet.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
Grating support ledge
A 1-inch-deep ledge is integral with the unit for the grating.
TIG-welded joints
Joints are TIG welded and leak-proof.
Brushed satin finish
Exposed surfaces have a brushed satin finish.
