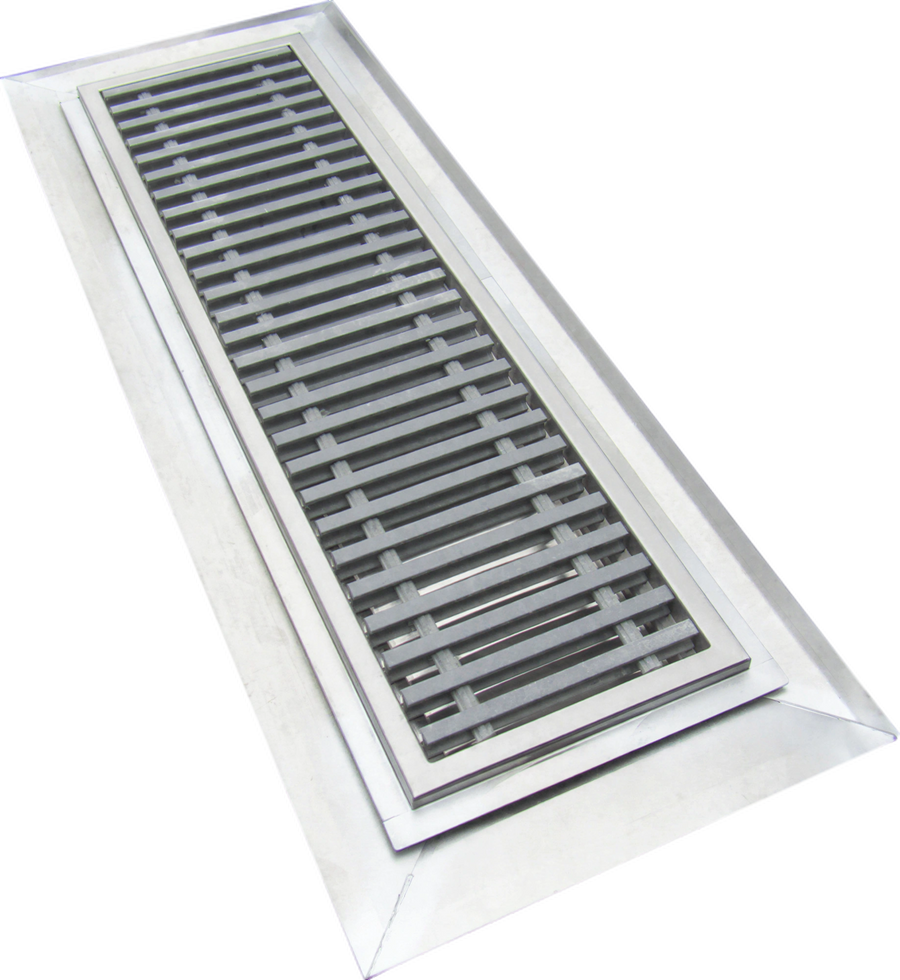

Play manufacturer video for IMC/Teddy SFT12-13-PFG-ADA Shallow Floor Trough with Drain, 156"W x 12"D x 2" Deep, Stainless Steel, Fiberglass GratingIMC/Teddy SFT12-13-PFG-ADA Shallow Floor Trough with Drain, 156"W x 12"D x 2" Deep, Stainless Steel, Fiberglass Grating
SKU: SFT12-13-PFG-ADA
$7,900.20
The SFT12-13-PFG-ADA is a 156-inch-wide shallow floor trough with a 2-inch overall trough depth, designed for food preparation facilities where floor thickness limits trough depth.
- Construction: 14-gauge 304 stainless steel with integral coves.
- Drainage: Pitched 1/4 inch per foot toward the waste outlet, with a drain and perforated waste basket.
- Grating: Blue PFG-ADA pultruded fiberglass grating.
- Installation: Recessed flange supports floor tile and provides a grout pocket.
- Finish: Exposed surfaces have a brushed satin finish, and joints are TIG welded.
Overall Dimensions:
156.0"W x 12.0"D x 2.0"HProduct Weight:
182.0 lbShallow 2-inch design
The trough has a 2-inch overall depth for installations where floor thickness limits trough depth.
Stainless steel construction
Constructed from 14-gauge 304 stainless steel.
PFG-ADA grating
Includes blue PFG-ADA pultruded fiberglass grating.
Pitched drainage
The trough is pitched 1/4 inch per foot toward the waste outlet.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
Welded construction
Joints are TIG welded.
Product type
SFT shallow floor trough
Trough material
14-gauge 304 stainless steel
Grating
Blue PFG-ADA pultruded fiberglass
Pan type
Non-anti-splash
Drain
Included
Waste outlet
6.5 in OD
Tailpiece
4 in OD x 3 in long
Drainage pitch
1/4 in per foot
Product weight
182 lb
Frequently Asked Questions
The trough measures 156 inches wide, 12 inches deep, and 2 inches overall in height or trough depth.
It is constructed from 14-gauge 304 stainless steel.
The product includes blue PFG-ADA pultruded fiberglass grating.
Yes. The authoritative product specification identifies the trough as including a drain.
No. The catalog attribute lists the pan type as non-anti-splash.
The SFT shallow floor trough is specified for food preparation facilities where floor thickness limits trough depth to 2 inches.
