Play manufacturer video for IMC/Teddy SFT-3096-SQ Shallow Stainless Steel Floor Trough with Drain, Square Grid Grate, 96"W x 30"D x 2" DeepIMC/Teddy SFT-3096-SQ Shallow Stainless Steel Floor Trough with Drain, Square Grid Grate, 96"W x 30"D x 2" Deep
IMC/Teddy SFT-3096-SQ is a shallow floor trough measuring 96 inches wide by 30 inches deep with a 2-inch overall trough depth. It is constructed from 14-gauge 304 stainless steel and includes a drain with square grid stainless steel grating.
- Designed for food preparation facilities where floor thickness limits trough depth to 2 inches.
- Integral coves and a 1/4-inch-per-foot pitch direct drainage toward the waste outlet.
- A recessed flange supports floor tile and provides a grout pocket.
- Exposed surfaces have a brushed satin finish, and joints are TIG welded.
Overall Dimensions:
96.0"W x 30.0"D x 2.0"HProduct Weight:
320.0 lbShallow trough design
The trough has a 2-inch overall depth for food preparation facilities where floor thickness limits trough depth.
Stainless steel construction
The trough is constructed from 14-gauge 304 stainless steel.

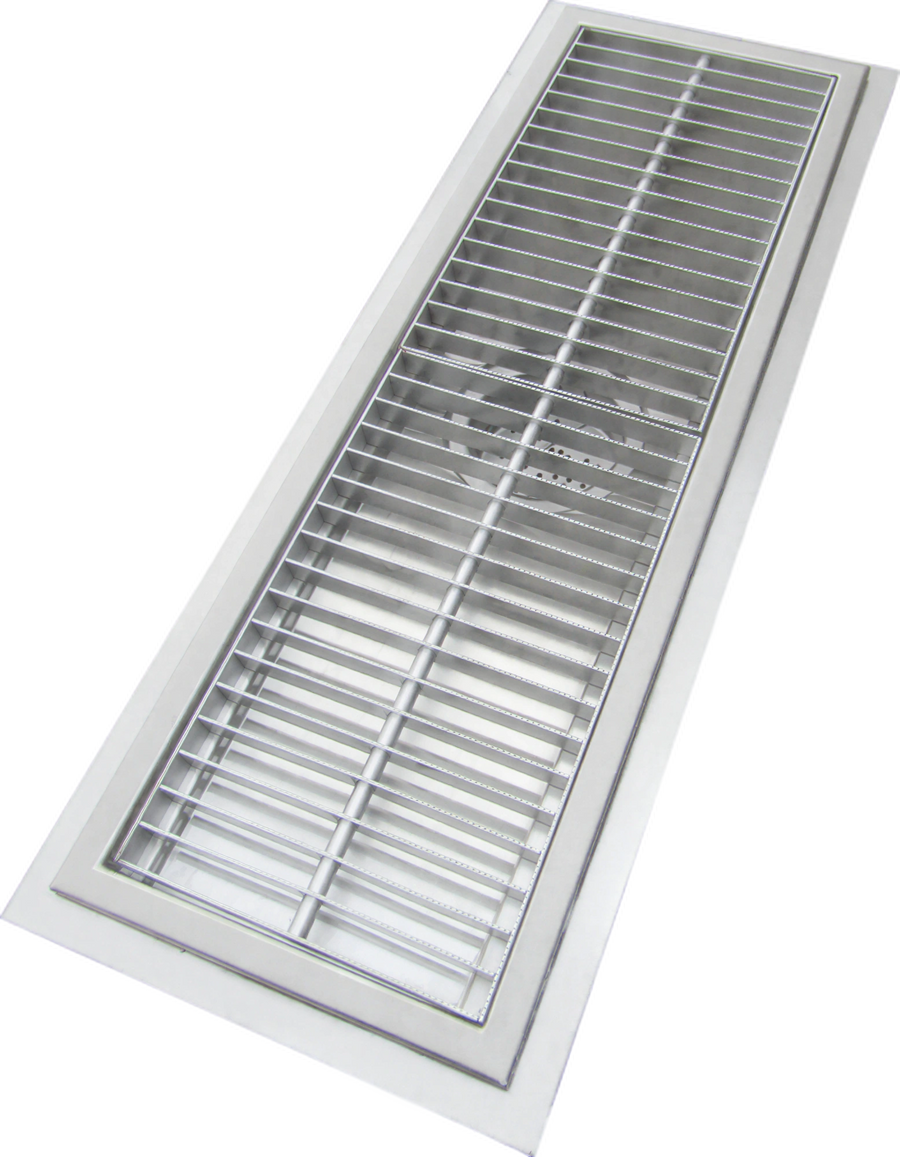

Square grid grating
The included SQ grating is a stainless steel square grid design.
Drainage pitch
Integral coves and a 1/4-inch-per-foot pitch direct water toward the 6 1/2-inch OD waste outlet.
Drain assembly
The unit includes a drain, perforated waste basket, and 4-inch OD tailpiece.
Floor integration
A recessed flange supports floor tile and provides a grout pocket.
Welded construction
Joints are TIG welded, and exposed surfaces have a brushed satin finish.
