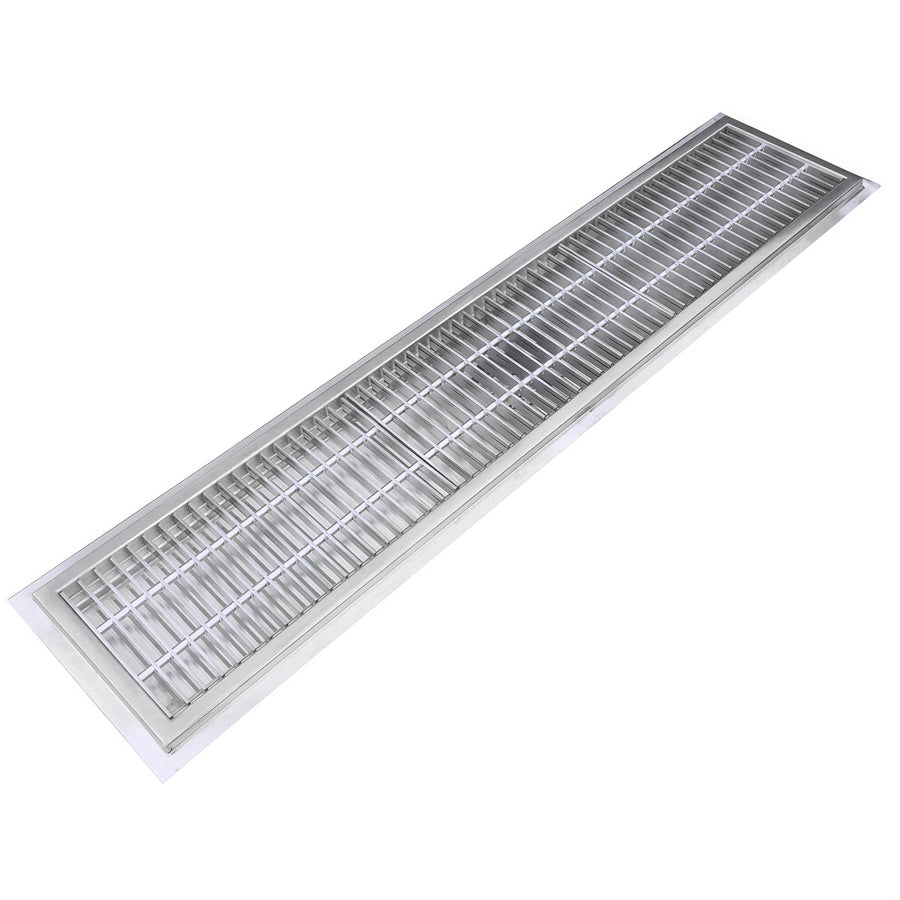

Play manufacturer video for IMC/Teddy SFT-3096-SG Shallow Stainless Steel Floor Trough with Subway-Style Grating, 96"W x 30"D x 2" DeepIMC/Teddy SFT-3096-SG Shallow Stainless Steel Floor Trough with Subway-Style Grating, 96"W x 30"D x 2" Deep
The IMC/Teddy SFT-3096-SG is a shallow floor trough measuring 96 in wide by 30 in deep with a 2 in overall depth. It is constructed from 14-gauge 304 stainless steel and includes a drain with SG subway-style stainless steel grating.
- Drainage: Integral coves and a 1/4 in per foot pitch direct water toward the waste outlet.
- Installation: A recessed flange supports floor tile and provides a grout pocket, while an integral ledge supports the grating.
- Construction: TIG-welded joints and a brushed satin finish are specified for the trough.
- Application: Designed for food preparation facilities where floor thickness limits trough depth to 2 in.
Overall Dimensions:
96.0"W x 30.0"D x 2.0"HProduct Weight:
320.0 lbShallow profile
The trough has a 2 in overall depth for installations where floor thickness limits trough depth.
Stainless steel construction
The trough is specified as 14-gauge 304 stainless steel.
SG subway-style grating
Includes SG subway-style stainless steel grating.
Integral drainage design
Integral coves and a 1/4 in per foot pitch direct water toward the 6 1/2 in OD waste outlet.
Tile and grout integration
A recessed flange supports floor tile and provides a grout pocket; an integral ledge supports the grating.
Welded construction
Joints are TIG welded and specified as leak-proof.
Floor anchoring
Welded anchor straps secure the trough to the floor.
Food preparation application
Specified for food prep facilities where floor thickness limits trough depth to 2 in.
