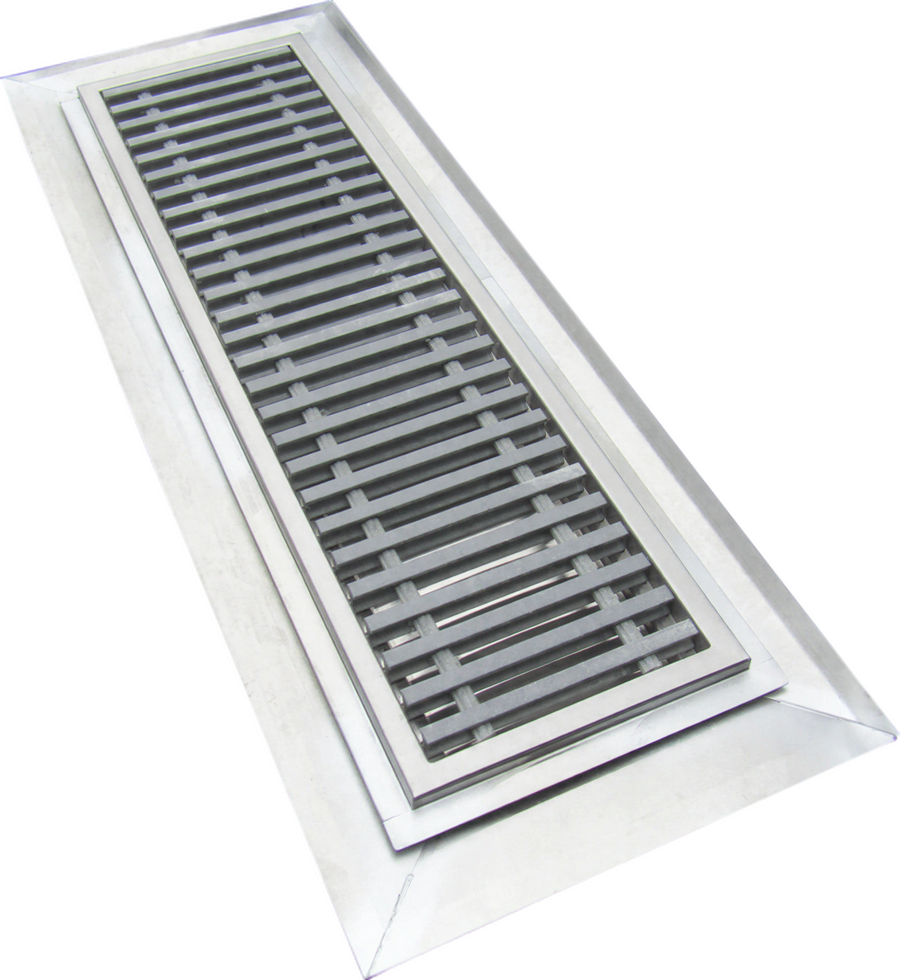

Play manufacturer video for IMC/Teddy SFT-30120-PFG-ADA Shallow Stainless Steel Floor Trough, 120"W x 30"D x 2" Deep, with Fiberglass GrateIMC/Teddy SFT-30120-PFG-ADA Shallow Stainless Steel Floor Trough, 120"W x 30"D x 2" Deep, with Fiberglass Grate
The SFT-30120-PFG-ADA is a shallow floor trough for food preparation facilities where floor thickness limits the trough depth to 2 inches. It measures 120 inches wide by 30 inches deep and includes blue PFG-ADA pultruded fiberglass grating.
- Construction: 14-gauge 304 stainless steel trough.
- Drainage: Integral coves and a pitch of 1/4 inch per foot direct water toward the waste outlets.
- Waste system: The 120-inch model has two equidistant wastes, with a perforated waste basket at each drain.
- Installation: A recessed flange supports floor tile and provides a grout pocket. An integral 1-inch ledge supports the grating.
- Finish: Exposed surfaces have a brush satin finish, and joints are TIG welded.
Overall Dimensions:
120.0"W x 30.0"D x 2.0"HProduct Weight:
570.0 lbShallow floor-trough design
The 2-inch-deep SFT design is intended for food preparation facilities where floor thickness limits trough depth.
304 stainless steel construction
The trough is made from 14-gauge 304 stainless steel.
PFG-ADA fiberglass grating
Includes blue PFG-ADA pultruded fiberglass grating with 0.4-inch bar spacing.
Two-waste drainage layout
Standard troughs over 96 inches use two equidistant wastes; this 120-inch model therefore has two wastes.
Integral drainage features
Integral coves and a 1/4-inch-per-foot pitch direct water toward the waste outlets.
Tile and grating support
The recessed flange supports floor tile and provides a grout pocket, while the integral 1-inch ledge supports the grating.
Non anti-splash pan
The catalog identifies the pan type as non anti-splash.
Brush satin finish
Exposed surfaces have a brush satin finish, and the joints are TIG welded.
