IMC/Teddy

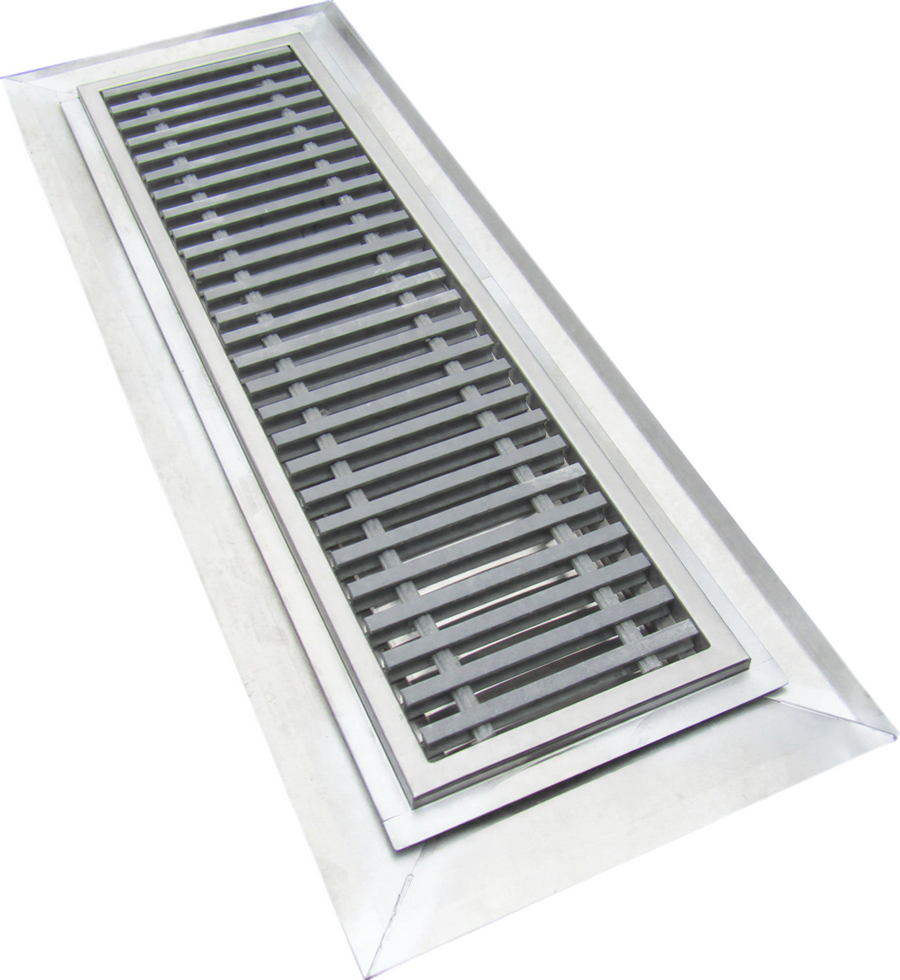

IMC/Teddy SFT-2472-PFG Shallow Floor Trough with Drain, 72"W x 24"D x 2" Deep, Stainless Steel, Gray Fiberglass Grating

SKU: SFT-2472-PFG
$4,422.60
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations

The IMC/Teddy SFT-2472-PFG is a shallow floor trough measuring 72 inches wide, 24 inches deep, and 2 inches overall deep. It is constructed of 14-gauge 304 stainless steel and includes a drain with grey PFG pultruded fiberglass grating.

Designed for applications where floor thickness limits trough depth to 2 inches, the trough includes integral coves, a recessed flange for floor tile and grout, and a pitched interior for drainage.

  • Construction: 14-gauge 304 stainless steel with brushed satin exposed surfaces.
  • Grating: Grey pultruded fiberglass with a corrosion-resistant, anti-slip surface.
  • Drainage: Integral pitch toward the waste outlet and a perforated waste basket at the drain.

Overall Dimensions:

72.0"W x 24.0"D x 2.0"H

Product Weight:

270.0 lb

Shallow 2-inch design

Intended for food preparation facilities and other installations where floor thickness limits trough depth to 2 inches.

Stainless steel construction

Constructed from 14-gauge 304 stainless steel.

Pultruded fiberglass grating

Includes grey PFG pultruded fiberglass grating with a corrosion-resistant, structurally strong, fire-retardant, lightweight, anti-slip surface.

Integral drainage design

Integral coves and a 1/4-inch-per-foot pitch direct water toward the waste outlet.

Recessed flange

The recessed flange supports floor tile and provides a grout pocket.

Perforated waste basket

A perforated waste basket is provided at the drain.

Welded construction

Joints are TIG welded and leak-proof; exposed surfaces have a brushed satin finish.

Non-anti-splash pan

The authoritative product attributes identify the pan type as non anti-splash.

Product type Shallow floor trough
Width 72 in
Depth (short side) 24 in
Pan depth 2 in
Trough material 14 ga 304 stainless steel
Grating construction Pultruded fiberglass
Grating color Grey
Pan type Non anti-splash
Drain Included
Waste outlet 6 1/2 in OD
Tailpiece 4 in OD
Drainage pitch 1/4 in per foot toward the waste outlet
Joint construction TIG welded
Finish Brushed satin

Documents

PDF Cutsheet PDF Download PDF Floor troughs brochure PDF Download PDF Seepage flange installation manual PDF Download PDF Floor trough installation manual PDF Download

Frequently Asked Questions

The trough measures 72 inches wide by 24 inches deep with a 2-inch overall pan depth.
It is constructed from 14-gauge 304 stainless steel.
The unit includes grey PFG pultruded fiberglass grating.
Yes. The exact product specification identifies it as including a drain.
No. The authoritative product attributes identify the pan type as non anti-splash.
The listed product weight is 270 lb.
