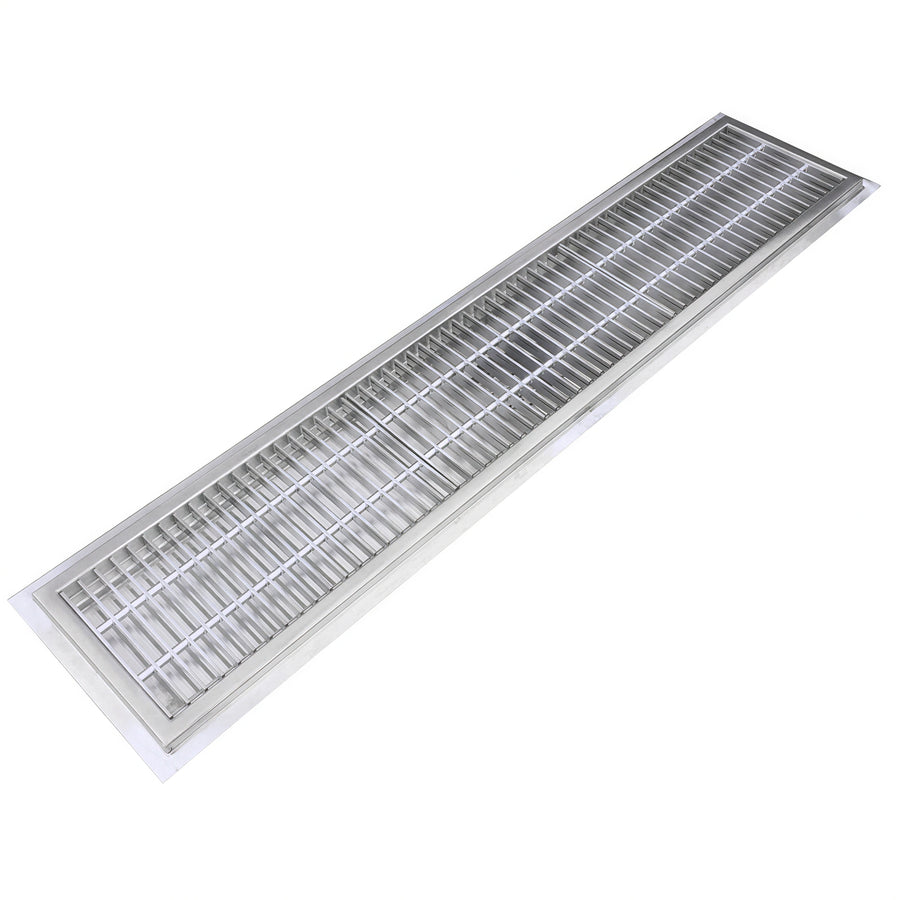

Play manufacturer video for IMC/Teddy SFT-1860-SG Shallow Stainless Steel Floor Trough with Drain and Subway Grating, 60"W x 18"D x 2" DeepIMC/Teddy SFT-1860-SG Shallow Stainless Steel Floor Trough with Drain and Subway Grating, 60"W x 18"D x 2" Deep
SKU: SFT-1860-SG
$4,281.00
SFT-1860-SG is a shallow floor trough for food-preparation facilities where floor thickness limits trough depth to 2 inches.
- Constructed of 14-gauge 304 stainless steel.
- Measures 60 inches wide, 18 inches deep, and 2 inches deep overall.
- Includes a drain and stainless steel subway-style grating.
- Integral coves and a 1/4-inch-per-foot pitch direct water toward the waste outlet.
- A recessed flange supports floor tile and provides a grout pocket.
Overall Dimensions:
60.0"W x 18.0"D x 2.0"HProduct Weight:
114.0 lbShallow profile
The trough is 2 in deep overall for applications where floor thickness limits trough depth.
Stainless steel construction
Made from 14-gauge 304 stainless steel.
Subway-style grating
Includes stainless steel subway-style grating.
Drainage design
Integral coves and a 1/4 in per foot pitch direct water toward the waste outlet.
Recessed flange
Supports floor tile and provides a grout pocket.
Welded construction
Joints are TIG welded and leak-proof.
Waste basket
A perforated waste basket is provided at each drain.
Product type
Shallow floor trough
Material
14-gauge 304 stainless steel
Width (long side)
60 in
Depth (short side)
18 in
Pan depth
2 in
Grating
Stainless steel subway-style grating
Pan type
Non-anti-splash
Drain
Included
Waste outlet
6 1/2 in OD with 4 in OD tailpiece
Pitch
1/4 in per foot toward waste outlet
Finish
Brush satin
Weight
114 lb
Frequently Asked Questions
The floor trough is 60 in wide, 18 in deep, and 2 in deep overall.
It is constructed of 14-gauge 304 stainless steel.
Yes. The SFT-1860-SG includes a drain and stainless steel subway-style grating.
No. The product attributes identify the pan type as non-anti-splash.
