Play manufacturer video for IMC/Teddy SFT-1524-SG Shallow Stainless Steel Floor Trough with Drain, Subway Grating, 24"W x 15"D x 2" DeepIMC/Teddy SFT-1524-SG Shallow Stainless Steel Floor Trough with Drain, Subway Grating, 24"W x 15"D x 2" Deep

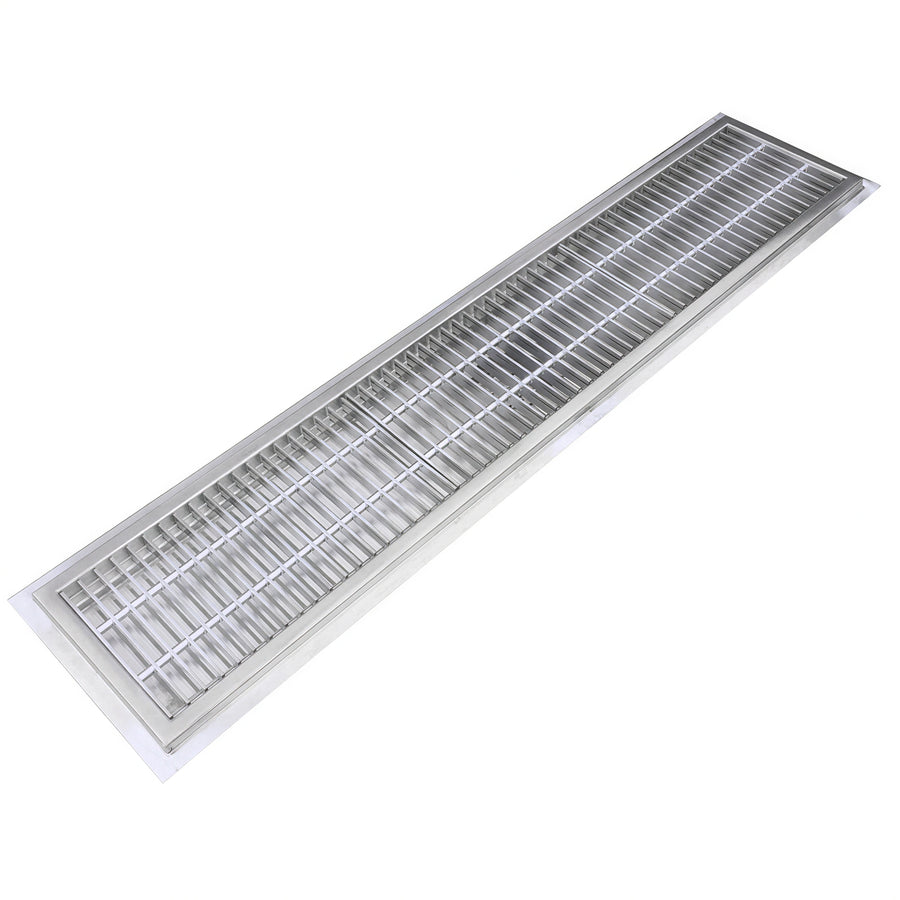

The IMC/Teddy SFT-1524-SG is a shallow floor trough measuring 24 in wide by 15 in deep with a 2 in overall depth. It is constructed from 14 ga 304 stainless steel and includes a drain with subway-style stainless steel grating.
Integral coves and a 1/4 in per foot pitch direct water toward the waste outlet. The shallow design is intended for food preparation facilities where floor thickness limits trough depth to 2 in.
- Recessed flange supports floor tile and provides a grout pocket.
- A 1 in deep ledge supports the grating.
- Joints are TIG welded and leak-proof, with exposed surfaces finished in brushed satin.
- Anchor straps are welded to the sides for securing the trough to the floor.
Overall Dimensions:
24.0"W x 15.0"D x 2.0"HProduct Weight:
46.0 lbShallow 2 in design
Designed for food preparation facilities where floor thickness limits trough depth to 2 in.
304 stainless steel construction
The trough is made from 14 ga 304 stainless steel.
Subway-style grating
Includes stainless steel subway-style grating.
Pitched drainage
Integral coves and a 1/4 in per foot pitch direct water toward the waste outlet.
Drain assembly
Includes a 6 1/2 in OD waste outlet, 4 in OD tailpiece, and perforated waste basket.
Tile and grating support
A recessed flange supports floor tile, while the integral 1 in deep ledge supports the grating.
Floor anchoring
Welded anchor straps secure the trough to the floor.
TIG-welded fabrication
Joints are TIG welded and leak-proof, with exposed surfaces finished in brushed satin.
