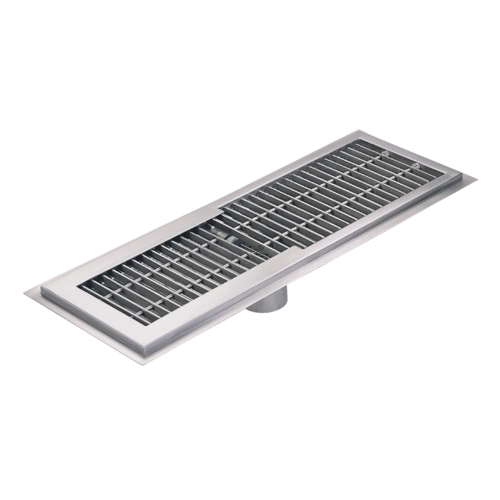

The IMC/Teddy SEC-LFT30-16-SGAS is a security floor trough measuring 192 inches wide, 30 inches deep, and 4 inches in pan depth.

  • Construction: 14-gauge type 304 stainless steel.
  • Drainage: Integral coves and a pitch to a 6 1/2-inch OD waste outlet with a 4-inch OD tailpiece.
  • Grating: SGAS-SEC security anti-slip subway grating with stainless steel construction.
  • Security details: A continuous security frame secures the grating to the ledge, while a special locking device uses tamperproof screws.
  • Waste handling: The perforated waste basket is secured with a tamperproof screw.
  • Installation details: Anchor straps secure the trough to the floor; the recessed flange supports floor tile and provides a grout pocket.
  • Finish and joints: Exposed surfaces have a brush satin finish, and joints are TIG welded and leakproof.

Overall Dimensions:

192.0"W x 30.0"D x 4.0"H

Product Weight:

624.0 lb

Stainless steel construction

The trough is constructed from 14-gauge type 304 stainless steel.

Security anti-slip grating

The exact model includes SGAS-SEC security anti-slip subway grating with stainless steel construction and a subway-style design.

Integrated drainage

Integral coves and a pitch direct drainage to a 6 1/2-inch OD waste outlet with a 4-inch OD tailpiece.

Secured waste basket

The perforated waste basket is secured with a tamperproof screw.

Security grating retention

A continuous security frame secures the grating to the ledge, and a special locking device holds it with tamperproof screws.

Floor anchoring

Anchor straps secure the trough to the floor.

Recessed flange

The recessed flange supports floor tile and provides a grout pocket.

TIG-welded joints

Joints are TIG welded and leakproof, with exposed surfaces finished in brush satin.

Overall width 192 in
Overall depth 30 in
Pan depth 4 in
Product weight 624 lb
Trough construction 14-gauge type 304 stainless steel
Drain Included
Waste outlet 6 1/2 in OD with 4 in OD tailpiece
Grate construction Stainless steel
Grate type SGAS-SEC security anti-slip subway-style grating
Pan type Non anti-splash
Finish Brush satin

Documents

PDF Cutsheet PDF Download PDF Floor troughs brochure PDF Download PDF Seepage flange installation manual PDF Download PDF Floor trough installation manual PDF Download PDF Security brochure PDF Download

Frequently Asked Questions

The floor trough measures 192 inches wide by 30 inches deep with a 4-inch pan depth.
Yes. It includes a drain with a 6 1/2-inch OD waste outlet and a 4-inch OD tailpiece.
The trough is made from 14-gauge type 304 stainless steel.
The model includes SGAS-SEC security anti-slip subway grating with stainless steel, subway-style construction.
A continuous security frame secures the grating to the ledge, and a special locking device holds it with tamperproof screws.
No. The authoritative category attribute identifies the pan type as non anti-splash.
The product weight is 624 lb.
