IMC/Teddy

IMC/Teddy SEC-LFT24-34-PFG-ADA Security Floor Trough, 408"W x 24"D x 4"Deep, 14 ga Stainless Steel, Fiberglass Grating

SKU: SEC-LFT24-34-PFG-ADA
$22,252.80
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

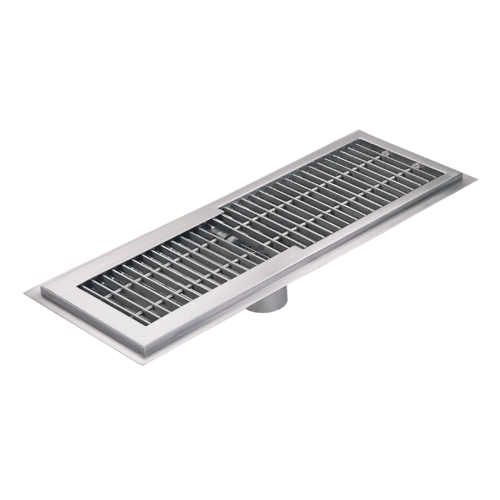

The IMC/Teddy SEC-LFT24-34-PFG-ADA is a security floor trough measuring 408 in wide, 24 in deep and 4 in deep overall. It is constructed from 14-gauge type 304 stainless steel and includes a drain with blue PFG-ADA-SEC security pultruded fiberglass grating.

The security design uses a correctional frame and locking device with tamperproof screws to secure the grating. Integral coves, a pitched drain path, a perforated waste basket and TIG-welded, leakproof joints support floor drainage and service use.

  • Specified for correctional, penal and justice buildings.
  • Exposed surfaces have a brushed satin finish.

Overall Dimensions:

408.0"W x 24.0"D x 4.0"H

Product Weight:

918.0 lb

Security grating retention

A correctional frame secures the grating to the ledge, while a special locking device with tamperproof screws holds it in place.

Stainless steel construction

The trough is constructed from 14-gauge type 304 stainless steel.

Pultruded fiberglass grating

The exact configuration includes blue PFG-ADA-SEC security pultruded fiberglass grating.

Drainage design

Integral coves and a pitch direct drainage toward a 6 1/2 in OD waste outlet with a 4 in OD tailpiece.

Secured waste basket

The perforated waste basket is secured with a tamperproof screw.

Floor installation support

Anchor straps secure the trough to the floor, while the recessed flange supports floor tile and provides a grout pocket.

TIG-welded joints

Joints are TIG welded and leakproof, with exposed surfaces finished in brushed satin.

Security-use design

The SEC security floor trough design is specified for correctional, penal and justice buildings.

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations
Trough construction 14-gauge type 304 stainless steel
Grating model PFG-ADA-SEC security pultruded fiberglass grating
Grating color Blue
Grating construction Pultruded fiberglass
Pan type Non anti-splash
Drain Included
Waste outlet 6 1/2 in OD with 4 in OD tailpiece
Waste basket Perforated; secured with a tamperproof screw
Security grating retention Correctional frame and locking device with tamperproof screws
Finish Brushed satin

Documents

PDF Cutsheet PDF Download PDF Floor troughs brochure PDF Download PDF Security brochure PDF Download PDF Floor trough installation manual PDF Download PDF Seepage flange installation manual PDF Download

Frequently Asked Questions

The authoritative dimensions are 408 in wide, 24 in deep and 4 in high.
The trough is made from 14-gauge type 304 stainless steel.
It includes blue PFG-ADA-SEC security pultruded fiberglass grating.
Yes. The authoritative product specification states that it includes a drain.
A correctional frame secures the grating to the ledge, and a special locking device with tamperproof screws holds it in place.
No. The authoritative category attribute identifies the pan type as non anti-splash.
The SEC security trough design uses a 6 1/2 in OD waste outlet with a 4 in OD tailpiece.
The exposed surfaces have a brushed satin finish.
