IMC/Teddy SEC-LFT12-28-SGAS Stainless Steel Security Floor Trough with Drain, 336"W x 12"D x 4" Deep, Anti-Slip Subway Grating

SKU: SEC-LFT12-28-SGAS
$16,519.20
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations

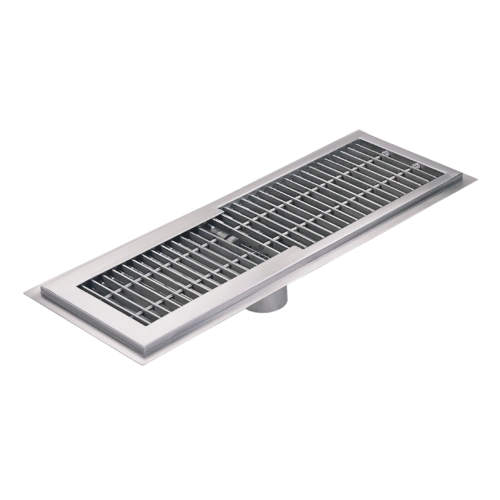

The IMC/Teddy SEC-LFT12-28-SGAS is a security floor trough measuring 336 in wide, 12 in on the short side, and 4 in deep. It is constructed from 14-gauge type 304 stainless steel and includes a drain with SGAS-SEC security anti-slip subway grating.

Its security design uses a correctional frame and special locking device to secure the grating. The perforated waste basket is secured with a tamperproof screw.

  • Integral coves and a pitched trough lead to a 6 1/2 in OD waste outlet with a 4 in OD tailpiece.
  • A recessed flange supports floor tile and provides a grout pocket.
  • Exposed surfaces have a brushed satin finish, and joints are TIG welded and leakproof.
  • Anchor straps secure the trough to the floor.

Overall Dimensions:

336.0"W x 12.0"D x 4.0"H

Product Weight:

532.0 lb

Security grating retention

A correctional frame secures the grating to the ledge, and a special locking device with tamperproof screws holds it in place.

Anti-slip subway grating

The included SGAS-SEC grating is identified as security, anti-slip, and subway-style grating.

Stainless steel construction

The trough is constructed from 14-gauge type 304 stainless steel.

Waste outlet and basket

The trough has a 6 1/2 in OD waste outlet with a 4 in OD tailpiece and a perforated waste basket secured with a tamperproof screw.

Integral drainage design

Integral coves and a pitched trough direct the trough toward the waste outlet.

Recessed tile flange

The recessed flange supports floor tile and provides a grout pocket.

Floor anchoring

Anchor straps secure the trough to the floor.

Welded construction

Joints are TIG welded and leakproof.

Product type Security floor trough
Width (long side) 336 in
Depth (short side) 12 in
Pan depth 4 in
Trough construction 14 gauge type 304 stainless steel
Grating SGAS-SEC security anti-slip subway grating
Grate construction Stainless steel
Pan type Non-anti-splash
Drain outlet 6 1/2 in OD waste outlet with 4 in OD tailpiece
Surface finish Brushed satin
Joints TIG welded and leakproof
Weight 532 lb

Documents

PDF Cutsheet PDF Download PDF Floor trough installation manual PDF Download PDF Floor troughs brochure PDF Download PDF Security brochure PDF Download PDF Seepage flange installation manual PDF Download

Frequently Asked Questions

The product measures 336 in wide by 12 in on the short side, with a 4 in trough depth.
Yes. The exact product specification identifies it as including a drain, and the security specification describes a 6 1/2 in OD waste outlet with a 4 in OD tailpiece.
It includes SGAS-SEC security anti-slip subway grating, identified as stainless steel and subway-style grating.
A correctional frame secures the grating to the ledge, and a special locking device with tamperproof screws holds it in place.
The trough is made from 14-gauge type 304 stainless steel.
No. The authoritative category attribute identifies the pan type as non-anti-splash.
