IMC/Teddy

IMC/Teddy SEC-FWR-30-SG Floor Water Receptacle, 30"W x 7-1/2"D, 4" Deep, 16 Gauge Stainless Steel, Subway Grating

SKU: SEC-FWR-30-SG
$2,362.80
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations

The IMC/Teddy SEC-FWR-30-SG is a 30-inch-wide floor water receptacle with a 4-inch-deep receptacle, 7.5-inch short-side depth, and SG-SEC security subway grating.

It is constructed from 16-gauge 304 stainless steel with a brushed satin finish and includes one 4-inch OD tailpiece and a stainless steel beehive strainer.

This product is identified with NSF certification and a Made in USA designation.

Overall Dimensions:

30.0"W x 7.5"D x 7.0"H

Product Weight:

25.0 lb

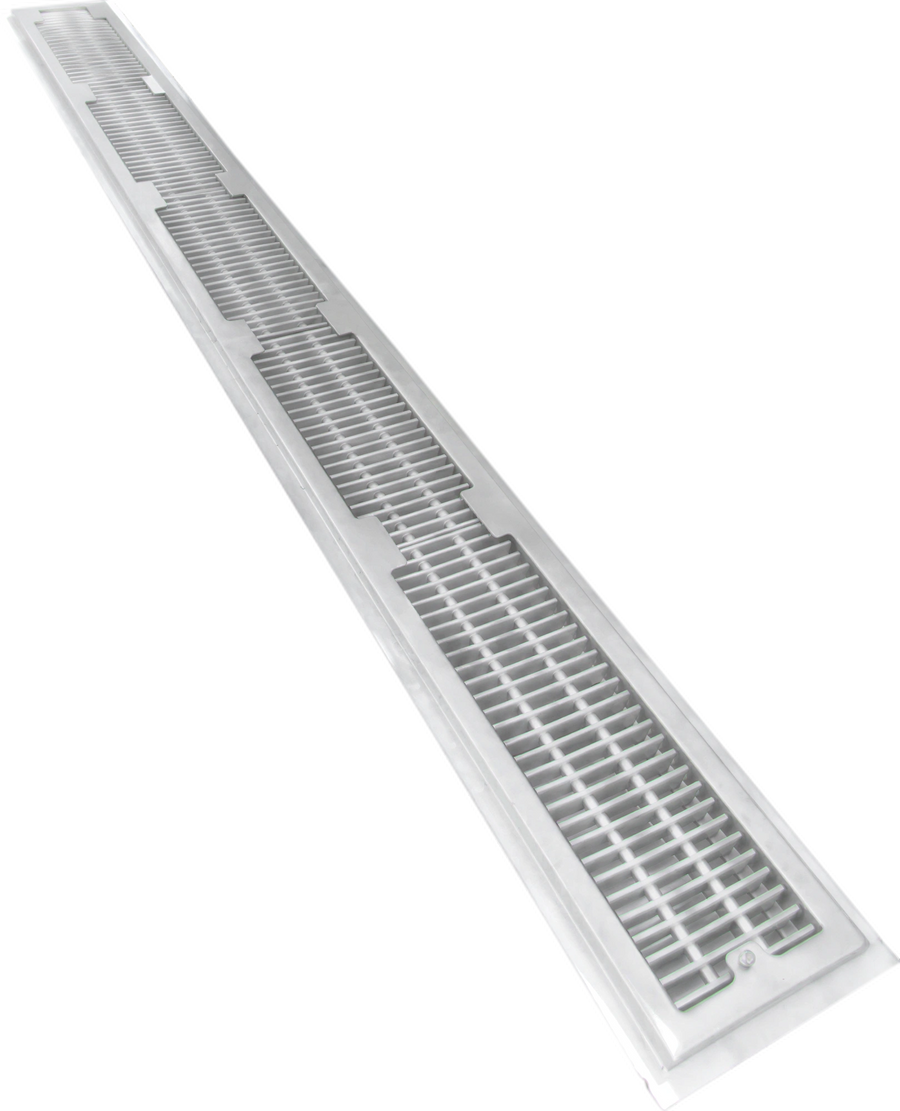

Security subway grating

Includes SG-SEC security subway grating with stainless steel grates.

Stainless steel construction

The receptacle uses 16-gauge 304 stainless steel construction.

Drainage connection

Includes one 4 in OD tailpiece.

Beehive strainer

Includes a stainless steel beehive strainer.

Brushed satin finish

Finished in brushed satin.

Receptacle depth

The receptacle is 4 in deep.

Overall Width 30 in
Overall Depth 7.5 in
Overall Height 7 in
Product Weight 25 lb
Receptacle Depth 4 in
Construction 16-gauge 304 stainless steel
Finish Brushed satin
Grate Type SG-SEC security subway grating
Grate Construction Stainless steel grates
Tailpiece (1) 4 in OD
Strainer Stainless steel beehive strainer
Pan Type Non-anti-splash

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Floor troughs brochure PDF Download PDF Security brochure PDF Download PDF Floor trough installation manual PDF Download PDF Seepage flange installation manual PDF Download

Frequently Asked Questions

The product measures 30 in wide by 7.5 in deep by 7 in high.
The receptacle is 4 in deep.
It is constructed from 16-gauge 304 stainless steel.
The product includes one 4 in OD tailpiece and a stainless steel beehive strainer.
It has SG-SEC security subway grating with stainless steel grates.
NSF is specified for this product.
