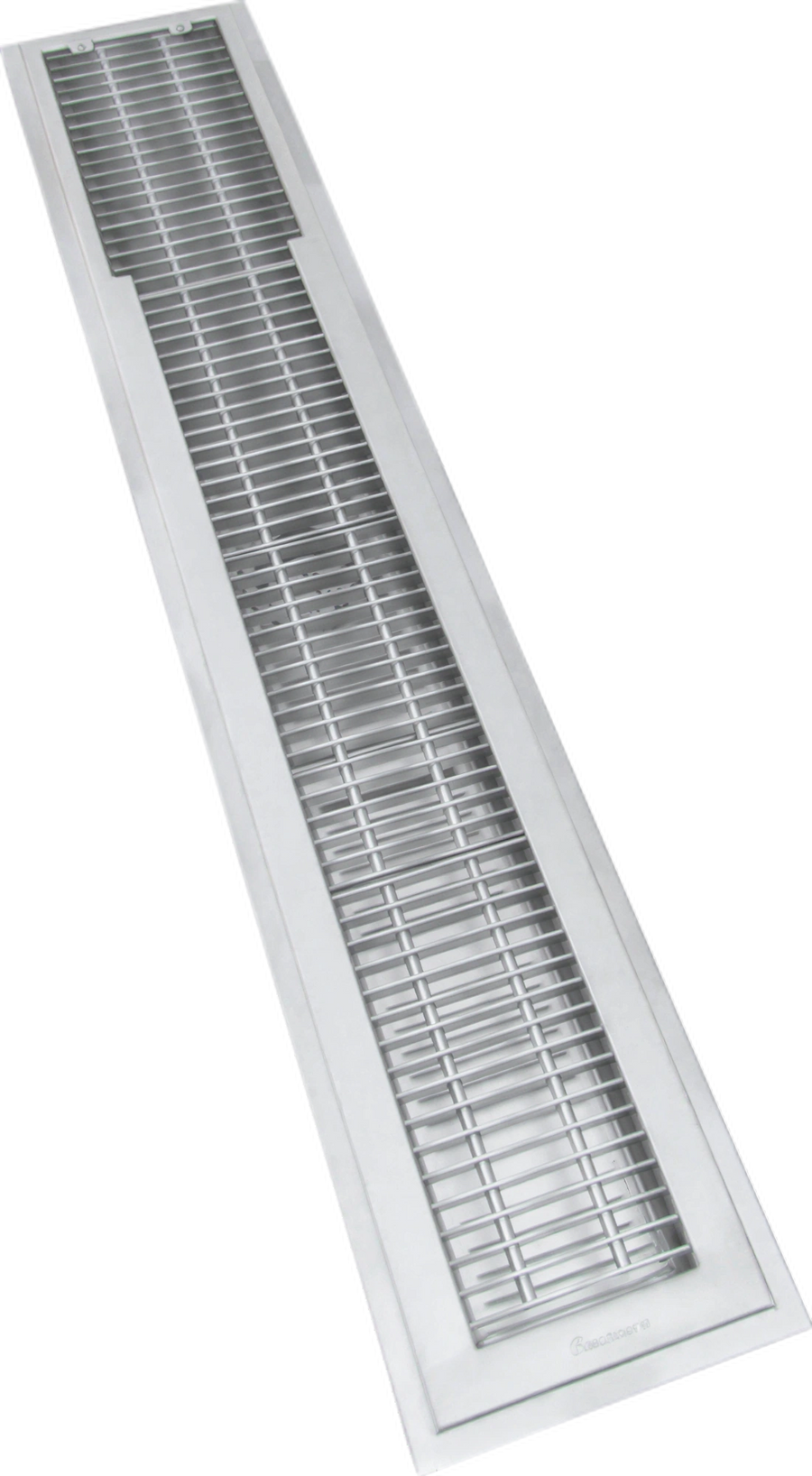

Play manufacturer video for IMC/Teddy SEC-FT30-35-SG-ADA Security Floor Trough, 14-Gauge Stainless Steel, Subway Grating, 420"W x 30"D x 4" DeepIMC/Teddy SEC-FT30-35-SG-ADA Security Floor Trough, 14-Gauge Stainless Steel, Subway Grating, 420"W x 30"D x 4" Deep
SEC-FT30-35-SG-ADA is an IMC/Teddy security floor trough constructed from 14-gauge 304 stainless steel. It measures 420 inches wide by 30 inches deep with a 4-inch pan depth and includes a drain and SG-ADA-SEC security subway grating.
- Continuous security framing helps secure the grating to the trough ledge.
- Grating slides into the frame and is held by a special locking device with tamperproof screws.
- The trough has integral coves, a recessed flange, and a non anti-splash pan design.
- Exposed surfaces have a brush satin finish, and joints are TIG welded and leakproof.
Overall Dimensions:
420.0"W x 30.0"D x 4.0"HProduct Weight:
1715.0 lb14-gauge 304 stainless steel
The security floor trough is constructed from 14-gauge type 304 stainless steel.
SG-ADA-SEC security subway grating
The exact product specification includes SG-ADA-SEC security subway grating.
Security grating retention
A continuous correctional frame secures the grating to the ledge, while a special locking device with tamperproof screws holds the grating in place.
Integral drainage design
The SEC model is pitched to a 6 1/2 in outside-diameter waste outlet with a 4 in outside-diameter tailpiece.
Integral coves and recessed flange
Integral coves support drainage, while the recessed flange supports floor tile and provides a grout pocket.
TIG-welded construction
Joints are TIG welded and leakproof.
Brush satin finish
Exposed surfaces are finished in brush satin.
Anchor straps
Anchor straps secure the trough to the floor.
