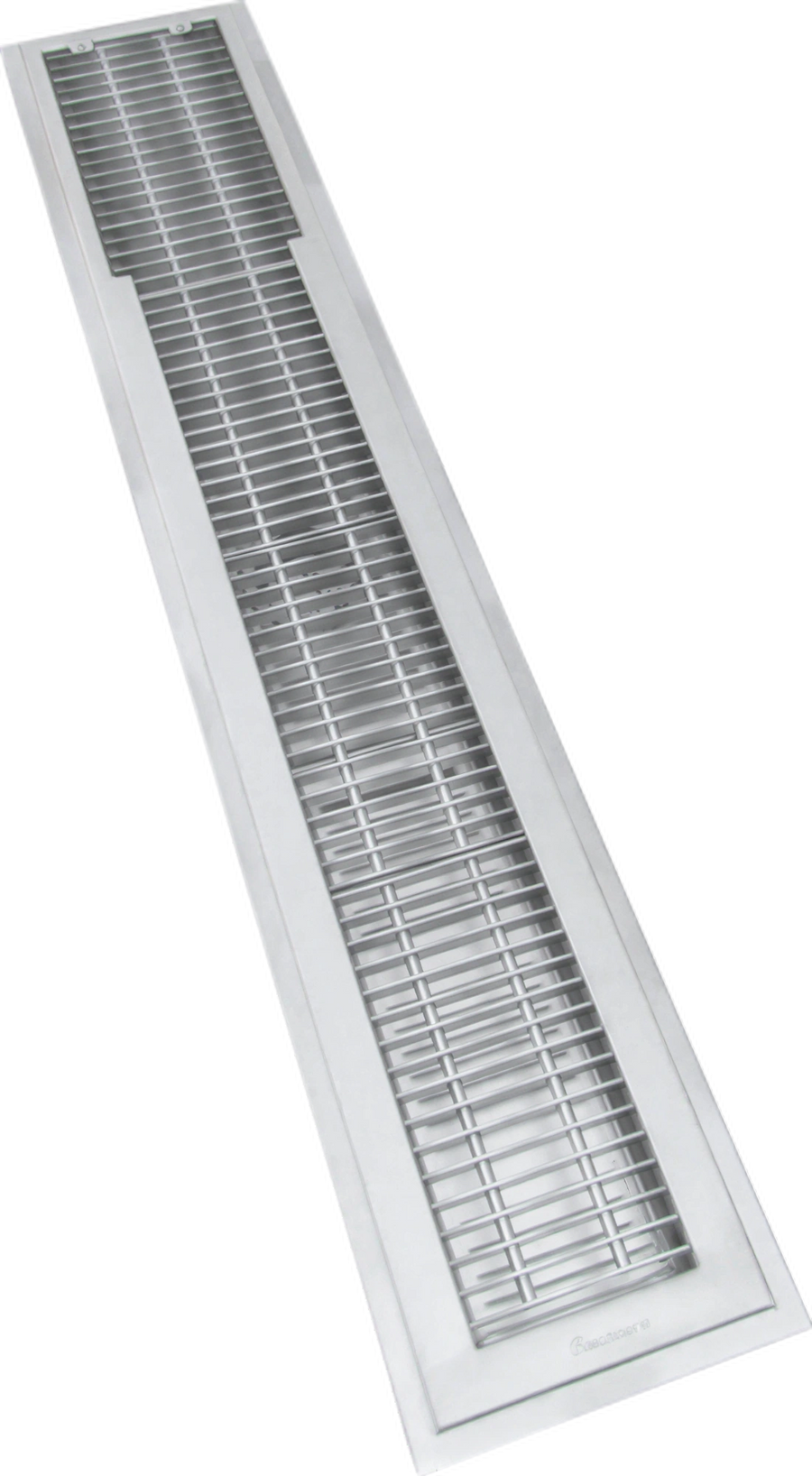

Play manufacturer video for IMC/Teddy SEC-FT30-22-SG-ADA Floor Trough, 264"W x 30"D x 4" Deep, 14 ga 304 Stainless Steel, with Drain, Subway-Style Security GratingIMC/Teddy SEC-FT30-22-SG-ADA Floor Trough, 264"W x 30"D x 4" Deep, 14 ga 304 Stainless Steel, with Drain, Subway-Style Security Grating
The IMC/Teddy SEC-FT30-22-SG-ADA is a security floor trough specified for correctional, penal, and justice buildings. It measures 264 in wide by 30 in deep with a 4 in pan depth and uses a 14 ga type 304 stainless steel trough with a drain.
- Security grating: Includes SG-ADA-SEC security subway grating.
- Drainage: Integral coves and pitch direct water toward the waste outlet.
- Security design: The correctional frame secures the grating, which is held by a locking device with tamperproof screws.
- Construction: Exposed surfaces are finished in brushed satin stainless steel.
Overall Dimensions:
264.0"W x 30.0"D x 4.0"HProduct Weight:
1078.0 lb14 ga type 304 stainless steel trough
The trough is specified as 14 ga type 304 stainless steel.
SG-ADA-SEC security subway grating
The exact product specification identifies SG-ADA-SEC security subway grating.
Security grating frame
A correctional frame secures the grating to the ledge, while a special locking device with tamperproof screws holds it in place.
Drainage design
Integral coves and pitch direct water toward a 6.5 in outside-diameter waste outlet with a 4 in outside-diameter tailpiece.
Perforated waste basket
The waste basket is secured with a tamperproof screw.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
Floor anchoring
Anchor straps secure the trough to the floor.
Brushed satin finish
Exposed surfaces are finished in brushed satin stainless steel.
