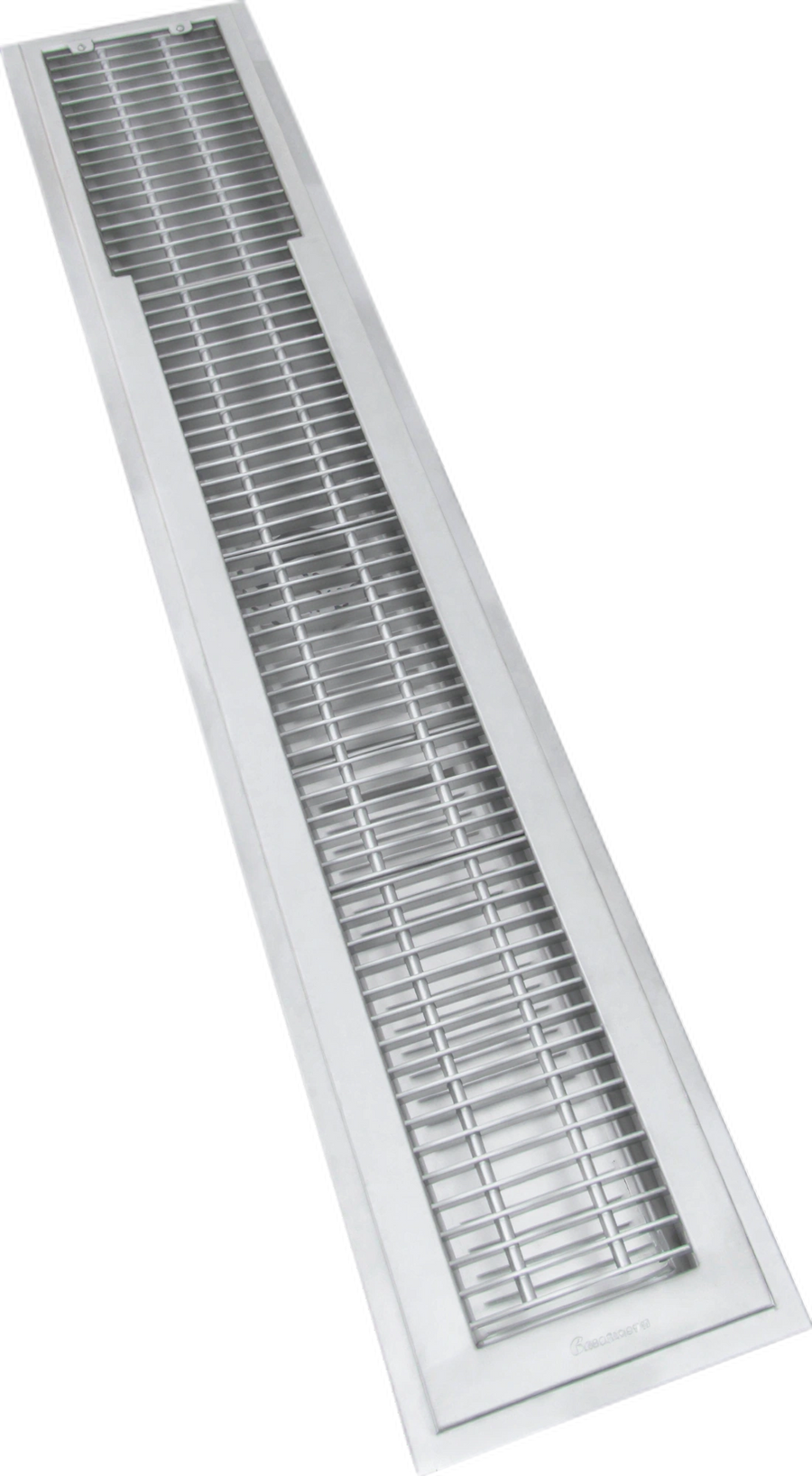

Play manufacturer video for IMC/Teddy SEC-FT30-19-SG Security Floor Trough, 228"W x 30"D x 4" Deep, 14 ga Stainless Steel, Subway GratingIMC/Teddy SEC-FT30-19-SG Security Floor Trough, 228"W x 30"D x 4" Deep, 14 ga Stainless Steel, Subway Grating
IMC/Teddy SEC-FT30-19-SG is a 228-inch-wide, 30-inch-deep security floor trough with a 4-inch trough depth.
The trough is constructed from 14-gauge type 304 stainless steel and includes a drain with SG-SEC security subway grating. Its SEC design includes security grating retention, integral coves, and pitched drainage.
- 14-gauge type 304 stainless steel trough construction
- SG-SEC security subway grating
- 6 1/2-inch OD waste outlet with 4-inch OD tailpiece
- Perforated waste basket secured with a tamperproof screw
- Recessed flange supports floor tile and provides a grout pocket
- TIG-welded, leakproof joints with brushed satin exposed surfaces
Overall Dimensions:
228.0"W x 30.0"D x 4.0"HProduct Weight:
779.0 lbSecurity grating retention
The correctional frame secures the grating to the ledge, and a special locking device with tamperproof screws holds the grating securely.
Stainless steel construction
The trough is made from 14-gauge type 304 stainless steel.
Pitched drainage
Large integral coves and a pitch to the 6 1/2 in OD waste outlet support drainage through the included 4 in OD tailpiece.
Secured waste basket
The perforated waste basket is secured with a tamperproof screw.
Floor integration
A recessed flange supports floor tile and provides a grout pocket.
Welded fabrication
Joints are TIG welded and leakproof, with brushed satin exposed surfaces.
Security applications
The SEC model is designated for correctional, penal, and justice buildings.
