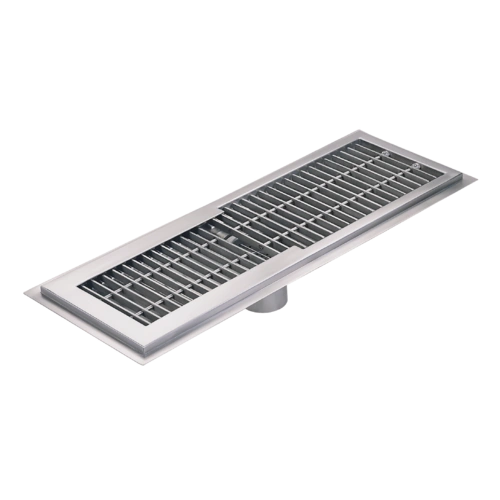

IMC/Teddy SEC-FT30-11-SQ Stainless Steel Security Floor Trough, Square Grid Grating, 132"W x 30"D x 4"H

SKU: SEC-FT30-11-SQ
$10,393.80
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations

The IMC/Teddy SEC-FT30-11-SQ is a security floor trough measuring 132 inches wide, 30 inches deep, and 4 inches high. It is constructed from 14-gauge type 304 stainless steel and is specified with a drain and SQ-SEC security grid grating.

  • Square-grid security grating with stainless steel grate construction
  • Non anti-splash pan design
  • Security frame and locking device with tamperproof screws to secure the grating
  • Perforated waste basket secured with a tamperproof screw
  • Integral coves and pitched drainage toward the waste outlet
  • Recessed flange for floor tile support and a grout pocket
  • TIG-welded, leakproof joints with a brush satin finish on exposed surfaces

Overall Dimensions:

132.0"W x 30.0"D x 4.0"H

Product Weight:

539.0 lb

Type 304 stainless steel construction

The trough is constructed from 14-gauge type 304 stainless steel.

Square-grid security grating

The specified SQ-SEC grating is identified as security grid grating, and category data identifies stainless steel grates.

Secured grating retention

A correctional frame secures the grating to the ledge, while a special locking device with tamperproof screws holds it secure.

Secured perforated waste basket

The perforated waste basket is secured with a tamperproof screw.

Integral coved construction

The security trough design uses large integral coves.

Pitched drainage

The trough is pitched to a 6 1/2-inch outside-diameter waste outlet with a 4-inch outside-diameter tailpiece.

Floor installation support

A recessed flange supports floor tile and provides a grout pocket; anchor straps secure the trough to the floor.

TIG-welded joints

Joints are TIG welded and identified as leakproof, with exposed surfaces finished in brush satin.

Trough type Security floor trough
Overall width 132 in
Overall depth 30 in
Overall height 4 in
Trough construction 14 ga type 304 stainless steel
Grating type Square grid grating
Grating designation SQ-SEC security grid grating
Grating construction Stainless steel grates
Pan type Non anti-splash
Waste outlet 6 1/2 in OD with 4 in OD tailpiece
Product weight 539 lb
Exposed finish Brush satin

Documents

PDF Cutsheet PDF Download PDF Floor troughs brochure PDF Download PDF Seepage flange installation manual PDF Download PDF Floor trough installation manual PDF Download PDF Security brochure PDF Download

Frequently Asked Questions

The security floor trough measures 132 inches wide by 30 inches deep by 4 inches high.
It is made from 14-gauge type 304 stainless steel.
It uses SQ-SEC security grid grating identified as square grid grating, with stainless steel grate construction.
Yes. The authoritative specification lists the product with a drain.
The product is identified as having a non anti-splash pan.
The SEC security floor trough is identified for correctional, penal, and justice buildings.
The product weight is 539 pounds.
