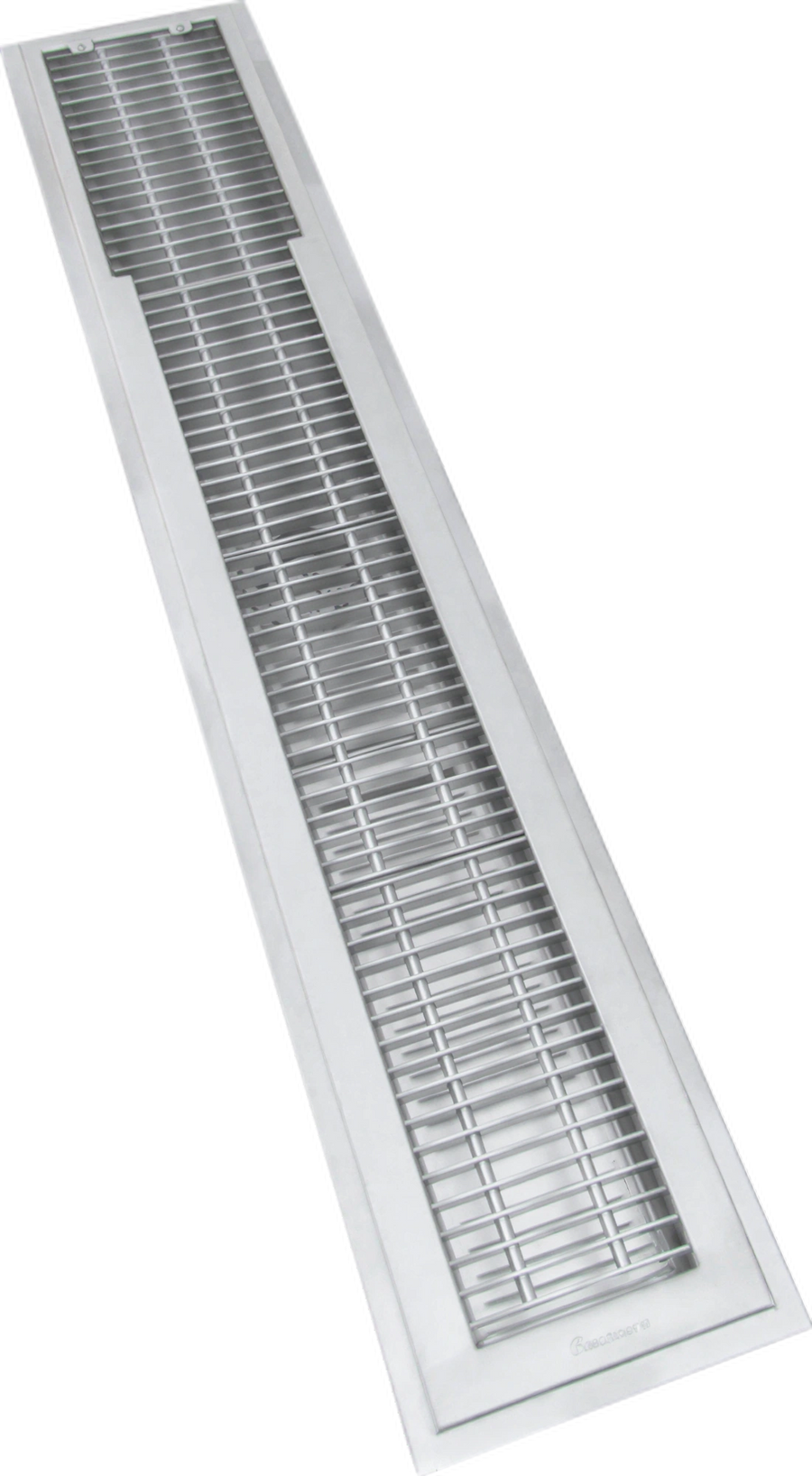

Play manufacturer video for IMC/Teddy SEC-FT24-23-SG-ADA Stainless Steel Security Floor Trough with Drain, 276"W x 24"D x 4"D, Subway GratingIMC/Teddy SEC-FT24-23-SG-ADA Stainless Steel Security Floor Trough with Drain, 276"W x 24"D x 4"D, Subway Grating
The SEC-FT24-23-SG-ADA is a 276 in wide security floor trough constructed of 14-gauge type 304 stainless steel. It has a 24 in short-side depth, 4 in pan depth, a drain, and SG-ADA-SEC security subway grating.
- Integral coves and pitch direct wastewater toward the 6.5 in OD waste outlet.
- The perforated waste basket is secured with a tamperproof screw.
- A correctional frame secures the grating to the ledge, with a special locking device and tamperproof screws.
- Joints are TIG welded and leakproof, with exposed surfaces finished in brushed satin.
Overall Dimensions:
276.0"W x 24.0"D x 4.0"HProduct Weight:
943.0 lbStainless steel construction
The trough is constructed of 14-gauge type 304 stainless steel.
Security grating retention
A correctional frame secures the grating to the ledge, and a special locking device with tamperproof screws holds it securely.
Drainage design
Integral coves and pitch direct wastewater toward a 6.5 in OD waste outlet with a 4 in OD tailpiece.
Perforated waste basket
The perforated waste basket is secured with a tamperproof screw.
Floor integration
A recessed flange supports floor tile and provides a grout pocket.
Floor anchoring
Anchor straps secure the trough to the floor.
Welded construction
Joints are TIG welded and leakproof.
Brushed satin finish
Exposed surfaces are finished in brushed satin.
