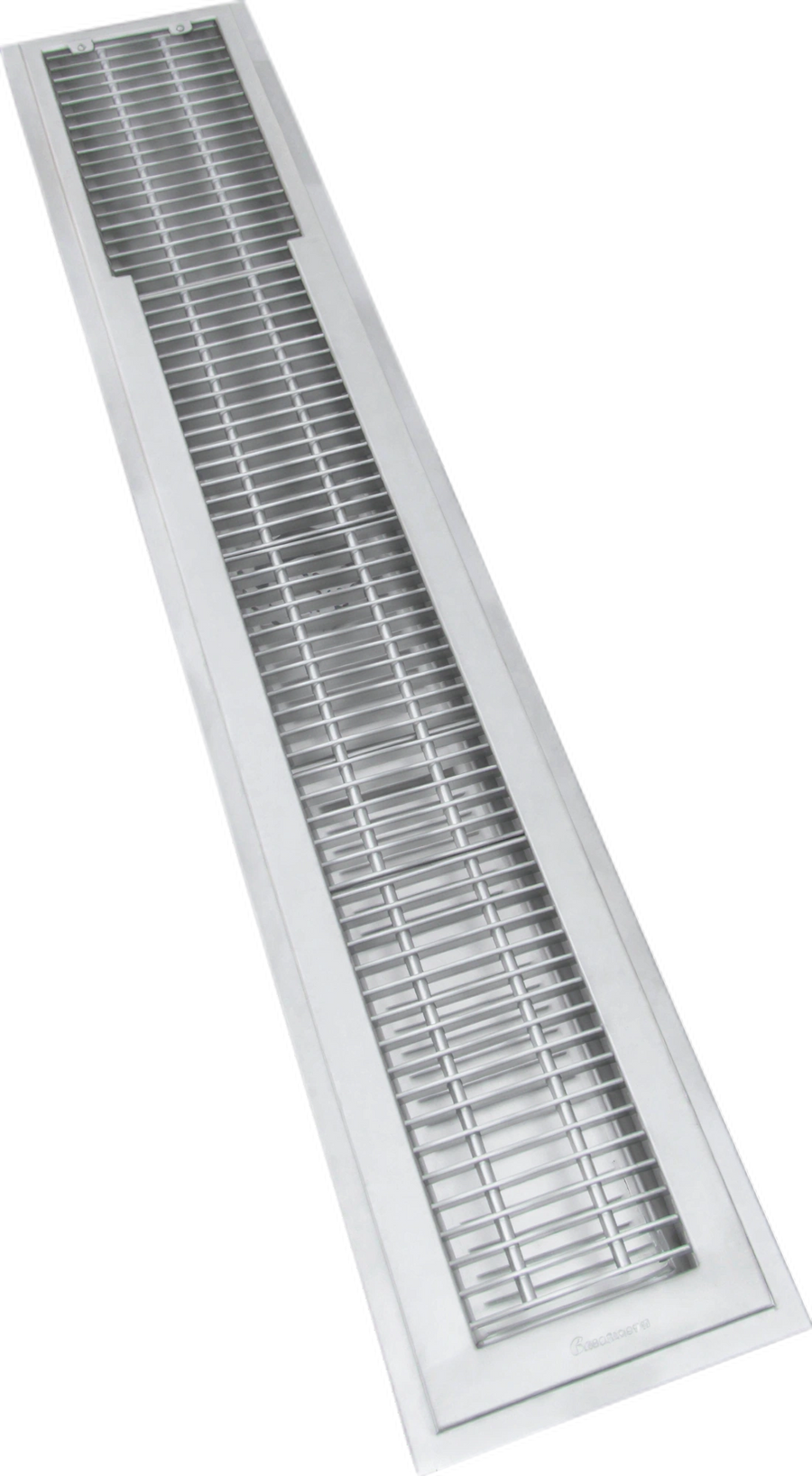

Play manufacturer video for IMC/Teddy SEC-FT24-16-SG-ADA Security Stainless Steel Floor Trough with Subway Grating, 192"W x 24"D x 4" DeepIMC/Teddy SEC-FT24-16-SG-ADA Security Stainless Steel Floor Trough with Subway Grating, 192"W x 24"D x 4" Deep
The IMC/Teddy SEC-FT24-16-SG-ADA is a 192 in wide security floor trough with a 24 in depth and 4 in trough depth. It is specified in 14 ga Type 304 stainless steel with a drain and SG-ADA-SEC security subway grating.
- Non anti-splash pan type.
- Continuous security frame for the grating.
- Security locking device with tamperproof screws.
- Integral coves and pitch toward the waste outlet.
Overall Dimensions:
192.0"W x 24.0"D x 4.0"HProduct Weight:
656.0 lb14 ga Type 304 stainless steel
The trough is specified as 14 ga Type 304 stainless steel.
SG-ADA-SEC security subway grating
The exact product specification identifies SG-ADA-SEC security subway grating.
Security grating retention
The grating slides into a continuous security frame and is held secure by a special locking device with tamperproof screws.
Drain outlet
SEC model troughs are pitched to a 6 1/2 in OD waste outlet with a 4 in OD tailpiece.
Perforated waste basket
The SEC design uses a perforated waste basket secured with a tamperproof screw.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
Anchor straps
Anchor straps secure the trough to the floor.
Non anti-splash pan
