Play manufacturer video for IMC/Teddy SEC-FT18-14-SG Security Floor Trough, 168"W x 18"D x 4" Deep, 14 ga Stainless Steel, Subway GratingIMC/Teddy SEC-FT18-14-SG Security Floor Trough, 168"W x 18"D x 4" Deep, 14 ga Stainless Steel, Subway Grating

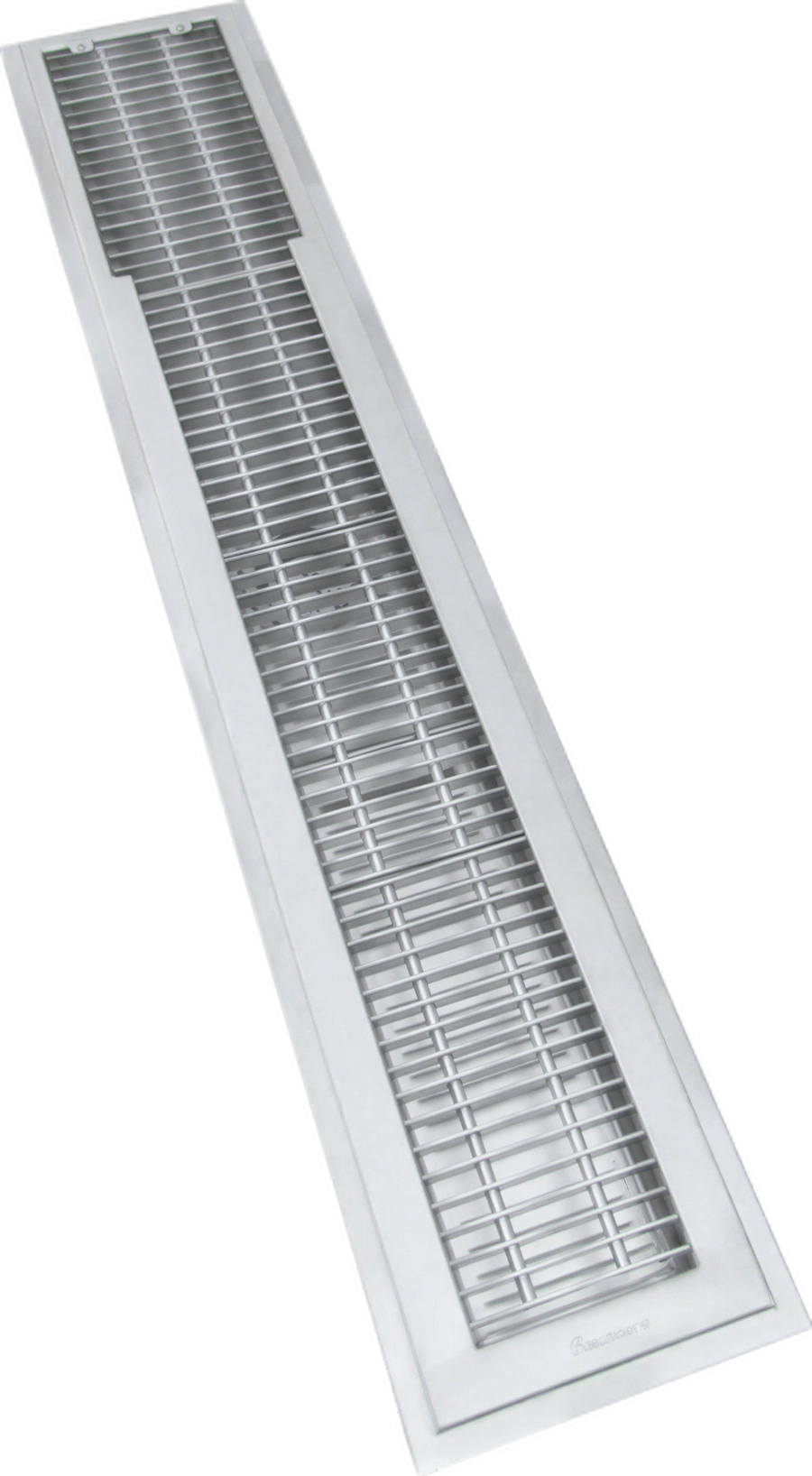

The IMC/Teddy SEC-FT18-14-SG is a security floor trough measuring 168 inches wide, 18 inches deep, and 4 inches overall deep. It is constructed from 14-gauge type 304 stainless steel and includes SG-SEC security subway grating.
- Includes a 6 1/2-inch O.D. waste outlet with 4-inch O.D. tailpiece.
- Security grating is secured by a correctional frame and special locking device with tamperproof screws.
- Integral coves and pitch direct drainage toward the waste outlet.
Overall Dimensions:
168.0"W x 18.0"D x 4.0"HProduct Weight:
378.0 lb304 stainless steel construction
The trough is constructed from 14-gauge type 304 stainless steel.
Security subway grating
The product includes SG-SEC security subway grating constructed from stainless steel grates.
Secured grating frame
A correctional frame secures the grating to the ledge, while a special locking device and tamperproof screws hold it in place.
Drainage design
Integral coves and a pitched trough direct drainage toward the waste outlet.
Waste outlet
The security trough is pitched to a 6 1/2-inch O.D. waste outlet with a 4-inch O.D. tailpiece.
Tamperproof waste basket
The perforated waste basket is secured with a tamperproof screw.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
Welded construction
Joints are TIG welded and identified as leakproof in the product guide.
