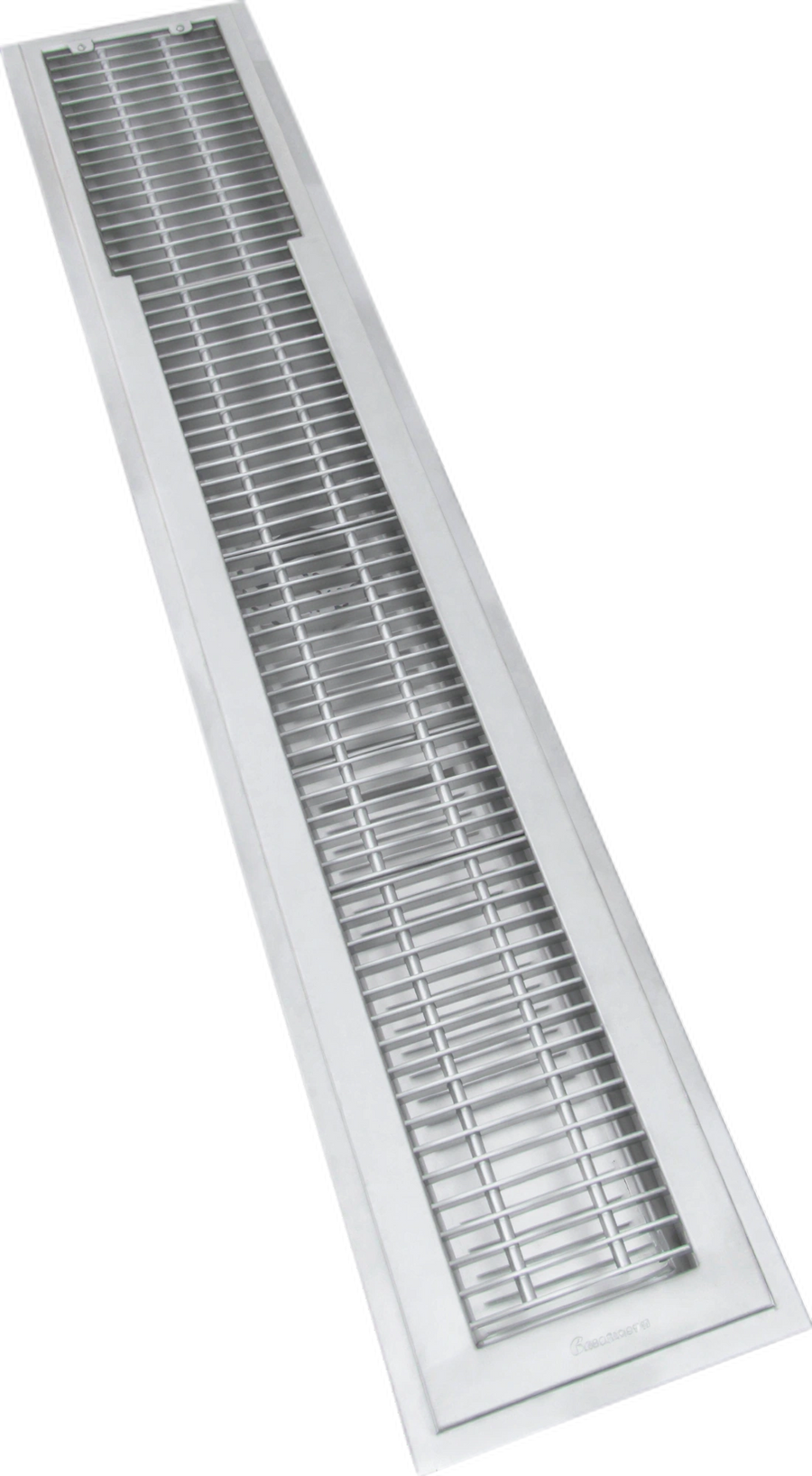

Play manufacturer video for IMC/Teddy SEC-FT-3072-SG-ADA Stainless Steel Security Floor Trough, 72"W x 30"D x 4" Deep, Subway-Style GratingIMC/Teddy SEC-FT-3072-SG-ADA Stainless Steel Security Floor Trough, 72"W x 30"D x 4" Deep, Subway-Style Grating
The IMC/Teddy SEC-FT-3072-SG-ADA is a 72-inch-wide stainless steel security floor trough with a 30-inch depth, 4-inch-deep receptacle, and SG-ADA-SEC security subway grating.
- Construction: 14-gauge type 304 stainless steel with a brushed satin finish.
- Drain assembly: One 6-1/2-inch OD waste outlet with a perforated waste basket and 4-inch OD tailpiece.
- Security features: Anchor straps and a locking device welded to the trough for securing the grating.
Overall Dimensions:
72.0"W x 30.0"D x 12.25"HProduct Weight:
396.0 lbSecurity subway grating
SG-ADA-SEC stainless steel security subway grating is specified for the trough.
Grating locking device
A locking device is welded to the trough to secure the grating.
Stainless steel construction
The trough is constructed from 14-gauge type 304 stainless steel.
Waste outlet assembly
Includes one 6-1/2 in OD waste outlet, a perforated waste basket, and a 4 in OD tailpiece.
Anchor straps
Anchor straps are included for securing the trough to the floor.
Brushed satin finish
Exposed surfaces have a brushed satin finish.
ADA grating spacing
The SG-ADA grating specification uses compliant grating bars spaced 1/2 in apart.
