Play manufacturer video for IMC/Teddy SEC-FT-2196-SG-ADA Stainless Steel Security Floor Trough, 96"W x 21"D, 4" Deep, Subway-Style GratingIMC/Teddy SEC-FT-2196-SG-ADA Stainless Steel Security Floor Trough, 96"W x 21"D, 4" Deep, Subway-Style Grating
SKU: SEC-FT-2196-SG-ADA
$8,922.00
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout

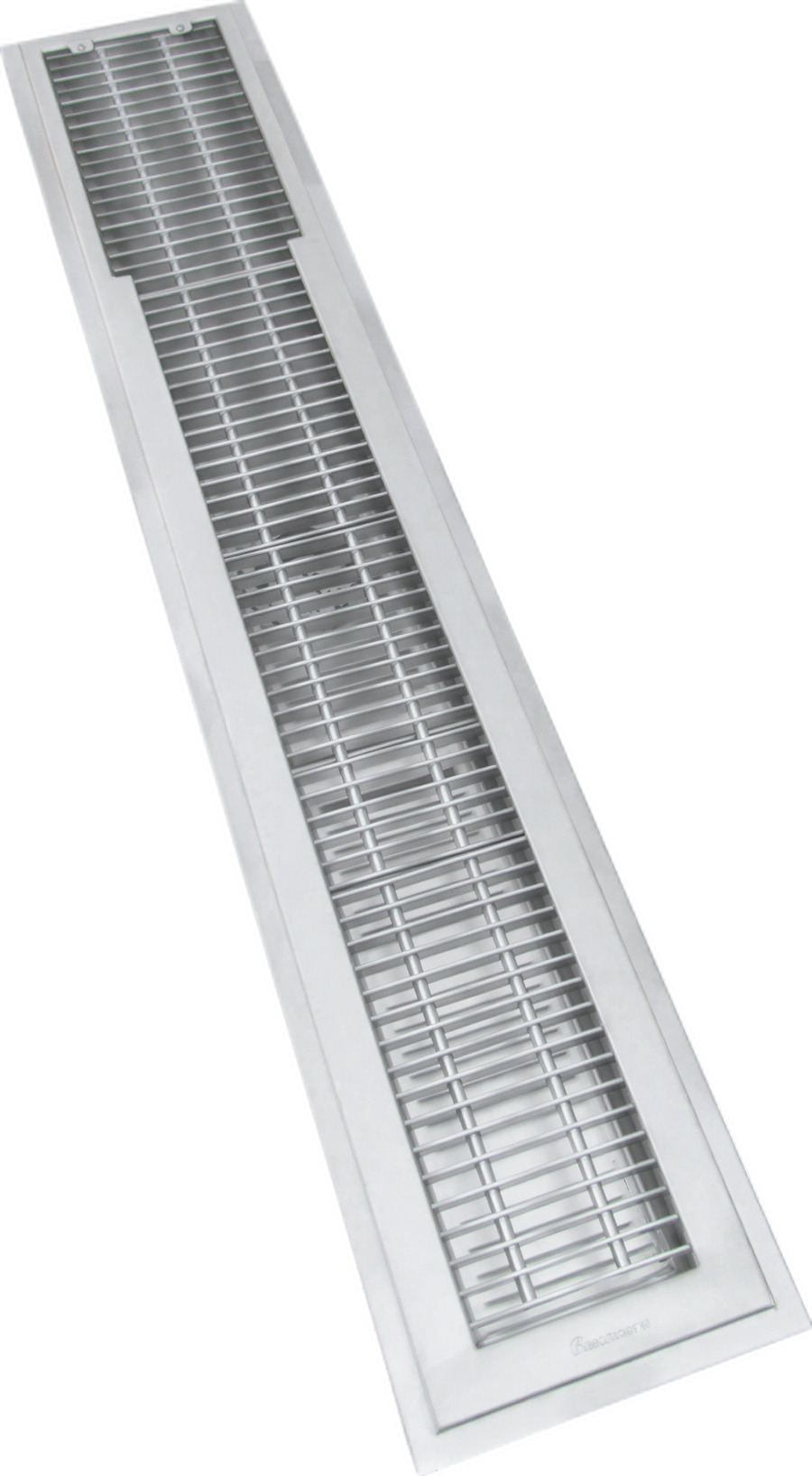

The SEC-FT-2196-SG-ADA is a 96-inch stainless steel security floor trough with a 4-inch deep receptacle and SG-ADA-SEC security subway grating.
- Constructed from 14-gauge type 304 stainless steel with a brushed satin finish.
- Includes a 6-1/2-inch waste outlet, 4-inch OD tailpiece, perforated waste basket, anchor straps, and a welded grating locking device.
- Specified certifications and origin include NSF and Made in USA.
Overall Dimensions:
96.0"W x 21.0"D x 12.25"HProduct Weight:
408.0 lbType 304 stainless steel construction
The trough is constructed from 14-gauge type 304 stainless steel.
Security subway-style grating
Includes SG-ADA-SEC security subway grating with a welded locking device on the trough.
Waste outlet and tailpiece
Includes a 6-1/2-inch waste outlet and 4-inch OD tailpiece.
Perforated waste basket
A perforated waste basket is included with the trough.
Floor anchoring
Anchor straps are included.
Brushed satin finish
Exposed surfaces have a brushed satin finish.
Receptacle depth
4 in
Construction
14-gauge type 304 stainless steel
Finish
Brushed satin
Grating type
SG-ADA-SEC security subway-style grating
Pan type
Non anti-splash
Waste outlet
6-1/2 in
Tailpiece
4 in OD
Waste basket
Perforated
Grating locking device
Welded on trough
Anchor straps
Included
Certifications & Compliance
Frequently Asked Questions
The trough measures 96 inches wide, 21 inches deep, and 12.25 inches high.
The receptacle is 4 inches deep.
The trough is made from 14-gauge type 304 stainless steel and has a brushed satin finish.
The product includes a 6-1/2-inch waste outlet, 4-inch OD tailpiece, and perforated waste basket.
A locking device is welded on the trough for the grating.
The product specifications identify NSF and Made in USA.
