IMC/Teddy

IMC/Teddy SEC-FT-1230-SG-ADA Security Stainless Steel Floor Trough, 30"W x 12"D, 4" Deep, Subway-Style Grating

SKU: SEC-FT-1230-SG-ADA
$3,256.80
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations

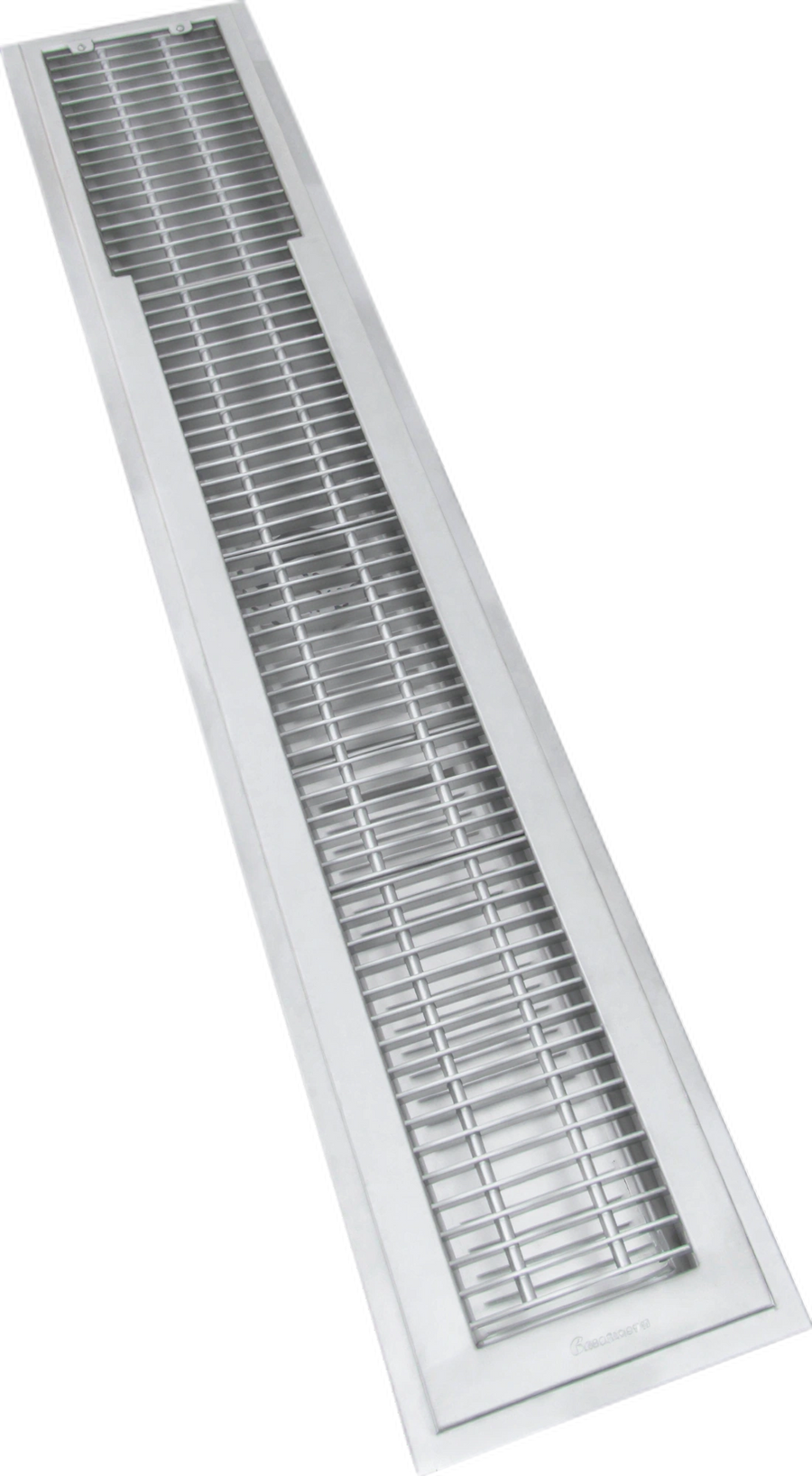

The IMC/Teddy SEC-FT-1230-SG-ADA is a 30 in. wide by 12 in. deep stainless steel floor trough with a 4 in. deep receptacle.

It features 14-gauge Type 304 stainless steel construction, a brushed satin finish, SG-ADA-SEC security subway grating, anchor straps, and a welded locking device for the grating.

  • One 6-1/2 in. waste outlet
  • Perforated waste basket
  • 4 in. OD tailpiece

Made in USA and NSF are specified for this product.

Overall Dimensions:

30.0"W x 12.0"D x 12.25"H

Product Weight:

72.5 lb

Security subway grating

Includes SG-ADA-SEC security subway grating.

Welded grating locking device

A locking device is welded on the trough for the grating.

Drainage assembly

Includes one 6-1/2 in. waste outlet, a perforated waste basket, and a 4 in. OD tailpiece.

Stainless steel construction

Constructed from 14-gauge Type 304 stainless steel.

Anchor straps

Anchor straps are included.

Brushed satin finish

Exposed surfaces have a brushed satin finish.

Trough construction 14 gauge Type 304 stainless steel
Receptacle depth 4 in.
Grating type SG-ADA-SEC security subway grating
Grating construction Stainless steel grates
Pan type Non anti-splash
Waste outlet 1 x 6-1/2 in.
Tailpiece 4 in. OD
Waste basket Perforated
Anchor straps Included
Grating locking device Welded on trough
Finish Brushed satin

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Security brochure PDF Download PDF Floor troughs brochure PDF Download PDF Floor trough installation manual PDF Download PDF Seepage flange installation manual PDF Download

Frequently Asked Questions

The trough is 30 in. wide, 12 in. deep, and 12.25 in. high.
The receptacle is 4 in. deep.
The product includes SG-ADA-SEC security subway grating.
The product has one 6-1/2 in. waste outlet, a perforated waste basket, and a 4 in. OD tailpiece.
A locking device welded on the trough secures the grating.
It is constructed from 14-gauge Type 304 stainless steel and has a brushed satin finish.
Yes. Anchor straps are included.
